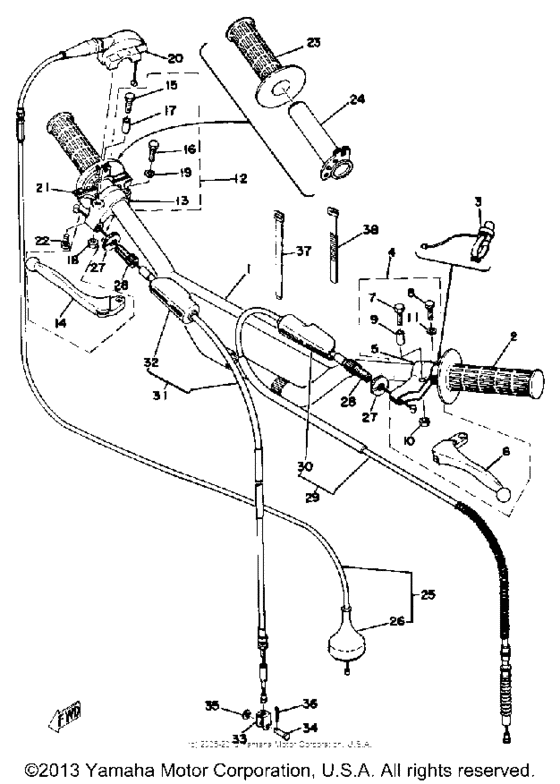

Handle-wire Diagram Yamaha YZ400 YZ400
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- YZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509-26111-00-00
Handlebar
|
509-26111-00-00 |
— | ||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
363-83976-01-00
Switch, Handle 1
|
363-83976-01-00 |
— | ||
|
4
|
4
214-82910-07-00
Lever Holder Assembly 1 (214-82
214-82 |
214-82910-07-00 |
— | ||
|
5
|
5
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
6
|
6
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $10.10 |
||
|
7
|
7
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
7
|
7
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
8
|
8
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
8
|
8
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
9
|
9
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
10
|
10
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
233-83920-03-00
New Genuine Part
IN PRICE BOOK |
233-83920-03-00 |
— | ||
|
13
|
13
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
14
|
14
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
15
|
15
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
15
|
15
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
16
|
16
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
16
|
16
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
17
|
17
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
18
|
18
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
431-26281-01-98
Cap, Grip Upper (431-26281-01)
431-26281-01 |
431-26281-01-98 |
— | ||
|
21
|
21
431-26282-01-98 Cap, Grip Lower |
431-26282-01-98 |
from US $41.67 |
||
| replacements | |||||
|
21
|
21
431-26282-02-00 Cap, Grip Under |
431-26282-02-00 |
from US $41.40 |
||
|
21
|
21
431-26282-03-00 Cap, Grip Under |
431-26282-03-00 |
from US $41.83 |
||
|
22
|
22
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
22
|
22
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
23
|
23
583-26242-00-00 Grip Rh (R.h.)RH R.H. |
583-26242-00-00 |
from US $31.17 |
||
|
24
|
24
431-26243-00-00
Tube, Thrtl Guide
|
431-26243-00-00 |
— | ||
|
25
|
25
510-26311-00-00
Cable, Throttle 1 (1363Mm)
1363MM |
510-26311-00-00 |
— | ||
|
26
|
26
510-26329-00-00 Cap, Rubber |
510-26329-00-00 |
from US $25.36 |
||
| replacement | |||||
|
26
|
26
510-26329-01-00 |
510-26329-01-00 |
from US $10.78 |
||
|
27
|
27
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
27
|
27
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
28
|
28
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
28
|
28
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
29
|
29
509-26335-00-00
Cable, Clutch (1245Mm)
1245MM |
509-26335-00-00 |
— | ||
|
30
|
30
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
30
|
30
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
31
|
31
509-26341-00-00
Cable, Brake (1200Mm)
1200MM |
509-26341-00-00 |
— | ||
|
32
|
32
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
32
|
32
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
33
|
33
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
34
|
34
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
35
|
35
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
36
|
36
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
36
|
36
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
37
|
37
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
37
|
37
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
37
|
37
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
38
|
38
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
