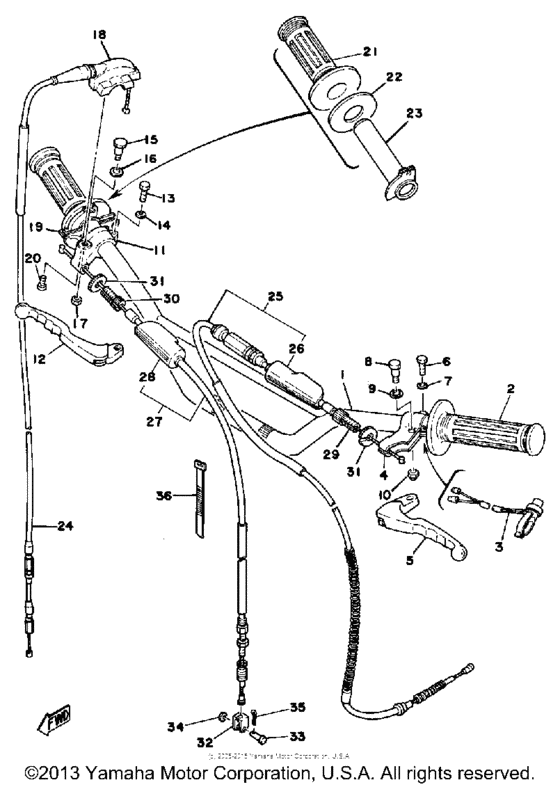

Handle-wire Diagram Yamaha YZ400 YZ400
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- YZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X4-26111-01-00 Handlebar |
2X4-26111-01-00 |
from US $99.50 |
||
| replacement | |||||
|
1
|
1
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
23X-83976-00-00 Switch, Handle 1 |
23X-83976-00-00 |
from US $35.92 |
||
| replacement | |||||
|
3
|
3
23X-83976-01-00 Switch, Handle 1 |
23X-83976-01-00 |
from US $41.81 |
||
|
4
|
4
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
5
|
5
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
5
|
5
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
6
|
6
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
6
|
6
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
8
|
8
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
9
|
9
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
10
|
10
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
11
|
11
516-82921-30-00 Holder, Lever 2 |
516-82921-30-00 |
US $71.14 |
||
|
12
|
12
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
12
|
12
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $20.54 |
||
|
13
|
13
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
13
|
13
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
15
|
15
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
16
|
16
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
17
|
17
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
18
|
18
431-26281-01-98
Cap, Grip Upper (431-26281-01)
431-26281-01 |
431-26281-01-98 |
— | ||
|
19
|
19
431-26282-01-98 Cap, Grip Lower |
431-26282-01-98 |
from US $41.67 |
||
| replacements | |||||
|
19
|
19
431-26282-02-00 Cap, Grip Under |
431-26282-02-00 |
from US $41.40 |
||
|
19
|
19
431-26282-03-00 Cap, Grip Under |
431-26282-03-00 |
from US $41.83 |
||
|
20
|
20
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
20
|
20
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
21
|
21
583-26242-00-00 Grip Rh (R.h.)RH R.H. |
583-26242-00-00 |
from US $31.17 |
||
|
22
|
22
1W1-26249-00-00
Ring, Leaf
|
1W1-26249-00-00 |
— | ||
|
23
|
23
431-26243-00-00
Tube, Thrtl Guide
|
431-26243-00-00 |
— | ||
|
24
|
24
2K8-26311-01-00 Throttle Cable 1 (1130Mm)1130MM |
2K8-26311-01-00 |
from US $36.25 |
||
|
25
|
25
2K7-26335-00-00
Cable, Clutch (1150Mm)
1150MM |
2K7-26335-00-00 |
— | ||
|
26
|
26
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
26
|
26
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
27
|
27
1W4-26341-02-00 Cable, Brake (1230Mm)1230MM |
1W4-26341-02-00 |
US $52.96 |
||
|
28
|
28
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
28
|
28
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
29
|
29
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
29
|
29
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
29
|
29
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
30
|
30
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
31
|
31
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
31
|
31
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
32
|
32
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
33
|
33
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
34
|
34
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
35
|
35
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
35
|
35
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
36
|
36
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
