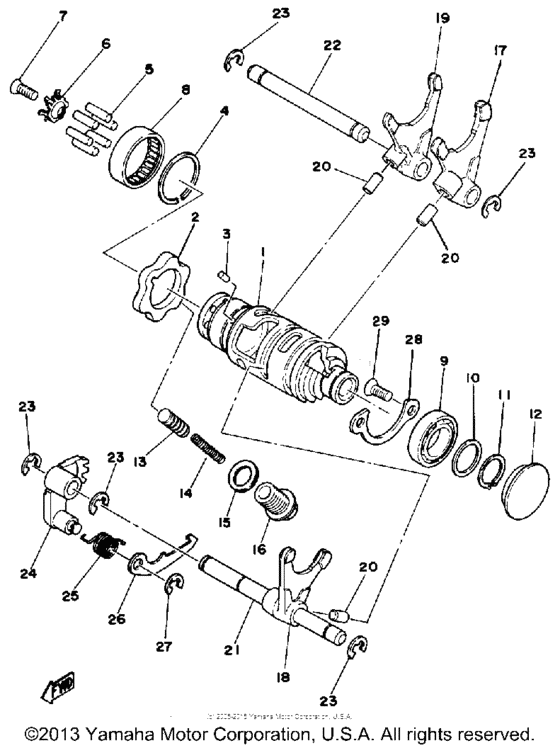

Shift cam-fork Diagram Yamaha YZ400 YZ400
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- YZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X5-18540-00-00
Shift Cam Assembly
|
2X5-18540-00-00 |
— | ||
|
2
|
2
2K7-18141-00-00
Plate, Stopper
|
2K7-18141-00-00 |
— | ||
|
3
|
3
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
4
|
4
93440-32017-00 Circlip, Outer (32V Special)32V SPECIAL |
93440-32017-00 |
US $6.77 |
||
|
5
|
5
93604-18100-00 Pin, Dowel |
93604-18100-00 |
from US $1.84 |
||
|
6
|
6
2K9-18561-00-00 Plate, Side 1 |
2K9-18561-00-00 |
from US $7.23 |
||
|
7
|
7
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
7
|
7
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.36 |
||
|
8
|
8
93315-23208-00 Bearing |
93315-23208-00 |
from US $12.33 |
||
|
9
|
9
93306-90403-00 Bearing |
93306-90403-00 |
from US $25.64 |
||
|
10
|
10
902-01206-13-00
Washer, Plate
|
902-01206-13-00 |
— | ||
|
11
|
11
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
12
|
12
903-38320-86-00
Plug, Spec''l Shape
|
903-38320-86-00 |
— | ||
|
13
|
13
353-18547-00-00
Stopper, Cam
|
353-18547-00-00 |
— | ||
|
14
|
14
90501-10062-00 Spring Compression278185570000 |
90501-10062-00 |
from US $1.70 |
||
|
15
|
15
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
16
|
16
90109-14485-00 Bolt |
90109-14485-00 |
from US $8.86 |
||
|
17
|
17
2X5-18511-00-00
Fork, Shift 1
|
2X5-18511-00-00 |
— | ||
|
18
|
18
2X5-18512-00-00
Fork, Shift 2
|
2X5-18512-00-00 |
— | ||
|
19
|
19
2X5-18513-00-00
Fork, Shift 3
|
2X5-18513-00-00 |
— | ||
|
20
|
20
93606-14154-00 Pin, Dowel |
93606-14154-00 |
from US $3.26 |
||
|
21
|
21
2K7-18531-00-00
No Longer Available
|
2K7-18531-00-00 |
— | ||
|
22
|
22
2K7-18535-01-00
Bar, Shif Frk Gde 2
|
2K7-18535-01-00 |
— | ||
|
23
|
23
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
24
|
24
2K7-18122-01-00
Lever, Shift 2 (2K7-18122-00)
2K7-18122-00 |
2K7-18122-01-00 |
— | ||
|
25
|
25
905-08103-86-00
Spring, Torsion
|
905-08103-86-00 |
— | ||
|
26
|
26
2K7-18151-00-00 Lever, Shift 3 |
2K7-18151-00-00 |
from US $10.63 |
||
|
27
|
27
99080-07600-00 Clip |
99080-07600-00 |
from US $1.77 |
||
|
28
|
28
2K7-15381-00-00
Plate, Brng Cover
|
2K7-15381-00-00 |
— | ||
|
29
|
29
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
