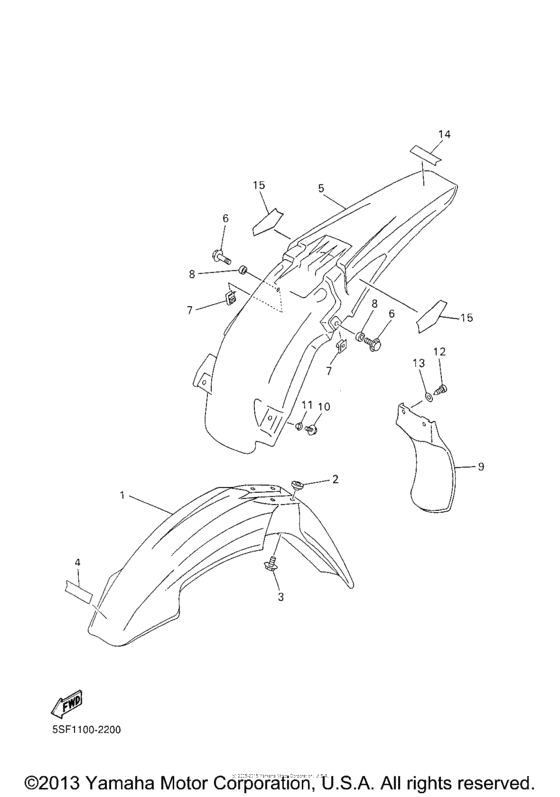

Fender Diagram Yamaha YZ426F
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 426
- Model
- YZ426F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HD-21511-00-00 Fender, Front |
5HD-21511-00-00 |
from US $48.65 |
||
|
2
|
2
3JD-21748-00-00 Collar |
3JD-21748-00-00 |
from US $7.08 |
||
|
3
|
3
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
3
|
3
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
4
|
4
4ES-2153E-01-00
Emblem, Yamaha
|
4ES-2153E-01-00 |
— | ||
| replacement | |||||
|
4
|
4
4ES-2153E-02-00 Emblem, Yamaha |
4ES-2153E-02-00 |
from US $6.51 |
||
|
5
|
5
5BE-21611-10-00 Fender, Rear |
5BE-21611-10-00 |
from US $76.18 |
||
|
6
|
6
901-05065-53-00
Bolt, Flange
|
901-05065-53-00 |
— | ||
| replacement | |||||
|
6
|
6
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
7
|
7
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
8
|
8
903-87070-1A-00 Collar |
903-87070-1A-00 |
from US $1.84 |
||
|
9
|
9
5BE-21642-00-00 Guard, Flap |
5BE-21642-00-00 |
from US $16.72 |
||
|
10
|
10
90105-06690-00 Bolt, Flange |
90105-06690-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
11
|
11
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
12
|
12
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
13
|
13
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
14
|
14
4ES-2153E-01-00
Emblem, Yamaha
|
4ES-2153E-01-00 |
— | ||
| replacement | |||||
|
14
|
14
4ES-2153E-02-00 Emblem, Yamaha |
4ES-2153E-02-00 |
from US $6.51 |
||
|
15
|
15
5SF-2163G-00-00 Emblem 1 |
5SF-2163G-00-00 |
US $12.92 |
||
