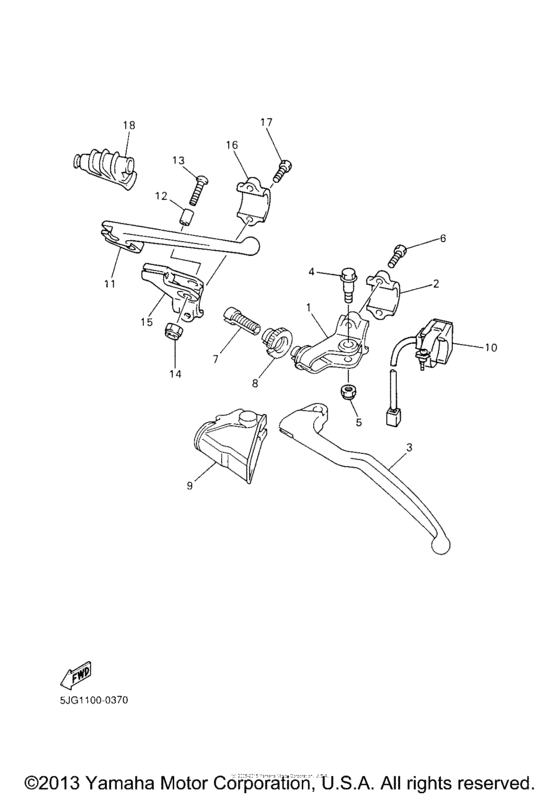

Handle switch & lever Diagram Yamaha YZ426F
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 426
- Model
- YZ426F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HD-82911-00-00 Holder, Lever 1 |
5HD-82911-00-00 |
from US $24.70 |
||
|
2
|
2
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $5.06 |
||
|
3
|
3
5MV-83912-00-00
Lever 1
|
5MV-83912-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5MV-83912-01-00 Lever 1 |
5MV-83912-01-00 |
from US $26.78 |
||
|
4
|
4
90109-06027-00 Bolt |
90109-06027-00 |
from US $5.24 |
||
|
5
|
5
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
6
|
6
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
7
|
7
5HD-26337-00-00 Bolt, Adjusting |
5HD-26337-00-00 |
from US $10.13 |
||
|
8
|
8
5HD-83951-00-00 Bolt, Cable Adjusting |
5HD-83951-00-00 |
from US $30.79 |
||
|
9
|
9
5HD-26372-00-00 Cover, Handle Lever 1 |
5HD-26372-00-00 |
from US $7.76 |
||
|
10
|
10
5SF-83976-00-00 Switch, Handle 1 |
5SF-83976-00-00 |
US $56.64 |
||
|
11
|
11
583-83981-00-00 Lever, Decompression |
583-83981-00-00 |
from US $18.99 |
||
|
12
|
12
5BE-83913-00-00 Collar, Lever 1 |
5BE-83913-00-00 |
from US $2.83 |
||
|
13
|
13
98907-05020-00 Screw, Binding |
98907-05020-00 |
from US $1.66 |
||
|
14
|
14
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
14
|
14
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
15
|
15
5BE-82912-00-00 Holder, Lever Upper 1 |
5BE-82912-00-00 |
from US $32.30 |
||
|
16
|
16
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $5.06 |
||
|
17
|
17
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
17
|
17
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
18
|
18
583-26352-00-00 Cover, Decompression Cable |
583-26352-00-00 |
from US $16.15 |
||
