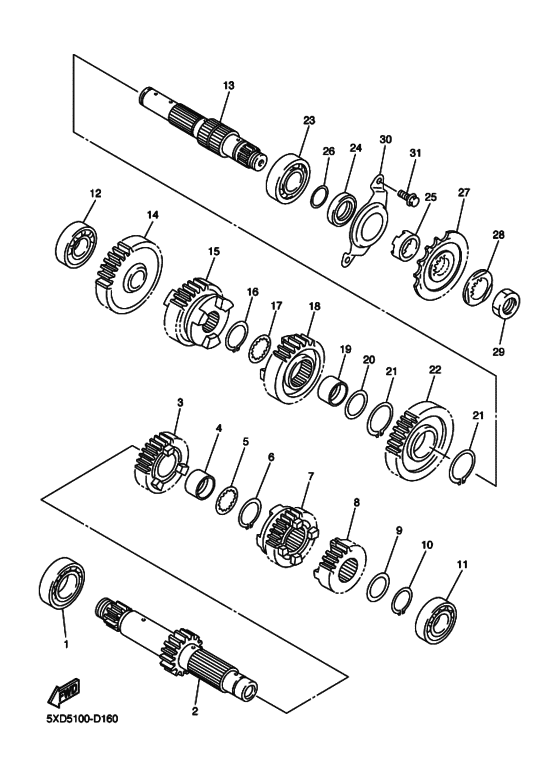

Transmission Diagram Yamaha YZ450F YZ450F
- Year
- 2005
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5XD8
- Sales region
- Europe (020)
- Базовая модель
- YZ450F YZ450FT
- Engine Capacity
- 450
- Color Variant
- A
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93306-20532-00 Bearing |
93306-20532-00 |
from US $26.63 |
||
|
2
|
2
5TA-17411-20-00 Axle, Main (14T)14T |
5TA-17411-20-00 |
from US $146.45 |
||
|
3
|
3
5TA-17141-20-00 Gear, 4Th Pinion (20T)4TH PINION 20T |
5TA-17141-20-00 |
from US $68.94 |
||
|
4
|
4
90387-25008-00 Collar |
90387-25008-00 |
from US $10.63 |
||
|
5
|
5
90209-21332-00 Washer |
90209-21332-00 |
from US $8.30 |
||
|
6
|
6
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
7
|
7
5TA-17131-20-00 Gear, 3Rd Pinion (18T)3RD PINION 18T |
5TA-17131-20-00 |
from US $105 |
||
|
8
|
8
5TA-17121-10-00 Gear, 2Nd Pinion (16T)2ND PINION 16T |
5TA-17121-10-00 |
from US $59.55 |
||
|
9
|
9
90201-206L6-00 Washer, Plate |
90201-206L6-00 |
from US $3.74 |
||
|
10
|
10
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
11
|
11
93306-00431-00 Bearing |
93306-00431-00 |
from US $21.92 |
||
|
12
|
12
93306-00426-00 Bearing (5Y1) |
93306-00426-00 |
from US $12.06 |
||
| replacement | |||||
|
12
|
12
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.48 |
||
|
13
|
13
5TA-17402-10-00 Drive Axle Assy |
5TA-17402-10-00 |
from US $125.07 |
||
|
14
|
14
5TA-17211-10-00 Gear, 1St Wheel (27T)1ST WHEEL 27T |
5TA-17211-10-00 |
from US $51.06 |
||
|
15
|
15
5TA-17241-10-00 Gear, 4Th Wheel (21T)4TH WHEEL 21T |
5TA-17241-10-00 |
from US $103.07 |
||
|
16
|
16
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
17
|
17
90209-21332-00 Washer |
90209-21332-00 |
from US $8.30 |
||
|
18
|
18
5TA-17231-10-00 Gear, 3Rd Wheel (23T)3RD WHEEL 23T |
5TA-17231-10-00 |
from US $77.23 |
||
|
19
|
19
90387-25013-00 Collar |
90387-25013-00 |
from US $11.33 |
||
|
20
|
20
90201-253G3-00 Washer, Plate |
90201-253G3-00 |
from US $1.77 |
||
|
21
|
21
93440-30077-00 Circlip |
93440-30077-00 |
from US $1.70 |
||
|
22
|
22
5TA-17221-10-00
Gear, 2Nd Wheel (25T)
2ND WHEEL 25T |
5TA-17221-10-00 |
— | ||
|
23
|
23
93306-20593-00 Bearing |
93306-20593-00 |
from US $53.47 |
||
|
24
|
24
93102-32480-00 Oil Seal |
93102-32480-00 |
from US $6.51 |
||
|
25
|
25
90387-2513F-00 Collar |
90387-2513F-00 |
from US $21.96 |
||
|
26
|
26
93210-22164-00 O-Ring |
93210-22164-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
93210-22298-00 O-Ring |
93210-22298-00 |
from US $1.39 |
||
|
27
|
27
9383E-14215-00 Sprocket,drive (14T)14T |
9383E-14215-00 |
from US $27.74 |
||
|
28
|
28
90215-21003-00 Washer, Lock |
90215-21003-00 |
from US $4.03 |
||
|
29
|
29
90179-20001-00 Nut |
90179-20001-00 |
from US $13.45 |
||
|
30
|
30
5GR-17471-00-00 Plate, Cover |
5GR-17471-00-00 |
from US $5.92 |
||
| replacement | |||||
|
30
|
30
5GR-17471-10-00 Plate, Cover |
5GR-17471-10-00 |
from US $11.75 |
||
|
31
|
31
901-05065-53-00
Bolt, Flange
|
901-05065-53-00 |
— | ||
| replacement | |||||
|
31
|
31
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
