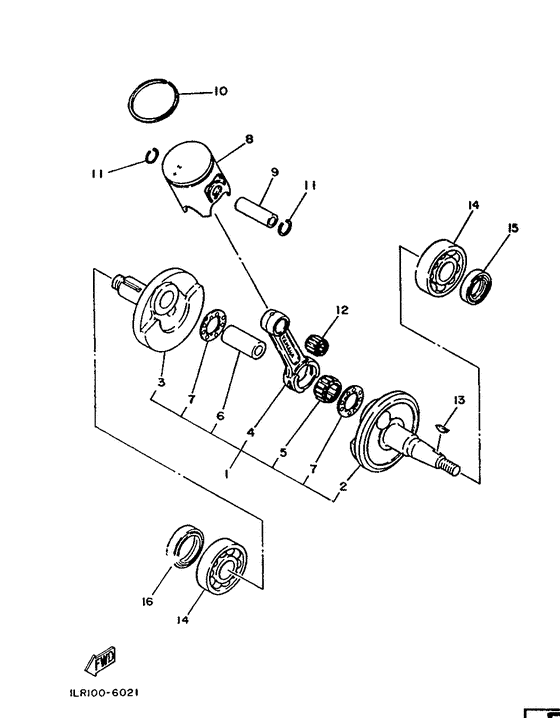

Crankshaft & Piston Diagram Yamaha YZ80
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 2HF
- Sales region
- North America (999)
- Engine Capacity
- 80
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1LR-11400-00-00
Crankshaft Assembly
|
1LR-11400-00-00 |
— | ||
|
02
|
02
39K-11412-00-00
Crank 1
|
39K-11412-00-00 |
— | ||
|
03
|
03
39K-11422-00-00
Crank 2
|
39K-11422-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
1LR-11651-00-00
Rod, Connecting
|
1LR-11651-00-00 |
— | ||
|
05
|
05
933-10418-M6-00
Bearing, Cylinder.#10
|
933-10418-M6-00 |
— | ||
|
06
|
06
4V0-11681-00-00
Pin, Crank 1
|
4V0-11681-00-00 |
— | ||
|
07
|
07
90209-18112-00 Washer |
90209-18112-00 |
from US $3.72 |
||
|
08
|
08
58T-11631-01-94
Piston Std (58T-11631-00-94)
Ur |
58T-11631-01-94 |
— | ||
|
08
|
08
58T-11631-01-95
Piston (Std)
Ur |
58T-11631-01-95 |
— | ||
| replacement | |||||
|
08
|
08
58T-11631-01-94
Piston Std (58T-11631-00-94)
Ur |
58T-11631-01-94 |
— | ||
|
08
|
08
58T-11635-10-00 Piston (0.25Mm O/s)Ap |
58T-11635-10-00 |
US $144.86 |
||
| replacement | |||||
|
08
|
08
58T-11635-11-00 Piston (0.25Mm O/s)Ap |
58T-11635-11-00 |
US $144.86 |
||
|
08
|
08
58T-11636-20-00
Piston (0.50Mm O/s)
Ap |
58T-11636-20-00 |
— | ||
|
09
|
09
4V1-11633-00-00 Pin, Piston |
4V1-11633-00-00 |
from US $12.65 |
||
|
10
|
10
39K-11611-20-00
Ring, Piston 2Nd
Ap |
39K-11611-20-00 |
— | ||
|
10
|
10
39K-11611-00-00 Ring, PistonStd |
39K-11611-00-00 |
from US $24.38 |
||
|
10
|
10
39K-11611-10-00
Ring, Piston 1St
Ap |
39K-11611-10-00 |
— | ||
|
11
|
11
5X2-11634-00-00 Clip, Piston Pin |
5X2-11634-00-00 |
from US $2.55 |
||
| replacement | |||||
|
11
|
11
93450-13130-00 Circlip |
93450-13130-00 |
from US $2.02 |
||
|
12
|
12
93310-312M5-00 Bearing, Cylinder.#10 |
93310-312M5-00 |
US $33.01 |
||
|
13
|
13
902-80030-45-00
Key, Woodruff
|
902-80030-45-00 |
— | ||
| replacement | |||||
|
13
|
13
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
14
|
14
93306-20454-00 Bearing |
93306-20454-00 |
from US $28.19 |
||
| replacement | |||||
|
14
|
14
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
15
|
15
93102-20231-00 Oil Seal |
93102-20231-00 |
from US $8.46 |
||
| replacement | |||||
|
15
|
15
931-02204-47-00 Oil Seal |
931-02204-47-00 |
from US $4.72 |
||
|
16
|
16
93103-28126-00 Oil Seal |
93103-28126-00 |
from US $7.65 |
||
| replacement | |||||
|
16
|
16
93103-28011-00 Oil Seal, Sw-Type (93103-28100) |
93103-28011-00 |
from US $7.49 |
||
