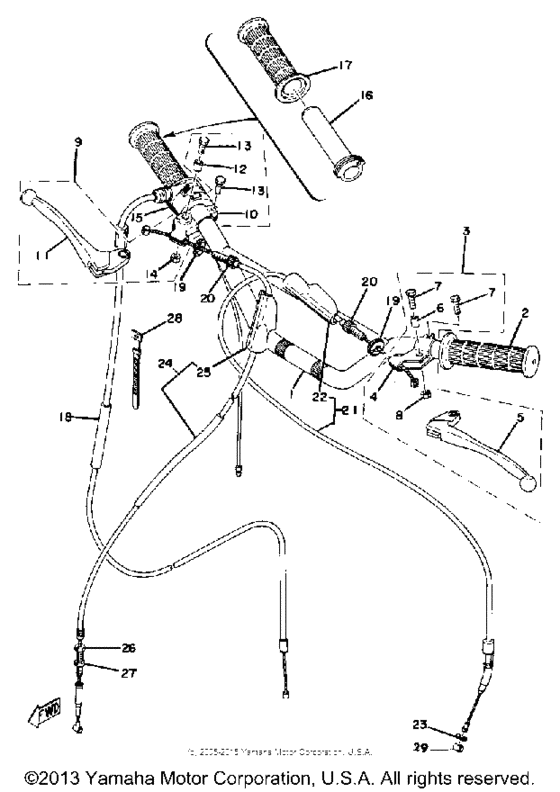

Handle - wire Diagram Yamaha YZ80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
598-26111-00-00
Handlebar
|
598-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
462-26241-00-00
Grip (L.h.)
|
462-26241-00-00 |
— | ||
|
3
|
3
214-82910-07-00
Lever Holder Assembly 1 (214-82
214-82 |
214-82910-07-00 |
— | ||
|
4
|
4
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
5
|
5
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $10.10 |
||
|
6
|
6
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
7
|
7
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
7
|
7
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
8
|
8
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
9
|
9
233-82920-32-00
Lever Holder Assembly 2
|
233-82920-32-00 |
— | ||
|
10
|
10
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
11
|
11
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
12
|
12
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
13
|
13
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
13
|
13
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
1R6-83976-01-00 Switch, Handle 1 |
1R6-83976-01-00 |
from US $28.62 |
||
|
16
|
16
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
17
|
17
462-26242-00-00
Grip (R.h.)
|
462-26242-00-00 |
— | ||
|
18
|
18
1T0-26311-00-00
Cable, Throttle 1
|
1T0-26311-00-00 |
— | ||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
20
|
20
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
20
|
20
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
20
|
20
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
21
|
21
598-26335-01-00
Cable, clutch
|
598-26335-01-00 |
— | ||
|
22
|
22
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
22
|
22
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
24
|
24
598-26341-00-00
Cable, Brake
|
598-26341-00-00 |
— | ||
|
25
|
25
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
25
|
25
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
26
|
26
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
27
|
27
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
28
|
28
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
29
|
29
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
