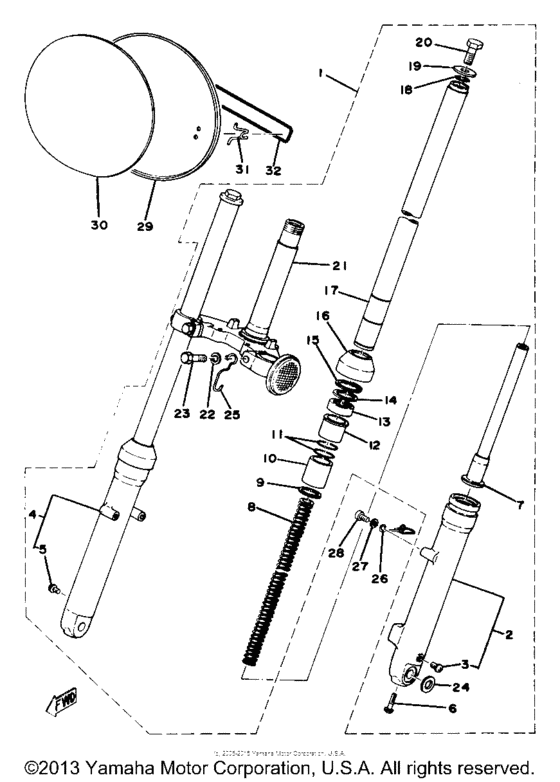

Front fork Diagram Yamaha YZ80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T0-23101-00-00
Front Fork Assembly
|
1T0-23101-00-00 |
— | ||
|
2
|
2
1T0-23126-00-00
Tube, Outer 1
|
1T0-23126-00-00 |
— | ||
|
3
|
3
451-23119-01-00
Plug, Drain
|
451-23119-01-00 |
— | ||
|
4
|
4
1T0-23136-00-00
Tube, Outer 2
|
1T0-23136-00-00 |
— | ||
|
5
|
5
451-23119-01-00
Plug, Drain
|
451-23119-01-00 |
— | ||
|
6
|
6
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
6
|
6
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
7
|
7
462-23170-02-00
Cylinder Comp., Front Fork
|
462-23170-02-00 |
— | ||
|
8
|
8
1T0-23141-10-00
Spring, Front Fork
|
1T0-23141-10-00 |
— | ||
|
8
|
8
1T0-23141-00-00
Spring, Front Fork
|
1T0-23141-00-00 |
— | ||
|
9
|
9
462-23183-02-00 Circlip |
462-23183-02-00 |
US $7.56 |
||
|
10
|
10
462-23171-02-00
Piston, Front Fork
|
462-23171-02-00 |
— | ||
|
11
|
11
462-23157-02-00
Ring, Piston
|
462-23157-02-00 |
— | ||
|
12
|
12
462-23125-02-00
Metal, Slide 1
|
462-23125-02-00 |
— | ||
|
13
|
13
462-23145-02-00 Oil Seal (5R6)5R6 |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
13
|
13
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
14
|
14
462-23146-02-00
Washer, Oil Seal
|
462-23146-02-00 |
— | ||
|
15
|
15
462-23156-02-00
Clip, Oil Seal
|
462-23156-02-00 |
— | ||
|
16
|
16
462-23144-02-00
Seal, Dust
|
462-23144-02-00 |
— | ||
|
17
|
17
1T0-23124-00-00
Tube, Inner 1
|
1T0-23124-00-00 |
— | ||
|
18
|
18
462-23114-02-00
Gasket
|
462-23114-02-00 |
— | ||
|
19
|
19
276-23112-50-00
Washer, Cap
|
276-23112-50-00 |
— | ||
|
20
|
20
205-23111-40-00 Bolt, Cap |
205-23111-40-00 |
from US $11.65 |
||
|
21
|
21
598-23340-00-00
Under Bracket
|
598-23340-00-00 |
— | ||
|
22
|
22
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
23
|
23
451-23346-01-00 Bolt 1 |
451-23346-01-00 |
from US $8.64 |
||
|
24
|
24
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
25
|
25
434-23319-00-00
Holder, Cable 2
|
434-23319-00-00 |
— | ||
|
26
|
26
462-23318-00-00
Holder, Cable 1
|
462-23318-00-00 |
— | ||
|
27
|
27
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
28
|
28
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
28
|
28
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
29
|
29
598-23485-00-00
Plate, Number
|
598-23485-00-00 |
— | ||
|
30
|
30
462-23395-00-00
Emblem
|
462-23395-00-00 |
— | ||
|
31
|
31
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
32
|
32
288-23489-00-00
Band
|
288-23489-00-00 |
— | ||
