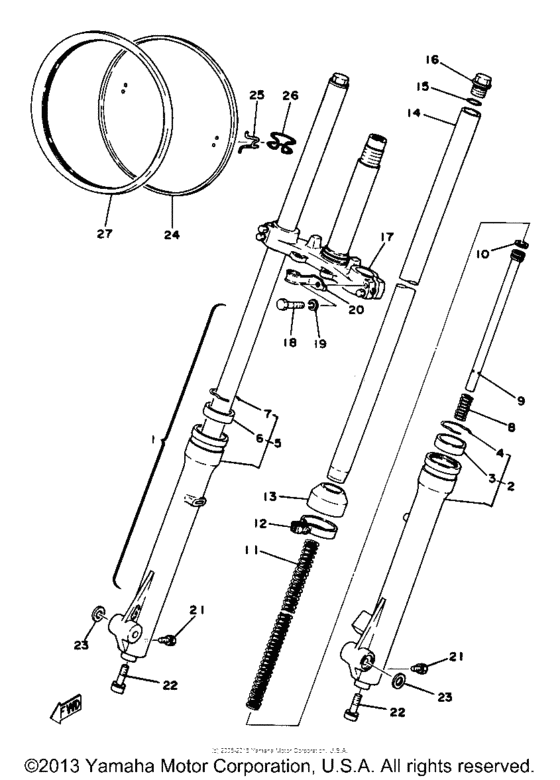

Front fork Diagram Yamaha YZ80
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 800
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J5-23101-00-00
Front Fork Assembly
|
2J5-23101-00-00 |
— | ||
|
1
|
1
2J5-23141-70-00
Spring, Front Fork
|
2J5-23141-70-00 |
— | ||
|
2
|
2
2J5-23130-00-38
Fork Unit Assembly
|
2J5-23130-00-38 |
— | ||
|
3
|
3
462-23145-02-00 Oil Seal (5R6)5R6 |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
3
|
3
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
4
|
4
2J5-23156-00-00
Ring, Snap
|
2J5-23156-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
2J5-23140-00-38
Fork Unit Assembly 2
|
2J5-23140-00-38 |
— | ||
|
6
|
6
462-23145-02-00 Oil Seal (5R6)5R6 |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
6
|
6
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
7
|
7
2J5-23156-00-00
Ring, Snap
|
2J5-23156-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
2J5-23151-00-00 Spring, Rebound |
2J5-23151-00-00 |
from US $5.10 |
||
|
9
|
9
2J5-23143-00-00
Seat, Spring Lower
|
2J5-23143-00-00 |
— | ||
|
10
|
10
2J5-23157-00-00 Ring, Piston |
2J5-23157-00-00 |
from US $9.21 |
||
|
11
|
11
2J5-23141-00-00
Spring, Front Fork
|
2J5-23141-00-00 |
— | ||
|
12
|
12
2J5-23318-00-00
Holder, Cable 1
|
2J5-23318-00-00 |
— | ||
|
13
|
13
462-23144-02-00
Seal, Dust
|
462-23144-02-00 |
— | ||
|
14
|
14
2J5-23110-00-00
Inner Tube 1
|
2J5-23110-00-00 |
— | ||
|
15
|
15
2J5-23147-00-00 O-Ring |
2J5-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
93210-17570-00 O-Ring |
93210-17570-00 |
from US $1.70 |
||
|
16
|
16
2J5-23111-00-00
Bolt, Cap
|
2J5-23111-00-00 |
— | ||
|
17
|
17
2J5-23340-60-33
Under Bracket
|
2J5-23340-60-33 |
— | ||
|
18
|
18
2A6-23346-00-00 Bolt |
2A6-23346-00-00 |
from US $4.68 |
||
| replacement | |||||
|
18
|
18
970-24080-35-00 Bolt |
970-24080-35-00 |
from US $4.68 |
||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
2J5-23317-01-00
Holder, Cable
|
2J5-23317-01-00 |
— | ||
|
21
|
21
2A6-23119-00-00 Plug, Drain |
2A6-23119-00-00 |
from US $9.49 |
||
|
22
|
22
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
23
|
23
462-23392-02-00 Washer, Special |
462-23392-02-00 |
US $5.83 |
||
|
24
|
24
2J5-23485-00-00
Plate, Number
|
2J5-23485-00-00 |
— | ||
|
25
|
25
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
26
|
26
2J5-23489-00-00
Band
|
2J5-23489-00-00 |
— | ||
|
27
|
27
2J5-23498-00-00
Mold, Number Plate
|
2J5-23498-00-00 |
— | ||
