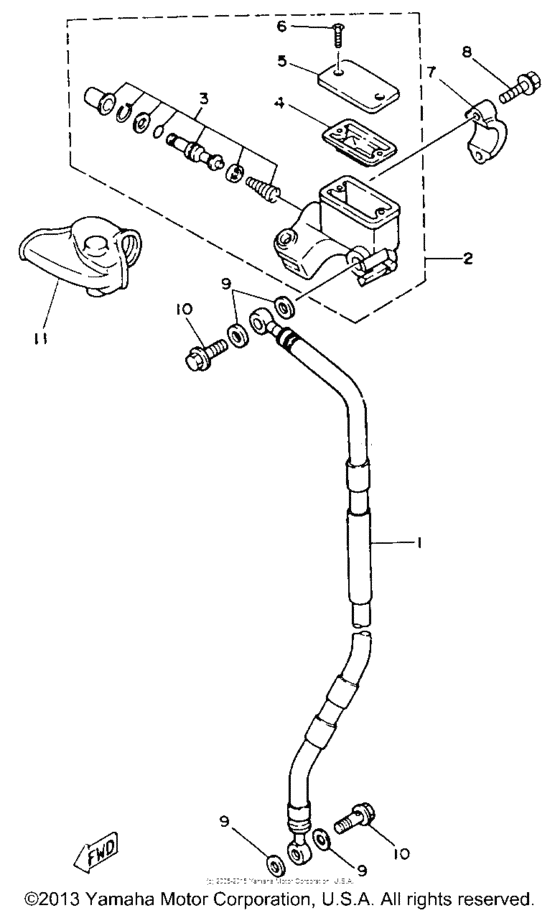

Front master cylinder Diagram Yamaha YZ80
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 80
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ES-25872-00-00
Hose,brake 1
|
4ES-25872-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99029-72-00
Hose, Brake 1
|
999-99029-72-00 |
— | ||
|
2
|
2
2VN-25870-01-00
Master Cylinder Sub Assembly
|
2VN-25870-01-00 |
— | ||
|
3
|
3
56A-W0041-00-00 Cylinder Kit, Master |
56A-W0041-00-00 |
from US $58.86 |
||
|
4
|
4
56A-25854-00-00 Gasket, Diaphragm |
56A-25854-00-00 |
from US $17.14 |
||
|
5
|
5
2VN-25852-01-00 Cap, Reservoir |
2VN-25852-01-00 |
from US $13.84 |
||
| replacement | |||||
|
5
|
5
2VN-25852-02-00 Cap, Reservoir |
2VN-25852-02-00 |
from US $17.77 |
||
|
6
|
6
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
6
|
6
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
7
|
7
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
8
|
8
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
8
|
8
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
8
|
8
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
9
|
9
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
9
|
9
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
10
|
10
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
56A-26372-01-00 Cover, Handle Lever 1 |
56A-26372-01-00 |
from US $22.10 |
||
