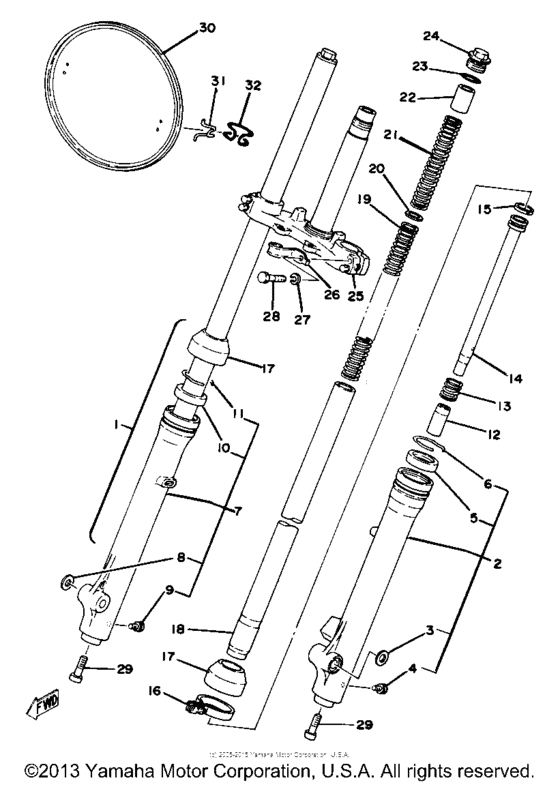

Front fork Diagram Yamaha YZ80
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 800
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X6-23101-00-00
Front Fork Assembly
|
2X6-23101-00-00 |
— | ||
|
2
|
2
2X6-23130-00-38
Fork Unit Assembly
|
2X6-23130-00-38 |
— | ||
|
3
|
3
462-23392-02-00 Washer, Special |
462-23392-02-00 |
US $5.83 |
||
|
4
|
4
2A6-23119-00-00 Plug, Drain |
2A6-23119-00-00 |
from US $9.49 |
||
|
5
|
5
4V1-23145-L0-00 Oil Seal, Swo-Type |
4V1-23145-L0-00 |
from US $11.62 |
||
| replacement | |||||
|
5
|
5
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
6
|
6
1E7-23156-00-00 Clip, Oil Seal |
1E7-23156-00-00 |
from US $3.26 |
||
|
7
|
7
2X6-23140-00-38
Fork Unit Assembly 2
|
2X6-23140-00-38 |
— | ||
|
8
|
8
462-23392-02-00 Washer, Special |
462-23392-02-00 |
US $5.83 |
||
|
9
|
9
2A6-23119-00-00 Plug, Drain |
2A6-23119-00-00 |
from US $9.49 |
||
|
10
|
10
4V1-23145-L0-00 Oil Seal, Swo-Type |
4V1-23145-L0-00 |
from US $11.62 |
||
| replacement | |||||
|
10
|
10
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
11
|
11
1E7-23156-00-00 Clip, Oil Seal |
1E7-23156-00-00 |
from US $3.26 |
||
|
12
|
12
1L9-23166-00-00 Taper, Spindle |
1L9-23166-00-00 |
US $15.58 |
||
|
13
|
13
2X6-23151-00-00 Spring, Rebound |
2X6-23151-00-00 |
US $3.26 |
||
|
14
|
14
2X6-23143-00-00
Seat, Spring Lower
|
2X6-23143-00-00 |
— | ||
|
15
|
15
1E7-23157-00-00 Ring, Piston Front Fork |
1E7-23157-00-00 |
from US $8.80 |
||
|
16
|
16
2J5-23318-00-00
Holder, Cable 1
|
2J5-23318-00-00 |
— | ||
|
17
|
17
4V1-23144-L0-00
Seal, Dust
|
4V1-23144-L0-00 |
— | ||
|
18
|
18
2X6-23110-00-00
Inner Tube 1
|
2X6-23110-00-00 |
— | ||
|
19
|
19
2X6-23141-00-00
Spring, Front Fork
FOR SOFT SPRING |
2X6-23141-00-00 |
— | ||
|
19
|
19
2X6-23141-70-00
Spring, Front Fork
|
2X6-23141-70-00 |
— | ||
|
20
|
20
2X6-23142-00-00
Seat, Spring Upper
|
2X6-23142-00-00 |
— | ||
|
21
|
21
2X6-23351-00-00
Spring
FOR SOFT SPRING |
2X6-23351-00-00 |
— | ||
|
21
|
21
2X6-23351-70-00
Spring
|
2X6-23351-70-00 |
— | ||
|
22
|
22
2X6-23113-00-00
Collar
FOR SOFT SPRING |
2X6-23113-00-00 |
— | ||
|
22
|
22
2X6-23113-70-00
Collar
|
2X6-23113-70-00 |
— | ||
|
23
|
23
1E7-23114-00-00
Gasket
|
1E7-23114-00-00 |
— | ||
|
24
|
24
2X6-23111-00-00
Bolt, Cap
|
2X6-23111-00-00 |
— | ||
|
25
|
25
2X6-23340-60-90
Under Bracket
|
2X6-23340-60-90 |
— | ||
|
26
|
26
2J5-23317-01-00
Holder, Cable
|
2J5-23317-01-00 |
— | ||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
28
|
28
2A6-23346-00-00 Bolt |
2A6-23346-00-00 |
from US $4.68 |
||
| replacement | |||||
|
28
|
28
970-24080-35-00 Bolt |
970-24080-35-00 |
from US $4.68 |
||
|
29
|
29
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
30
|
30
2X6-23485-00-00
Plate, Number
|
2X6-23485-00-00 |
— | ||
|
31
|
31
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
32
|
32
2J5-23489-00-00
Band
|
2J5-23489-00-00 |
— | ||
