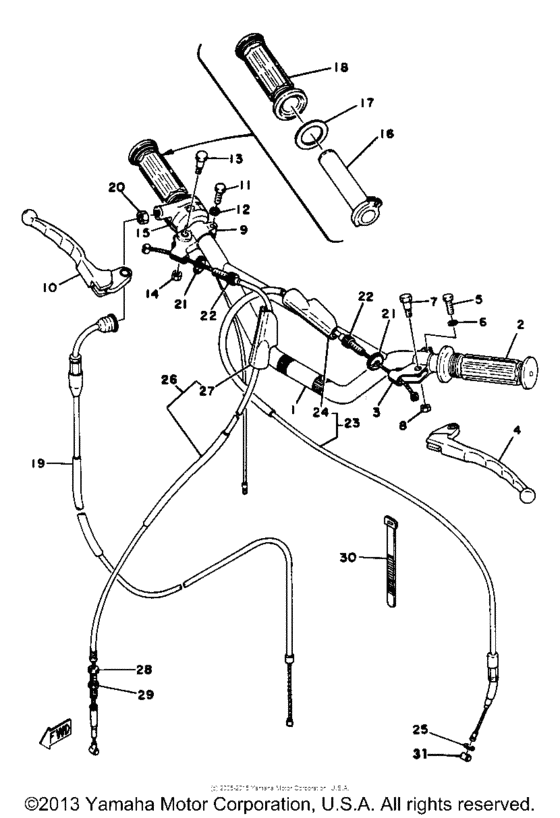

Handle wire Diagram Yamaha YZ80
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 800
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ES-26111-10-00
Handlebar
|
4ES-26111-10-00 |
— | ||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
4
|
4
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
4
|
4
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
5
|
5
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
5
|
5
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
7
|
7
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
8
|
8
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
9
|
9
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
10
|
10
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
10
|
10
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $20.54 |
||
|
11
|
11
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
11
|
11
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
13
|
13
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
2X6-82310-10-00
Ignition Coil Assembly
|
2X6-82310-10-00 |
— | ||
|
16
|
16
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
17
|
17
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
18
|
18
1A0-26242-01-00 Grip Rh (R.h.)RH |
1A0-26242-01-00 |
from US $10.44 |
||
|
19
|
19
2J5-26311-01-00
Cable, Throttle 1
|
2J5-26311-01-00 |
— | ||
|
20
|
20
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
21
|
21
2J5-26341-00-00
Cable, Brake
|
2J5-26341-00-00 |
— | ||
|
22
|
22
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
22
|
22
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
22
|
22
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
23
|
23
598-26335-01-00
Cable, clutch
|
598-26335-01-00 |
— | ||
|
24
|
24
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
24
|
24
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
25
|
25
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
26
|
26
2J5-26341-00-00
Cable, Brake
|
2J5-26341-00-00 |
— | ||
|
27
|
27
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
27
|
27
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
28
|
28
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
29
|
29
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
30
|
30
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
31
|
31
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
