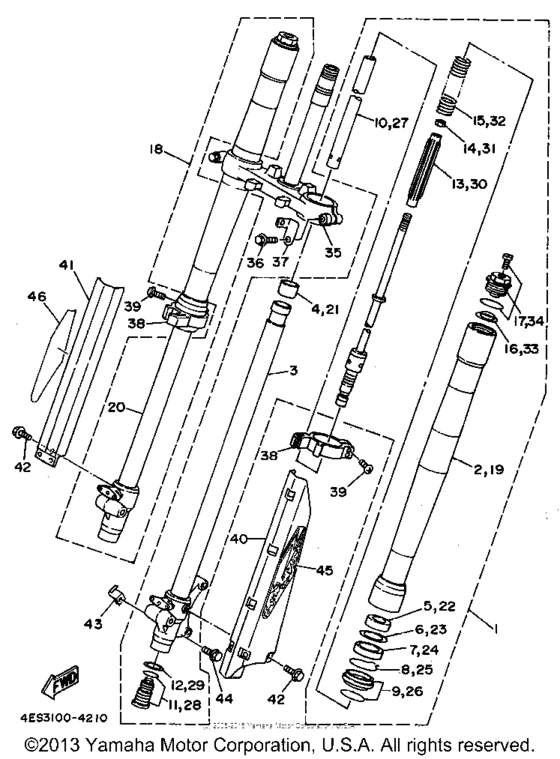

Front fork Diagram Yamaha YZ80
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 80
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ES-23102-00-00 Front Fork Assembly (L.h)UR |
4ES-23102-00-00 |
US $499.63 |
||
| replacement | |||||
|
1
|
1
4ES-23102-10-00
Front Fork Assembly (L.h)
UR |
4ES-23102-10-00 |
— | ||
|
2
|
2
4ES-23136-00-00
Tube, Outer
|
4ES-23136-00-00 |
— | ||
|
3
|
3
4ES-23120-00-00 Inner Tube Comp.2 |
4ES-23120-00-00 |
US $522.86 |
||
|
4
|
4
4ES-23171-00-00 Piston, Front Fork |
4ES-23171-00-00 |
US $19.01 |
||
|
5
|
5
4ES-23125-00-00 Metal, Slide 1 |
4ES-23125-00-00 |
from US $20.97 |
||
|
6
|
6
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
7
|
7
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
8
|
8
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
9
|
9
4ES-23144-00-00 Seal, Dust |
4ES-23144-00-00 |
from US $14.59 |
||
|
10
|
10
4ES-23170-00-00
Cylinder Comp., Front Fork
|
4ES-23170-00-00 |
— | ||
|
11
|
11
4ES-2316A-00-00
Valve Comp
|
4ES-2316A-00-00 |
— | ||
|
12
|
12
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
13
|
13
4ES-23142-00-00 Seat, Spring Upper |
4ES-23142-00-00 |
from US $17.14 |
||
|
14
|
14
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
15
|
15
4ES-23141-00-00 Spring, Front Fork (K=2.8N/mm)UR |
4ES-23141-00-00 |
from US $46.42 |
||
| replacements | |||||
|
15
|
15
4ES-23141-40-00 Spring, Front Fork (K=2.8N/mmUR |
4ES-23141-40-00 |
from US $46.42 |
||
|
15
|
15
4ES-23141-80-00 Spring, Front ForkUR |
4ES-23141-80-00 |
from US $46.42 |
||
|
16
|
16
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
17
|
17
4ES-23111-00-00
Bolt, Cap
|
4ES-23111-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
4ES-23103-00-00 Front Fork Assembly (R.h)UR |
4ES-23103-00-00 |
US $499.63 |
||
| replacement | |||||
|
18
|
18
4ES-23103-10-00
Front Fork Assembly (R.h)
UR |
4ES-23103-10-00 |
— | ||
|
19
|
19
4ES-23136-00-00
Tube, Outer
|
4ES-23136-00-00 |
— | ||
|
20
|
20
4ES-23110-00-00 Inner Tube Comp.1 |
4ES-23110-00-00 |
US $342.47 |
||
|
21
|
21
4ES-23171-00-00 Piston, Front Fork |
4ES-23171-00-00 |
US $19.01 |
||
|
22
|
22
4ES-23125-00-00 Metal, Slide 1 |
4ES-23125-00-00 |
from US $20.97 |
||
|
23
|
23
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
24
|
24
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
25
|
25
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
26
|
26
4ES-23144-00-00 Seal, Dust |
4ES-23144-00-00 |
from US $14.59 |
||
|
27
|
27
4ES-23170-00-00
Cylinder Comp., Front Fork
|
4ES-23170-00-00 |
— | ||
|
28
|
28
4ES-2316A-00-00
Valve Comp
|
4ES-2316A-00-00 |
— | ||
|
29
|
29
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
30
|
30
4ES-23142-00-00 Seat, Spring Upper |
4ES-23142-00-00 |
from US $17.14 |
||
|
31
|
31
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
32
|
32
4ES-23141-00-00 Spring, Front Fork (K=2.8N/mm)UR |
4ES-23141-00-00 |
from US $46.42 |
||
| replacements | |||||
|
32
|
32
4ES-23141-40-00 Spring, Front Fork (K=2.8N/mmUR |
4ES-23141-40-00 |
from US $46.42 |
||
|
32
|
32
4ES-23141-80-00 Spring, Front ForkUR |
4ES-23141-80-00 |
from US $46.42 |
||
|
33
|
33
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
34
|
34
4ES-23111-00-00
Bolt, Cap
|
4ES-23111-00-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
4ES-23340-00-00 Under Bracket Comp |
4ES-23340-00-00 |
US $599.51 |
||
|
36
|
36
95021-10040-00 Bolt, Flange (Small Head) |
95021-10040-00 |
from US $2.90 |
||
| replacement | |||||
|
36
|
36
95024-10040-00 Bolt, Flange |
95024-10040-00 |
from US $3.54 |
||
|
37
|
37
4ES-2331E-00-00 Guide, Cable |
4ES-2331E-00-00 |
US $26.15 |
||
|
38
|
38
4ES-2314F-00-00 Protecter Guide Comp., 1 |
4ES-2314F-00-00 |
from US $25.64 |
||
|
39
|
39
4V4-23194-L0-00 Screw, Pan Head |
4V4-23194-L0-00 |
US $1.21 |
||
| replacement | |||||
|
39
|
39
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
40
|
40
4ES-2314H-L1-00 Protecter Comp., 1 |
4ES-2314H-L1-00 |
from US $49.88 |
||
| replacement | |||||
|
40
|
40
5PA-2314H-L0-00 Protecter Comp., 1 |
5PA-2314H-L0-00 |
from US $49.88 |
||
|
41
|
41
4ES-2314J-L0-00 Protecter Comp., 2 |
4ES-2314J-L0-00 |
from US $49.88 |
||
| replacement | |||||
|
41
|
41
5PA-2314J-L0-00 Protecter Comp., 2 |
5PA-2314J-L0-00 |
from US $49.88 |
||
|
42
|
42
4DA-23346-L0-00 Bolt, Flange |
4DA-23346-L0-00 |
from US $2.83 |
||
| replacement | |||||
|
42
|
42
95024-06008-00 Bolt, Flange |
95024-06008-00 |
from US $2.83 |
||
|
43
|
43
4ES-23318-00-00 Wire, Holder 1 |
4ES-23318-00-00 |
from US $13.18 |
||
|
44
|
44
90105-06707-00 Bolt, Flange (Small Head) |
90105-06707-00 |
from US $1.56 |
||
| replacement | |||||
|
44
|
44
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
45
|
45
4ES-2313B-10-00
Emblem, 1
|
4ES-2313B-10-00 |
— | ||
| replacement | |||||
|
45
|
45
4ES-2313B-11-00
Emblem1
|
4ES-2313B-11-00 |
— | ||
|
46
|
46
4ES-2313C-10-00
Emblem 2
|
4ES-2313C-10-00 |
— | ||
| replacement | |||||
|
46
|
46
4ES-2313C-11-00
Emblem 2
|
4ES-2313C-11-00 |
— | ||
