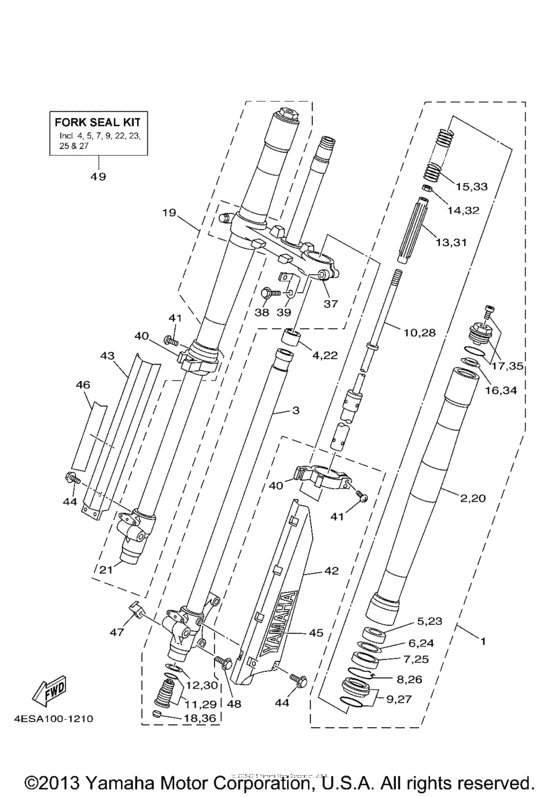

Front fork Diagram Yamaha YZ80
- Year
- 2001
- Sales region
- USA
- Engine Capacity
- 80
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ES-23102-20-00
Front Fork Assy (L.h)
4ESA |
4ES-23102-20-00 |
— | ||
|
2
|
2
4ES-23136-20-00
Tube, Outer 2
4ESA |
4ES-23136-20-00 |
— | ||
|
3
|
3
4ES-23120-00-00 Inner Tube Comp.24ESA |
4ES-23120-00-00 |
US $522.86 |
||
|
4
|
4
4ES-23171-00-00 Piston, Front Fork4ESA INCL. IN FORK SEAL KIT |
4ES-23171-00-00 |
US $19.01 |
||
|
5
|
5
4ES-23125-00-00 Metal, Slide 14ESA INCL. IN FORK SEAL KIT |
4ES-23125-00-00 |
from US $20.97 |
||
|
6
|
6
5K5-23149-00-00 Washer, Spring Upper4ESA |
5K5-23149-00-00 |
from US $6.66 |
||
|
7
|
7
4ES-23145-00-00 Oil Seal4ESA INCL. IN FORK SEAL KIT |
4ES-23145-00-00 |
from US $15.44 |
||
|
8
|
8
4A1-23156-00-00 Ring, Snap4ESA |
4A1-23156-00-00 |
from US $4.22 |
||
|
9
|
9
4ES-23144-00-00 Seal, Dust4ESA INCL. IN FORK SEAL KIT |
4ES-23144-00-00 |
from US $14.59 |
||
|
10
|
10
4ES-23170-10-00 Cylinder Comp., Front Fork4ESA |
4ES-23170-10-00 |
US $408.55 |
||
|
11
|
11
4ES-2316A-10-00 Valve Comp4ESA |
4ES-2316A-10-00 |
US $153.54 |
||
|
12
|
12
2HH-23158-L0-00 Gasket4ESA |
2HH-23158-L0-00 |
from US $4.68 |
||
|
13
|
13
4ES-23142-00-00 Seat, Spring Upper4ESA |
4ES-23142-00-00 |
from US $17.14 |
||
|
14
|
14
3XJ-23357-L0-00 Nut4ESA |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
15
|
15
4ES-23141-40-00 Spring, Front Fork (K=2.8N/mm4ESA |
4ES-23141-40-00 |
from US $46.42 |
||
| replacement | |||||
|
15
|
15
4ES-23141-80-00 Spring, Front Fork4ESA |
4ES-23141-80-00 |
from US $46.42 |
||
|
16
|
16
3GM-23142-00-00
Seat, Spring Upper
4ESA |
3GM-23142-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4V4-23142-L0-00 Seat, Spring Upper4ESA |
4V4-23142-L0-00 |
from US $11.33 |
||
|
17
|
17
4ES-23111-10-00 Bolt, Cap4ESA |
4ES-23111-10-00 |
from US $94.23 |
||
|
18
|
18
3JD-2312G-L0-00 Plug4ESA |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
19
|
19
4ES-23103-20-00
Front Fork Assy (R.h)
4ESA |
4ES-23103-20-00 |
— | ||
|
20
|
20
4ES-23136-20-00
Tube, Outer 2
4ESA |
4ES-23136-20-00 |
— | ||
|
21
|
21
4ES-23110-00-00 Inner Tube Comp.14ESA |
4ES-23110-00-00 |
US $342.47 |
||
|
22
|
22
4ES-23171-00-00 Piston, Front Fork4ESA INCL. IN FORK SEAL KIT |
4ES-23171-00-00 |
US $19.01 |
||
|
23
|
23
4ES-23125-00-00 Metal, Slide 14ESA INCL. IN FORK SEAL KIT |
4ES-23125-00-00 |
from US $20.97 |
||
|
24
|
24
5K5-23149-00-00 Washer, Spring Upper4ESA |
5K5-23149-00-00 |
from US $6.66 |
||
|
25
|
25
4ES-23145-00-00 Oil Seal4ESA INCL. IN FORK SEAL KIT |
4ES-23145-00-00 |
from US $15.44 |
||
|
26
|
26
4A1-23156-00-00 Ring, Snap4ESA |
4A1-23156-00-00 |
from US $4.22 |
||
|
27
|
27
4ES-23144-00-00 Seal, Dust4ESA INCL. IN FORK SEAL KIT |
4ES-23144-00-00 |
from US $14.59 |
||
|
28
|
28
4ES-23170-10-00 Cylinder Comp., Front Fork4ESA |
4ES-23170-10-00 |
US $408.55 |
||
|
29
|
29
4ES-2316A-10-00 Valve Comp4ESA |
4ES-2316A-10-00 |
US $153.54 |
||
|
30
|
30
2HH-23158-L0-00 Gasket4ESA |
2HH-23158-L0-00 |
from US $4.68 |
||
|
31
|
31
4ES-23142-00-00 Seat, Spring Upper4ESA |
4ES-23142-00-00 |
from US $17.14 |
||
|
32
|
32
3XJ-23357-L0-00 Nut4ESA |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
33
|
33
4ES-23141-40-00 Spring, Front Fork (K=2.8N/mm4ESA |
4ES-23141-40-00 |
from US $46.42 |
||
| replacement | |||||
|
33
|
33
4ES-23141-80-00 Spring, Front Fork4ESA |
4ES-23141-80-00 |
from US $46.42 |
||
|
34
|
34
3GM-23142-00-00
Seat, Spring Upper
4ESA |
3GM-23142-00-00 |
— | ||
| replacement | |||||
|
34
|
34
4V4-23142-L0-00 Seat, Spring Upper4ESA |
4V4-23142-L0-00 |
from US $11.33 |
||
|
35
|
35
4ES-23111-10-00 Bolt, Cap4ESA |
4ES-23111-10-00 |
from US $94.23 |
||
|
36
|
36
3JD-2312G-L0-00 Plug4ESA |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
37
|
37
4ES-23340-00-00 Under Bracket Comp4ESA |
4ES-23340-00-00 |
US $599.51 |
||
|
38
|
38
95021-10040-00 Bolt, Flange (Small Head)4ESA |
95021-10040-00 |
from US $2.90 |
||
| replacement | |||||
|
38
|
38
95024-10040-00 Bolt, Flange4ESA |
95024-10040-00 |
from US $3.54 |
||
|
39
|
39
4ES-2331E-00-00 Guide, Cable4ESA |
4ES-2331E-00-00 |
US $26.15 |
||
|
40
|
40
4ES-2314F-00-00 Protecter Guide Comp., 14ESA |
4ES-2314F-00-00 |
from US $25.64 |
||
|
41
|
41
4V4-23194-L0-00 Screw, Pan Head4ESA |
4V4-23194-L0-00 |
US $1.21 |
||
| replacement | |||||
|
41
|
41
98517-04025-00 Screw, Pan Head4ESA |
98517-04025-00 |
from US $1.21 |
||
|
42
|
42
4ES-2314H-L1-00 Protecter Comp., 14ESA |
4ES-2314H-L1-00 |
from US $49.88 |
||
| replacement | |||||
|
42
|
42
5PA-2314H-L0-00 Protecter Comp., 14ESA |
5PA-2314H-L0-00 |
from US $49.88 |
||
|
43
|
43
4ES-2314J-L0-00 Protecter Comp., 24ESA |
4ES-2314J-L0-00 |
from US $49.88 |
||
| replacement | |||||
|
43
|
43
5PA-2314J-L0-00 Protecter Comp., 24ESA |
5PA-2314J-L0-00 |
from US $49.88 |
||
|
44
|
44
95024-06010-00 Bolt, Flange (Small Head)4ESA |
95024-06010-00 |
from US $1.56 |
||
|
45
|
45
4XL-2153A-10-00
Emblem, Yamaha
4ESA |
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
45
|
45
4XL-2153A-11-00 Emblem, Yamaha4ESA |
4XL-2153A-11-00 |
from US $11.16 |
||
|
46
|
46
4XL-2153A-10-00
Emblem, Yamaha
4ESA |
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
46
|
46
4XL-2153A-11-00 Emblem, Yamaha4ESA |
4XL-2153A-11-00 |
from US $11.16 |
||
|
47
|
47
4ES-23318-00-00 Wire, Holder 14ESA |
4ES-23318-00-00 |
from US $13.18 |
||
|
48
|
48
950-27060-16-00
Bolt, Flange
4ESA |
950-27060-16-00 |
— | ||
| replacement | |||||
|
48
|
48
901-05066-96-00 Bolt, Flange4ESA |
901-05066-96-00 |
from US $2.64 |
||
|
49
|
49
4ES-W003B-00-00 Fork Seal Kit |
4ES-W003B-00-00 |
from US $68.22 |
||
