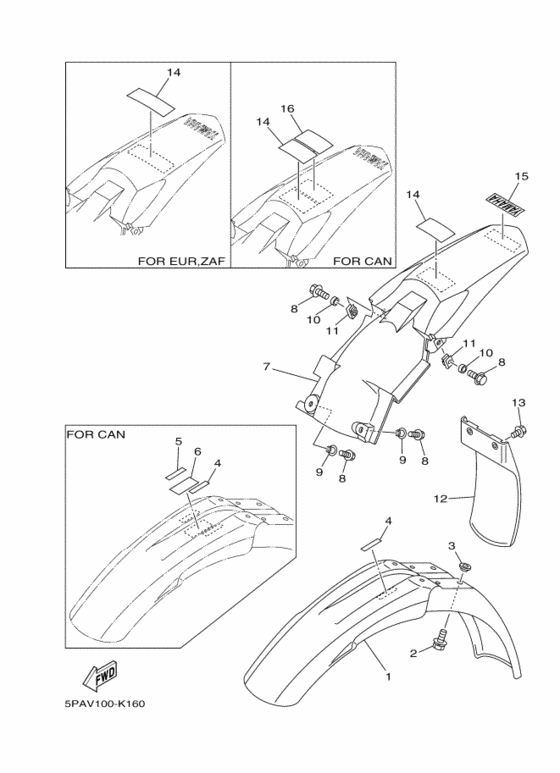

Fender Diagram Yamaha YZ85
- Year
- 2013
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 1SN4
- Sales region
- Europe (020)
- Engine Capacity
- 85
- Color Variant
- A
- Model
- YZ85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ES-21511-20-00 Fender, Front |
4ES-21511-20-00 |
from US $61.07 |
||
|
2
|
2
90119-06201-00 Bolt, With Washer |
90119-06201-00 |
from US $1.70 |
||
|
3
|
3
90209-06015-00 Washer |
90209-06015-00 |
from US $1.98 |
||
|
4
|
4
3XJ-2415E-A1-00 Label, CautionFOR CAN |
3XJ-2415E-A1-00 |
from US $6.62 |
||
|
5
|
5
3XJ-2415E-B1-00 Label, CautionFOR CAN |
3XJ-2415E-B1-00 |
US $15.30 |
||
|
6
|
6
4SR-2416E-00-00 Label, Caution CanadaFOR CAN |
4SR-2416E-00-00 |
US $2.98 |
||
|
7
|
7
5PA-21611-10-00 Fender, Rear |
5PA-21611-10-00 |
from US $80.21 |
||
|
8
|
8
90119-06133-00 Bolt, With Washer |
90119-06133-00 |
from US $1.70 |
||
|
9
|
9
90387-064X4-00 Collar |
90387-064X4-00 |
from US $4.11 |
||
|
10
|
10
903-87070-1A-00 Collar |
903-87070-1A-00 |
from US $1.84 |
||
|
11
|
11
90183-060A7-00 Nut, Spring |
90183-060A7-00 |
from US $2.55 |
||
|
12
|
12
4ES-21642-00-00 Guard, Flap |
4ES-21642-00-00 |
from US $40.62 |
||
| replacement | |||||
|
12
|
12
4ES-21642-01-00 |
4ES-21642-01-00 |
from US $40.62 |
||
|
13
|
13
90119-06239-00 Bolt, With Washer |
90119-06239-00 |
from US $1.56 |
||
|
14
|
14
5PA-2118K-00-00 Label, CautionUR FOR CAN |
5PA-2118K-00-00 |
from US $9.41 |
||
|
15
|
15
4ES-2153E-20-00 Emblem, Yamaha |
4ES-2153E-20-00 |
from US $3.13 |
||
| replacement | |||||
|
15
|
15
4ES-2153E-21-00 |
4ES-2153E-21-00 |
US $4.64 |
||
|
16
|
16
5PA-2118K-10-00 Label, CautionFOR CAN |
5PA-2118K-10-00 |
US $11.19 |
||
