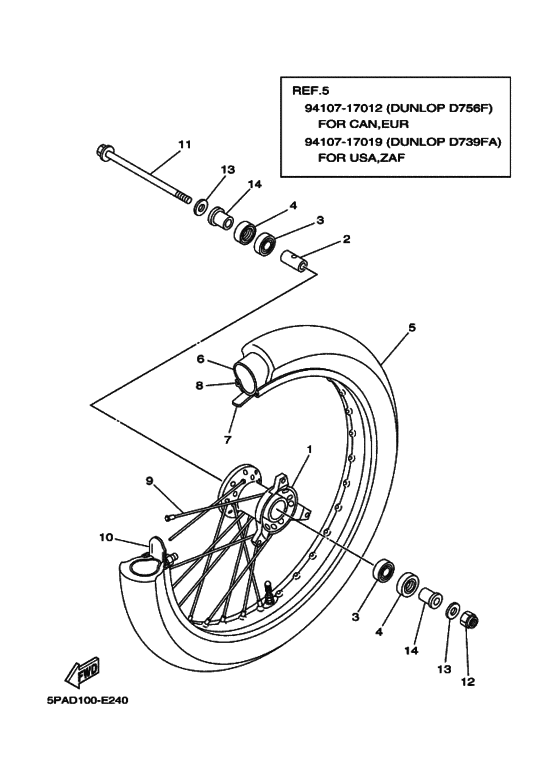

Front wheel Diagram Yamaha YZ85
- Year
- 2006
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5SHD
- Sales region
- Europe (010)
- Engine Capacity
- 85
- Color Variant
- A
- Model
- YZ85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ES-25111-00-00 Hub, Front |
4ES-25111-00-00 |
from US $180.99 |
||
| replacement | |||||
|
1
|
1
4ES-25111-01-00 Hub, Front |
4ES-25111-01-00 |
from US $180.99 |
||
|
2
|
2
90387-124H0-00 Collar |
90387-124H0-00 |
from US $8.64 |
||
|
3
|
3
93306-20120-00 Bearing(3Dl) |
93306-20120-00 |
from US $18.14 |
||
| replacements | |||||
|
3
|
3
93306-20117-00 Bearing |
93306-20117-00 |
from US $18.14 |
||
|
3
|
3
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $12.12 |
||
|
4
|
4
93106-20031-00 Oil Seal |
93106-20031-00 |
from US $6.52 |
||
|
5
|
5
94107-19015-00
Tire (70/100-19 42M D756F)
70/100-19 42M D756F; DUNLOP |
94107-19015-00 |
— | ||
|
6
|
6
94207-19290-00
Tube (70/100-19M/c Tr4)
70/100-19M/C TR4; DUNLOP |
94207-19290-00 |
— | ||
|
7
|
7
94307-19170-00 Band, Rim (18-19)70/100-19; DUNLOP |
94307-19170-00 |
from US $4.39 |
||
|
8
|
8
94414-19521-00 Rim1.40-19 |
94414-19521-00 |
from US $252.83 |
||
|
9
|
9
4LB-25104-00-00 Spoke Set, Front |
4LB-25104-00-00 |
from US $54.99 |
||
|
10
|
10
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $56.65 |
||
|
11
|
11
4ES-25181-00-00 Axle, Wheel |
4ES-25181-00-00 |
from US $33.58 |
||
|
12
|
12
90185-12046-00 Nut, Self-Locking |
90185-12046-00 |
from US $6.38 |
||
| replacement | |||||
|
12
|
12
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.94 |
||
|
13
|
13
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
14
|
14
4ES-25183-10-00 Collar, Wheel |
4ES-25183-10-00 |
from US $10.34 |
||
