Frame Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 14BA
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Note
- .競技用モデル
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?

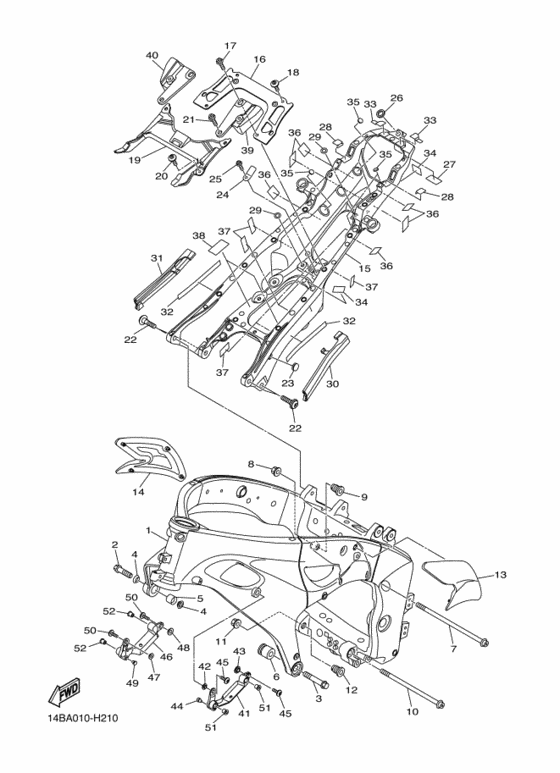

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-21110-00-00 Frame Compフレームコンプリート; |
14B-21110-00-00 |
from US $3,392.96 |
||
|
2
|
2
90105-12062-00 Bolt, Flange |
90105-12062-00 |
from US $3.87 |
||
|
3
|
3
95817-12080-00 Bolt, Flange |
95817-12080-00 |
from US $7.74 |
||
|
4
|
4
14B-21414-00-00 Boss, Engine Mount |
14B-21414-00-00 |
from US $14.45 |
||
|
5
|
5
14B-21424-00-00 Boss, Engine Mount |
14B-21424-00-00 |
from US $25.22 |
||
|
6
|
6
14B-2141R-00-00 Boss |
14B-2141R-00-00 |
from US $47.39 |
||
|
7
|
7
90110-10005-00 Bolt, Hexagon Socket Head |
90110-10005-00 |
from US $13.88 |
||
|
8
|
8
901-79100-28-00 Nut |
901-79100-28-00 |
from US $5.38 |
||
|
9
|
9
14B-21495-00-00 Bolt, Engine Adjusting |
14B-21495-00-00 |
from US $19.27 |
||
|
10
|
10
901-10100-23-00 Bolt, Hexagon Socket Head |
901-10100-23-00 |
from US $17.99 |
||
|
11
|
11
901-79100-28-00 Nut |
901-79100-28-00 |
from US $5.38 |
||
|
12
|
12
14B-21495-00-00 Bolt, Engine Adjusting |
14B-21495-00-00 |
from US $19.27 |
||
|
13
|
13
14B-24121-00-00 Seat, Knee Grip 1シート，ニーグリツプ １; |
14B-24121-00-00 |
from US $35.65 |
||
|
14
|
14
14B-24122-00-00 Seat, Knee Grip 2シート，ニーグリツプ ２; |
14B-24122-00-00 |
from US $35.65 |
||
|
15
|
15
14B-21190-00-00 Rear Frameリヤフレームコンプリート; |
14B-21190-00-00 |
from US $1,222.32 |
||
|
16
|
16
14B-21131-00-00 Bracket |
14B-21131-00-00 |
from US $61.34 |
||
|
17
|
17
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.70 |
||
|
18
|
18
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
19
|
19
14B-21214-00-00 Reinf, Frame Rr |
14B-21214-00-00 |
from US $74.05 |
||
|
20
|
20
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
21
|
21
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.70 |
||
|
22
|
22
14B-2585H-09-00 Screw, Set |
14B-2585H-09-00 |
from US $5.38 |
||
|
23
|
23
90338-15004-00 Plug |
90338-15004-00 |
from US $1.70 |
||
|
24
|
24
14B-2116B-00-00
Brkt
|
14B-2116B-00-00 |
— | ||
|
25
|
25
90109-06014-00 Bolt, Hexagon Socket Head |
90109-06014-00 |
from US $1.98 |
||
| replacement | |||||
|
25
|
25
90110-06331-00 Bolt, Hexagon Socket Head |
90110-06331-00 |
from US $1.34 |
||
|
26
|
26
13S-21746-00-00 Damper |
13S-21746-00-00 |
from US $1.84 |
||
|
27
|
27
14B-22873-00-00 Seal 1シール １; |
14B-22873-00-00 |
from US $3.12 |
||
|
28
|
28
14B-22874-00-00 Seal 2シール ２; |
14B-22874-00-00 |
from US $3.40 |
||
|
29
|
29
13S-2173M-00-00 Seal 3シール ３; |
13S-2173M-00-00 |
from US $4.96 |
||
|
30
|
30
14B-22876-00-00 Seal 4シール ４; |
14B-22876-00-00 |
from US $10.06 |
||
|
31
|
31
14B-22877-00-00 Seal, 5シール ５; |
14B-22877-00-00 |
from US $10.06 |
||
|
32
|
32
13S-21567-00-00 Tape, 2 |
13S-21567-00-00 |
from US $8.64 |
||
|
33
|
33
14B-22879-00-00 Seal, 7シール ７; |
14B-22879-00-00 |
from US $4.39 |
||
|
34
|
34
14B-28425-00-00 Damper 3 |
14B-28425-00-00 |
from US $3.54 |
||
|
35
|
35
14B-28217-00-00 Damper 1 |
14B-28217-00-00 |
from US $1.40 |
||
|
36
|
36
14B-28227-00-00 Damper 2 |
14B-28227-00-00 |
from US $1.56 |
||
|
37
|
37
14B-28237-00-00 Damper 3 |
14B-28237-00-00 |
from US $1.56 |
||
|
38
|
38
14B-28435-00-00 Damper 4 |
14B-28435-00-00 |
from US $2.98 |
||
|
39
|
39
14B-2172E-00-00 Stay, Side Cover 1ステー，サイドカバー １; |
14B-2172E-00-00 |
from US $18.70 |
||
|
40
|
40
14B-2174E-00-00 Stay, Side Cover 2ステー，サイドカバー ２; |
14B-2174E-00-00 |
from US $18.70 |
||
|
41
|
41
14B-2836F-00-00 Bracket 3 |
14B-2836F-00-00 |
from US $3.40 |
||
|
42
|
42
903-87062-17-00 Collarカラー; |
903-87062-17-00 |
from US $15.16 |
||
|
43
|
43
90560-08251-00 Collarスペーサ; |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
43
|
43
90387-08079-00 Collarスペーサ; |
90387-08079-00 |
from US $2.69 |
||
|
44
|
44
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
44
|
44
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
45
|
45
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
46
|
46
14B-2836G-00-00 Bracket 4 |
14B-2836G-00-00 |
from US $3.40 |
||
|
47
|
47
903-87062-17-00 Collarカラー; |
903-87062-17-00 |
from US $15.16 |
||
|
48
|
48
90560-08251-00 Collarスペーサ; |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
48
|
48
90387-08079-00 Collarスペーサ; |
90387-08079-00 |
from US $2.69 |
||
|
49
|
49
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
49
|
49
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
50
|
50
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
51
|
51
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
52
|
52
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
