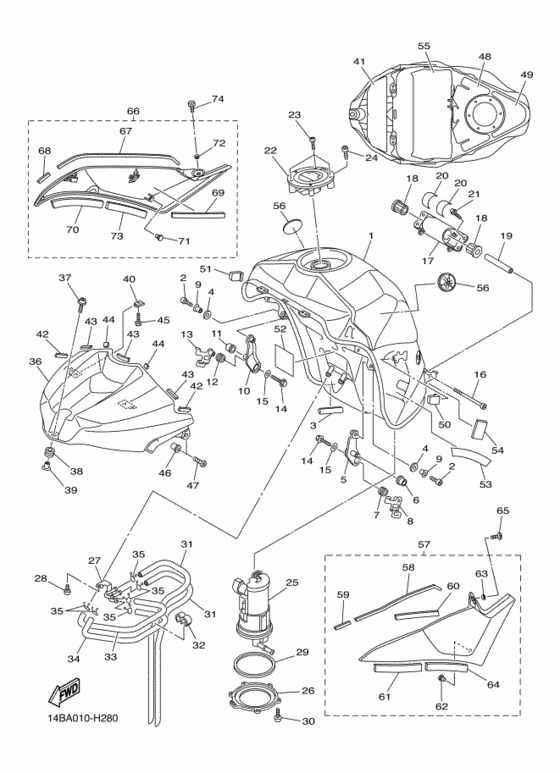

Fuel tank Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 14BA
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Note
- .競技用モデル
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-YK241-00-P0 Fuel Tank Compフユエルタンクコンプリート ; ＷＯＧ; 参照; ＢＷＣ１ |
14B-YK241-00-P0 |
from US $844.99 |
||
| replacement | |||||
|
1
|
1
14B-WK241-01-P0 Fuel Tank Compフユエルタンクコンプリート ; ＷＯＧ; 参照; ＢＷＣ１ |
14B-WK241-01-P0 |
US $993.74 |
||
|
2
|
2
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
3
|
3
4BP-24188-00-00 Mold, Fuel Tankモール，フユエルタンク; |
4BP-24188-00-00 |
from US $9.35 |
||
| replacement | |||||
|
3
|
3
1HX-24188-01-00 Mold, Fuel Tankモール，フユエルタンク; |
1HX-24188-01-00 |
from US $9.35 |
||
|
4
|
4
5VY-24183-00-00 Damper, Locating 3ダンパ，ロケーテイング ３; |
5VY-24183-00-00 |
from US $3.26 |
||
|
5
|
5
14B-24191-00-00 Bracket, Fuel Tank 1 |
14B-24191-00-00 |
from US $26.21 |
||
| replacement | |||||
|
5
|
5
14B-24191-10-00 Bracket, Fuel Tank 1 |
14B-24191-10-00 |
from US $26.21 |
||
|
6
|
6
5VY-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
5VY-24181-00-00 |
from US $2.69 |
||
|
7
|
7
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
8
|
8
14B-21161-00-00 Holder, Cableホルダ，ケーブル; |
14B-21161-00-00 |
from US $11.76 |
||
|
9
|
9
90387-06143-00 Collarカラー; |
90387-06143-00 |
from US $6.94 |
||
|
10
|
10
14B-24192-00-00 Bracket, Fuel Tank 2 |
14B-24192-00-00 |
from US $26.21 |
||
| replacement | |||||
|
10
|
10
14B-24192-10-00 Bracket, Fuel Tank 2 |
14B-24192-10-00 |
from US $26.21 |
||
|
11
|
11
5VY-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
5VY-24181-00-00 |
from US $2.69 |
||
|
12
|
12
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
13
|
13
14B-21162-00-00 Holder, Clutch Cableホルダ，クラツチケーブル; |
14B-21162-00-00 |
from US $11.76 |
||
|
14
|
14
95022-06030-00 Bolt, Flange |
95022-06030-00 |
from US $1.42 |
||
|
15
|
15
90201-06095-00 Washer, Plateワツシヤ，プレート; |
90201-06095-00 |
from US $1.70 |
||
|
16
|
16
90110-06296-00 Bolt, Hexagon Socket Head |
90110-06296-00 |
from US $6.23 |
||
|
17
|
17
14B-2413Y-00-00 Bracket, Tank Fitting |
14B-2413Y-00-00 |
from US $45.45 |
||
|
18
|
18
5SL-24183-00-00 Damper, Locating 3ダンパ，ロケーテイング ３; |
5SL-24183-00-00 |
from US $3.68 |
||
|
19
|
19
903-87060-55-00 Collarカラー; |
903-87060-55-00 |
from US $4.39 |
||
|
20
|
20
14B-2414E-00-00 Seal 2シール ２; |
14B-2414E-00-00 |
from US $4.49 |
||
|
21
|
21
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
|
22
|
22
5JJ-24602-00-00
Cap Assy
|
5JJ-24602-00-00 |
— | ||
| replacement | |||||
|
22
|
22
39P-24602-00-00 Cap Assy |
39P-24602-00-00 |
from US $167.98 |
||
|
23
|
23
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
24
|
24
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
25
|
25
14B-13907-00-00
Fuel Pump Comp
フユエルポンプコンプリート; |
14B-13907-00-00 |
— | ||
| replacements | |||||
|
25
|
25
14B-13907-20-00
Fuel Pump Comp
フユエルポンプコンプリート; |
14B-13907-20-00 |
— | ||
|
25
|
25
14B-13907-21-00
FUEL PUMP COMP
フユエルポンプコンプリート; |
14B-13907-21-00 |
— | ||
|
25
|
25
14B-13907-22-00
Fuel Pump Comp.
フユエルポンプコンプリート; |
14B-13907-22-00 |
— | ||
|
25
|
25
14B-13907-23-00 FUEL PUMP COMPフユエルポンプコンプリート; |
14B-13907-23-00 |
from US $697.98 |
||
|
26
|
26
13S-24491-00-00 Bracket, Fuel Pump |
13S-24491-00-00 |
from US $20.54 |
||
|
27
|
27
14B-24135-00-00 Clamp 1 |
14B-24135-00-00 |
from US $30.04 |
||
|
28
|
28
90110-05030-00 Bolt |
90110-05030-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
91312-05008-00 Bolt |
91312-05008-00 |
from US $1.36 |
||
|
29
|
29
5JW-24486-00-00
O-Ring
|
5JW-24486-00-00 |
— | ||
| replacement | |||||
|
29
|
29
19B-24486-01-00 O-Ring |
19B-24486-01-00 |
from US $20.97 |
||
|
30
|
30
90110-05028-00 Bolt, Hexagon Socket Head |
90110-05028-00 |
from US $1.70 |
||
|
31
|
31
14B-24312-00-00 Pipe 2 |
14B-24312-00-00 |
from US $19.27 |
||
|
32
|
32
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.70 |
||
|
33
|
33
14B-24313-00-00 Pipe 3 |
14B-24313-00-00 |
from US $10.34 |
||
|
34
|
34
14B-24314-00-00 Pipe 4 |
14B-24314-00-00 |
US $10.48 |
||
|
35
|
35
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
35
|
35
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
36
|
36
14B-2171A-00-P0 Cover, Topカバー，トツプ; ＭＢＬ２ |
14B-2171A-00-P0 |
from US $203.10 |
||
|
37
|
37
90110-06233-00 Bolt, Hexagon Socket Head |
90110-06233-00 |
from US $3.40 |
||
|
38
|
38
90480-12023-00 Grommet |
90480-12023-00 |
from US $1.56 |
||
| replacement | |||||
|
38
|
38
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
39
|
39
90387-06203-00 Collarカラー; |
90387-06203-00 |
from US $7.79 |
||
|
40
|
40
90183-05074-00 Nut, Spring(3Yx)ナツト，スプリング; |
90183-05074-00 |
from US $1.98 |
||
|
41
|
41
14B-2414H-00-00 Damper, Plate 1ダンパ，プレート １; |
14B-2414H-00-00 |
from US $5.24 |
||
|
42
|
42
4C8-24182-00-00 Damper, Locating 2ダンパ，ロケーテイング ２; |
4C8-24182-00-00 |
from US $1.70 |
||
|
43
|
43
3XV-21778-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
3XV-21778-00-00 |
from US $2.69 |
||
|
44
|
44
14B-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
14B-24181-00-00 |
from US $1.84 |
||
|
45
|
45
901-19050-15-00 Bolt, With Washer |
901-19050-15-00 |
from US $1.56 |
||
|
46
|
46
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
47
|
47
98902-05014-00 Screw, Bind |
98902-05014-00 |
from US $1.56 |
||
|
48
|
48
14B-2414N-00-00 Damper, Plate 4ダンパ，プレート ４; |
14B-2414N-00-00 |
from US $36.34 |
||
|
49
|
49
14B-2414P-00-00 Damper, Plate 5ダンパ，プレート ５; |
14B-2414P-00-00 |
from US $26.21 |
||
|
50
|
50
5PW-2411J-01-00 Damper, Side Coverダンパ，サイドカバー; |
5PW-2411J-01-00 |
from US $2.02 |
||
|
51
|
51
5PW-2411J-01-00 Damper, Side Coverダンパ，サイドカバー; |
5PW-2411J-01-00 |
from US $2.02 |
||
|
52
|
52
5VU-21747-00-00 Damper |
5VU-21747-00-00 |
from US $1.70 |
||
|
53
|
53
14B-2414K-00-00 Damper, Plate 3ダンパ，プレート ３; |
14B-2414K-00-00 |
from US $5.10 |
||
|
54
|
54
14B-2414G-00-00 Sealシール; |
14B-2414G-00-00 |
from US $5.24 |
||
|
55
|
55
905-20050-02-00 Damper, Plateダンパ，プレート; |
905-20050-02-00 |
from US $9.07 |
||
|
56
|
56
5SL-2413B-00-00 Emblem |
5SL-2413B-00-00 |
from US $24.24 |
||
|
57
|
57
14B-24106-00-00 Tank Side Cover Assy 1タンクサイドカバーアセンブリ １; |
14B-24106-00-00 |
from US $105.28 |
||
|
58
|
58
2C0-2414H-00-00 Damper, Plate 1．ダンパ，プレート １; |
2C0-2414H-00-00 |
from US $1.70 |
||
|
59
|
59
14B-2414J-00-00 Damper, Plate 2．ダンパ，プレート ２; |
14B-2414J-00-00 |
from US $1.70 |
||
|
60
|
60
4C8-2414J-00-00 Damper, Plate 2．ダンパ，プレート ２; |
4C8-2414J-00-00 |
from US $1.66 |
||
| replacement | |||||
|
60
|
60
90520-04012-00 Damper, Plate．ダンパ，プレート ２; |
90520-04012-00 |
from US $1.84 |
||
|
61
|
61
2C0-2414J-00-00 Damper, Plate 2．ダンパ，プレート ２; |
2C0-2414J-00-00 |
from US $1.36 |
||
|
62
|
62
903-38060-18-00
Plug
．プラグ; |
903-38060-18-00 |
— | ||
| replacement | |||||
|
62
|
62
903-38071-80-00 Plug．プラグ; |
903-38071-80-00 |
from US $1.98 |
||
|
63
|
63
90560-05N33-00 Spacer．スペーサ; |
90560-05N33-00 |
from US $3.83 |
||
|
64
|
64
905-20100-05-00 Damper, Plate．ダンパ，プレート; |
905-20100-05-00 |
from US $2.27 |
||
|
65
|
65
98902-05008-00 Screw, Bind |
98902-05008-00 |
from US $1.56 |
||
|
66
|
66
14B-24108-00-00 Tank Side Cover Assy 2タンクサイドカバーアセンブリ ２; |
14B-24108-00-00 |
from US $105.28 |
||
|
67
|
67
2C0-2414H-00-00 Damper, Plate 1．ダンパ，プレート １; |
2C0-2414H-00-00 |
from US $1.70 |
||
|
68
|
68
14B-2414J-00-00 Damper, Plate 2．ダンパ，プレート ２; |
14B-2414J-00-00 |
from US $1.70 |
||
|
69
|
69
4C8-2414J-00-00 Damper, Plate 2．ダンパ，プレート ２; |
4C8-2414J-00-00 |
from US $1.66 |
||
| replacement | |||||
|
69
|
69
90520-04012-00 Damper, Plate．ダンパ，プレート ２; |
90520-04012-00 |
from US $1.84 |
||
|
70
|
70
2C0-2414J-00-00 Damper, Plate 2．ダンパ，プレート ２; |
2C0-2414J-00-00 |
from US $1.36 |
||
|
71
|
71
903-38060-18-00
Plug
．プラグ; |
903-38060-18-00 |
— | ||
| replacement | |||||
|
71
|
71
903-38071-80-00 Plug．プラグ; |
903-38071-80-00 |
from US $1.98 |
||
|
72
|
72
90560-05N33-00 Spacer．スペーサ; |
90560-05N33-00 |
from US $3.83 |
||
|
73
|
73
905-20100-05-00 Damper, Plate．ダンパ，プレート; |
905-20100-05-00 |
from US $2.27 |
||
|
74
|
74
98902-05008-00 Screw, Bind |
98902-05008-00 |
from US $1.56 |
||
