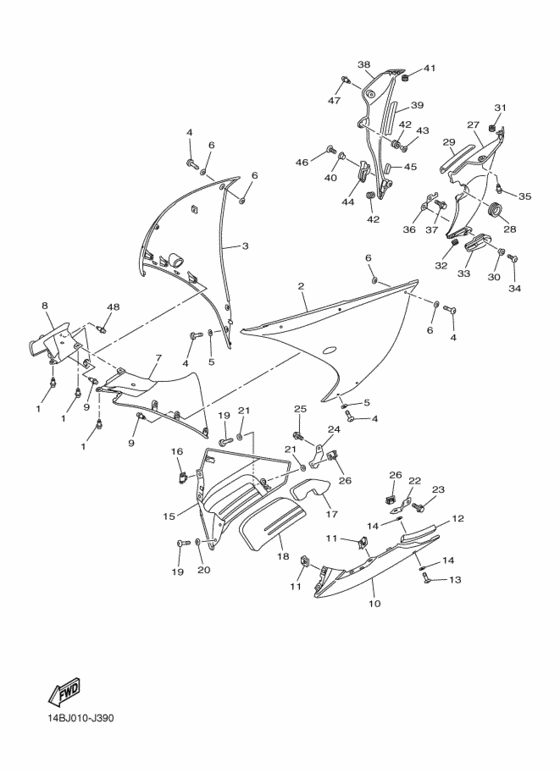

Cowl pnl Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2010
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 14BJ
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
2
|
2
14B-2835U-00-P0 Panel 1ＭＢＬ２ |
14B-2835U-00-P0 |
US $280.46 |
||
|
3
|
3
14B-2835V-00-P0 Panel 2ＭＢＬ２ |
14B-2835V-00-P0 |
US $280.46 |
||
|
4
|
4
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
5
|
5
902-02060-05-00 Washer, Plateワツシヤ，プレート; |
902-02060-05-00 |
from US $1.70 |
||
|
6
|
6
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
7
|
7
14B-2836K-00-00 Panel, Inner 1 |
14B-2836K-00-00 |
from US $53.88 |
||
|
8
|
8
14B-2836L-00-00 Panel, Inner 2 |
14B-2836L-00-00 |
from US $53.88 |
||
|
9
|
9
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
10
|
10
14B-28385-00-P0 Cover, Underカバー，ロワ; ＳＭＸ |
14B-28385-00-P0 |
US $201.71 |
||
|
11
|
11
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
12
|
12
14B-2834E-00-00 Damper 3 |
14B-2834E-00-00 |
from US $11.33 |
||
|
13
|
13
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
14
|
14
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
15
|
15
14B-28395-00-P0 Cover, Under 2カバー，アンダ; ＳＭＸ |
14B-28395-00-P0 |
US $201.71 |
||
|
16
|
16
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
16
|
16
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
17
|
17
14B-28371-00-00 Damper |
14B-28371-00-00 |
from US $10.48 |
||
|
18
|
18
14B-2848M-00-00 Seat 4 |
14B-2848M-00-00 |
from US $47.94 |
||
|
19
|
19
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
20
|
20
902-02060-05-00 Washer, Plateワツシヤ，プレート; |
902-02060-05-00 |
from US $1.70 |
||
|
21
|
21
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
22
|
22
14B-2836A-00-00 Bracket 1 |
14B-2836A-00-00 |
from US $9.63 |
||
|
23
|
23
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
23
|
23
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
24
|
24
14B-2836E-00-00 Bracket 2 |
14B-2836E-00-00 |
from US $9.78 |
||
|
25
|
25
90105-06174-00 Bolt, Flange |
90105-06174-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
26
|
26
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
26
|
26
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
27
|
27
14B-2836M-00-P0 Panel, Inner 3ＳＭＸ |
14B-2836M-00-P0 |
from US $186.52 |
||
| replacement | |||||
|
27
|
27
14B-2836M-10-P4 Panel, Inner 3ＳＭＸ |
14B-2836M-10-P4 |
from US $186.52 |
||
|
28
|
28
14B-2836T-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
14B-2836T-00-00 |
from US $3.26 |
||
|
29
|
29
905-20050-11-00 Damper, Plateダンパ，プレート; |
905-20050-11-00 |
from US $3.83 |
||
|
30
|
30
90560-08251-00 Collarスペーサ; |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
30
|
30
90387-08079-00 Collarスペーサ; |
90387-08079-00 |
from US $2.69 |
||
|
31
|
31
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
32
|
32
904-80125-96-00 Grommet (rubber)グロメツト; |
904-80125-96-00 |
from US $1.84 |
||
|
33
|
33
14B-283C1-00-00 Stopper, Rubber 1 |
14B-283C1-00-00 |
from US $4.39 |
||
|
34
|
34
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
35
|
35
902-69070-77-00 Rivetリベツト; |
902-69070-77-00 |
from US $1.84 |
||
|
36
|
36
14B-28321-00-00 Stay 1ステー １; |
14B-28321-00-00 |
from US $12.04 |
||
|
37
|
37
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
37
|
37
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
37
|
37
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
38
|
38
14B-2836N-00-P0 Panel, Inner 4ＳＭＸ |
14B-2836N-00-P0 |
from US $147.83 |
||
| replacement | |||||
|
38
|
38
14B-2836N-10-P4 Panel, Inner 4ＳＭＸ |
14B-2836N-10-P4 |
from US $130.66 |
||
|
39
|
39
3NU-21732-00-00 Seal 1シール １; |
3NU-21732-00-00 |
from US $2.69 |
||
|
40
|
40
90560-08251-00 Collarスペーサ; |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
40
|
40
90387-08079-00 Collarスペーサ; |
90387-08079-00 |
from US $2.69 |
||
|
41
|
41
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
42
|
42
904-80125-96-00 Grommet (rubber)グロメツト; |
904-80125-96-00 |
from US $1.84 |
||
|
43
|
43
903-87065-J6-00
Collar
カラー; |
903-87065-J6-00 |
— | ||
| replacement | |||||
|
43
|
43
903-87061-59-00 Collarカラー; |
903-87061-59-00 |
from US $1.56 |
||
|
44
|
44
14B-283C2-00-00 Stopper, Rubber 2 |
14B-283C2-00-00 |
from US $4.39 |
||
|
45
|
45
4B5-2847F-00-00 Seal 5シール ５; |
4B5-2847F-00-00 |
from US $5.38 |
||
|
46
|
46
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
47
|
47
902-69070-77-00 Rivetリベツト; |
902-69070-77-00 |
from US $1.84 |
||
|
48
|
48
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
