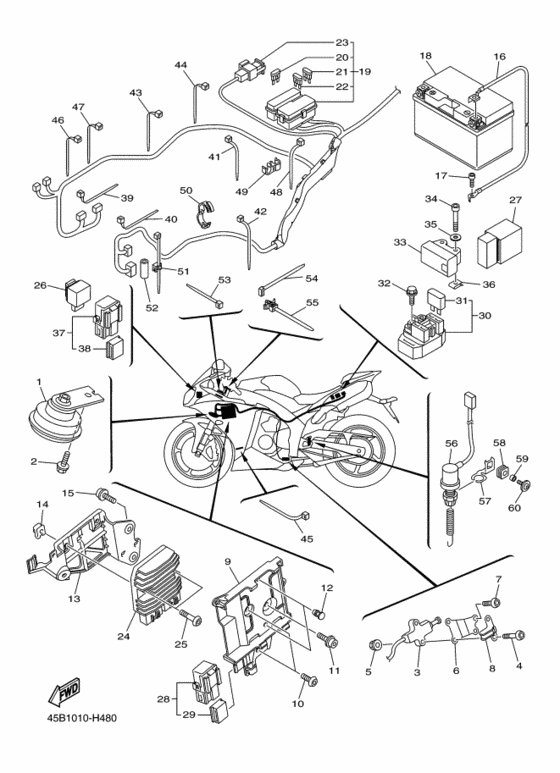

Electrical 2 Diagram Yamaha YZF-R1 R1
- Year
- 2009
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 45B1
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- B
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-83371-00-00 Hornホーン; |
14B-83371-00-00 |
from US $44.07 |
||
|
2
|
2
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
3
|
3
13S-82566-50-00 Switch, Side Stand |
13S-82566-50-00 |
from US $87.46 |
||
|
4
|
4
92017-05025-00 Bolt, Button Head |
92017-05025-00 |
from US $1.56 |
||
|
5
|
5
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
6
|
6
14B-27961-00-00 Bracket, Sensor 1 |
14B-27961-00-00 |
from US $7.37 |
||
|
7
|
7
92017-05016-00 Bolt, Button Head |
92017-05016-00 |
from US $1.56 |
||
|
8
|
8
14B-27911-00-00 Holder |
14B-27911-00-00 |
from US $8.50 |
||
|
9
|
9
14B-2836H-00-00 Bracket 5 |
14B-2836H-00-00 |
from US $21.39 |
||
|
10
|
10
90111-06119-00 Bolt, Hex. Socket Button |
90111-06119-00 |
from US $1.56 |
||
|
11
|
11
90110-06245-00 Bolt, Hexagon Socket Head |
90110-06245-00 |
from US $1.56 |
||
|
12
|
12
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
12
|
12
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
13
|
13
14B-2836J-00-00 Bracket 6 |
14B-2836J-00-00 |
from US $14.17 |
||
|
14
|
14
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
15
|
15
90110-06245-00 Bolt, Hexagon Socket Head |
90110-06245-00 |
from US $1.56 |
||
|
16
|
16
14B-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
14B-82116-00-00 |
from US $32.16 |
||
|
17
|
17
91312-06012-00 Bolt, Hext. Socket Head |
91312-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
18
|
18
90793-26097-00
Battery Assy (Yuasa Ytz10S)
バツテリアセンブリ ; ＹＵＡＳＡ ＹＴＺ１０Ｓ |
90793-26097-00 |
— | ||
|
19
|
19
45B-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
45B-82590-00-00 |
— | ||
|
20
|
20
5JJ-82151-20-00 Fuse (20A-Bl)フユーズ ; ２０Ａ−ＢＬ |
5JJ-82151-20-00 |
from US $3.54 |
||
|
21
|
21
5JJ-82151-10-00 Fuse (15A-Bl)フユーズ ; １５Ａ−ＢＬ |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
21
|
21
67F-82151-50-00 Fuse (15A)フユーズ ; １５Ａ−ＢＬ |
67F-82151-50-00 |
from US $1.98 |
||
|
22
|
22
5JJ-82151-00-00 Fuse (7.5A-Bl)フユーズ ; ７．５Ａ−ＢＬ |
5JJ-82151-00-00 |
from US $2.98 |
||
|
23
|
23
5JW-82151-10-00 Fuse (50A)フユーズ ; ５０Ａ |
5JW-82151-10-00 |
from US $9.63 |
||
|
24
|
24
1D7-81960-00-00
Rectifier & Regulator Assy
レクチフアイヤアンドレギユレータアセンブリ; |
1D7-81960-00-00 |
— | ||
| replacement | |||||
|
24
|
24
1D7-81960-01-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
1D7-81960-01-00 |
from US $219.67 |
||
|
25
|
25
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.56 |
||
|
26
|
26
4GY-83350-00-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
4GY-83350-00-00 |
US $51.95 |
||
|
27
|
27
5VK-81950-40-00
Relay Assy (5Vk-40)
リレーアセンブリ; |
5VK-81950-40-00 |
— | ||
| replacements | |||||
|
27
|
27
5VK-81950-41-00 Relay Assyリレーアセンブリ; |
5VK-81950-41-00 |
from US $65.89 |
||
|
27
|
27
5VK-81950-42-00 RELAY ASSYリレーアセンブリ; |
5VK-81950-42-00 |
from US $52.99 |
||
|
28
|
28
5JJ-81950-20-00 Relay Assy (5JJ-20)リレーアセンブリ; |
5JJ-81950-20-00 |
from US $23.52 |
||
|
29
|
29
5JJ-81952-00-00 Holder, Relay．ホルダー，リレー; |
5JJ-81952-00-00 |
from US $5.38 |
||
|
30
|
30
5JW-81940-02-00 Starter Relay Assy (Rc19-032)スタータリレーアセンブリ; |
5JW-81940-02-00 |
from US $64.80 |
||
|
31
|
31
36Y-82151-00-00 Fuse (15A-Blue)．フユーズ ; １５Ａ−ＢＬ |
36Y-82151-00-00 |
from US $2.98 |
||
|
32
|
32
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
33
|
33
5VU-82576-01-00 Sensor, Lean Angle |
5VU-82576-01-00 |
from US $82.07 |
||
| replacement | |||||
|
33
|
33
5VU-82576-03-00 SENSOR LEAN ANGLE |
5VU-82576-03-00 |
from US $80.69 |
||
|
34
|
34
91312-04025-00 Bolt |
91312-04025-00 |
from US $1.42 |
||
|
35
|
35
90201-047A2-00 Washer, Plateワツシヤ，プレート; |
90201-047A2-00 |
from US $1.70 |
||
|
36
|
36
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.98 |
||
|
37
|
37
5JJ-81950-20-00 Relay Assy (5JJ-20)リレーアセンブリ; |
5JJ-81950-20-00 |
from US $23.52 |
||
|
38
|
38
5JJ-81952-00-00 Holder, Relay．ホルダー，リレー; |
5JJ-81952-00-00 |
from US $5.38 |
||
|
39
|
39
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
39
|
39
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
40
|
40
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
40
|
40
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
41
|
41
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
41
|
41
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
42
|
42
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
42
|
42
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
43
|
43
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
43
|
43
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
44
|
44
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
44
|
44
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
45
|
45
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
45
|
45
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
46
|
46
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
46
|
46
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
47
|
47
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
47
|
47
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
48
|
48
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
48
|
48
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
49
|
49
90464-12009-00 Clamp |
90464-12009-00 |
from US $3.12 |
||
|
50
|
50
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
51
|
51
904-64360-04-00 Clamp |
904-64360-04-00 |
from US $8.50 |
||
|
52
|
52
90445-107A5-00 Hoseホース ; Ｌ３０ |
90445-107A5-00 |
US $2.69 |
||
| replacements | |||||
|
52
|
52
90445-10365-00
Hose
ホース ; Ｌ３０ |
90445-10365-00 |
— | ||
|
52
|
52
999-99999-99-00
Not Available
ホース ; Ｌ３０ |
999-99999-99-00 |
— | ||
|
53
|
53
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
53
|
53
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
54
|
54
904-64590-01-00 Clamp |
904-64590-01-00 |
from US $10.20 |
||
|
55
|
55
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
55
|
55
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
56
|
56
14B-82530-00-00 Stop Switch Assy |
14B-82530-00-00 |
from US $38.13 |
||
| replacement | |||||
|
56
|
56
14B-82530-01-00 Stop Switch Assy |
14B-82530-01-00 |
from US $29.53 |
||
|
57
|
57
14B-2144G-00-00 Stay, Stop Switchステー，ストツプスイツチ; |
14B-2144G-00-00 |
from US $7.08 |
||
|
58
|
58
90480-12607-00 Grommetグロメツト; |
90480-12607-00 |
from US $2.55 |
||
|
59
|
59
903-8706M-16-00 Collarカラー; |
903-8706M-16-00 |
from US $1.42 |
||
|
60
|
60
90159-06150-00 Screw, With Washer |
90159-06150-00 |
from US $2.55 |
||
| replacements | |||||
|
60
|
60
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
60
|
60
90159-06082-00 Screw, Panhead W/washer (22F) |
90159-06082-00 |
from US $2.55 |
||
