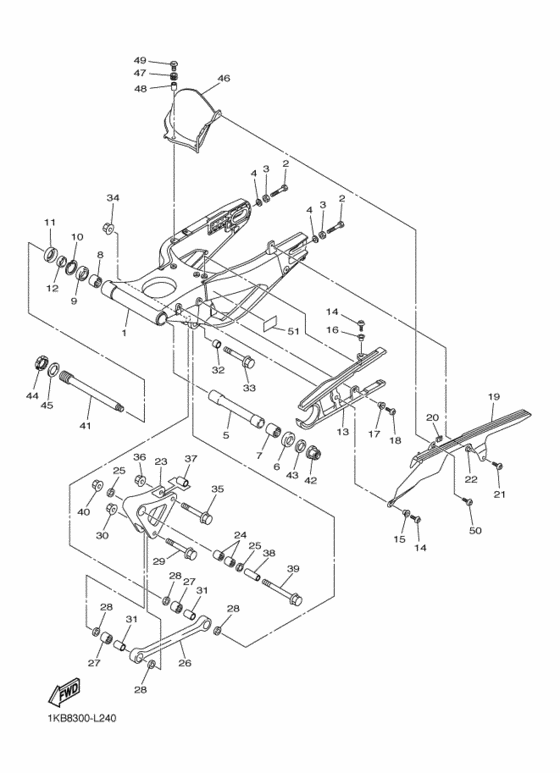

ﾘﾔｱ-ﾑ Diagram Yamaha YZF-R1 R1
- Year
- 2012
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 45B3
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- C
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-22110-00-P0 Rear Arm CompＭＢＬ２ |
14B-22110-00-P0 |
from US $1,643.80 |
||
|
2
|
2
90101-08013-00 Boltボルト，ヘキサゴン; |
90101-08013-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
90101-08286-00 Boltボルト，ヘキサゴン; |
90101-08286-00 |
from US $7.79 |
||
|
3
|
3
95302-08600-00 Nut, Hexagon |
95302-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
3
|
3
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
3
|
3
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
4
|
4
90201-08057-00 Washer, Plate |
90201-08057-00 |
from US $1.84 |
||
|
5
|
5
14B-22184-00-00 Bush |
14B-22184-00-00 |
from US $60.51 |
||
|
6
|
6
5VY-22128-00-00 Cover, Thrust 1 |
5VY-22128-00-00 |
from US $13.74 |
||
|
7
|
7
93317-52897-00 Bearing |
93317-52897-00 |
from US $26.64 |
||
|
8
|
8
93317-428U8-00 Bearing |
93317-428U8-00 |
from US $35.28 |
||
|
9
|
9
933-06972-02-00 Bearing |
933-06972-02-00 |
from US $33.86 |
||
|
10
|
10
990-09425-00-00 Circlipサークリツプ; |
990-09425-00-00 |
from US $1.56 |
||
|
11
|
11
931-06280-04-00 Oil Seal |
931-06280-04-00 |
from US $5.95 |
||
|
12
|
12
903-87220-23-00 Collar |
903-87220-23-00 |
from US $12.89 |
||
|
13
|
13
14B-22151-00-00 Seal, Guard |
14B-22151-00-00 |
from US $73.92 |
||
|
14
|
14
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.56 |
||
|
15
|
15
90387-062X0-00 Collar |
90387-062X0-00 |
from US $14.31 |
||
|
16
|
16
90387-06066-00 Collar |
90387-06066-00 |
from US $1.65 |
||
|
17
|
17
90387-06066-00 Collar |
90387-06066-00 |
from US $1.65 |
||
|
18
|
18
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.56 |
||
|
19
|
19
14B-22311-00-00 Case, Chain |
14B-22311-00-00 |
from US $25.22 |
||
|
20
|
20
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
20
|
20
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
21
|
21
90111-06083-00 Bolt, Hex. Socket Button |
90111-06083-00 |
from US $1.42 |
||
|
22
|
22
90387-07717-00 Collar |
90387-07717-00 |
from US $2 |
||
|
23
|
23
1KB-2217A-00-00 Arm, Relay |
1KB-2217A-00-00 |
from US $77.65 |
||
|
24
|
24
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
25
|
25
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
26
|
26
1KB-2217M-00-00 Arm 1 |
1KB-2217M-00-00 |
from US $31.88 |
||
|
27
|
27
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
28
|
28
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
29
|
29
90105-10017-00 Bolt, Flangeボルト，フランジ; |
90105-10017-00 |
from US $14.45 |
||
|
30
|
30
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
31
|
31
90387-1012A-00 Collar |
90387-1012A-00 |
from US $7.79 |
||
|
32
|
32
90387-1013U-00 Collar |
90387-1013U-00 |
from US $13.88 |
||
|
33
|
33
90105-10018-00 Bolt, Flangeボルト，フランジ; |
90105-10018-00 |
from US $15.44 |
||
|
34
|
34
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
35
|
35
90105-10017-00 Bolt, Flangeボルト，フランジ; |
90105-10017-00 |
from US $14.45 |
||
|
36
|
36
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
37
|
37
90387-1012A-00 Collar |
90387-1012A-00 |
from US $7.79 |
||
|
38
|
38
90387-10034-00 Collar |
90387-10034-00 |
from US $11.05 |
||
|
39
|
39
90105-10150-00 Bolt, Flange |
90105-10150-00 |
from US $5.38 |
||
|
40
|
40
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
41
|
41
14B-22141-00-00 Shaft, Pivot |
14B-22141-00-00 |
from US $82.32 |
||
|
42
|
42
90185-20008-00 Nut, Self-Locking |
90185-20008-00 |
from US $25.36 |
||
|
43
|
43
90201-20026-00 Washer, Plate |
90201-20026-00 |
from US $9.35 |
||
|
44
|
44
4C8-22252-00-00 Nut |
4C8-22252-00-00 |
from US $14.03 |
||
|
45
|
45
90201-30016-00 Washer, Plate |
90201-30016-00 |
from US $9.49 |
||
|
46
|
46
14B-21650-00-00 Rear Fender Comp |
14B-21650-00-00 |
from US $21.25 |
||
|
47
|
47
90480-12005-00 Grommet |
90480-12005-00 |
from US $1.84 |
||
|
48
|
48
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
49
|
49
90149-06302-00 Screw |
90149-06302-00 |
from US $3.83 |
||
|
50
|
50
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $1.70 |
||
|
51
|
51
45B-2218G-00-00 Label, Tire |
45B-2218G-00-00 |
US $3.26 |
||
