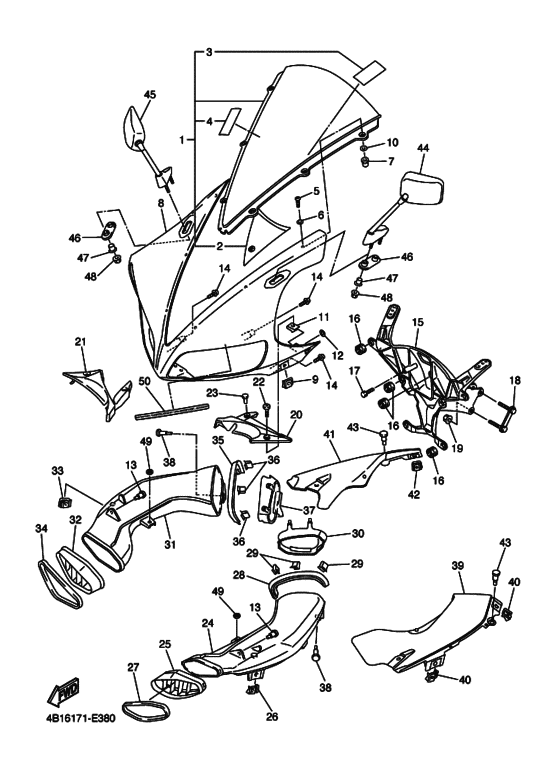

Cowling 1 Diagram Yamaha YZF-R1 R1S Limited Edition
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 4B16
- Sales region
- Europe (010)
- Базовая модель
- YZF-R1S YZFR1LEV
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-Y2881-20-00
Windshield
|
5VY-Y2881-20-00 |
— | ||
| replacement | |||||
|
1
|
1
5VY-Y2881-21-00 Windshield |
5VY-Y2881-21-00 |
US $202.23 |
||
|
2
|
2
5VY-2832P-00-00 Graphic, 1818 |
5VY-2832P-00-00 |
from US $48.05 |
||
|
3
|
3
5JW-2835Y-00-00 Label, Caution |
5JW-2835Y-00-00 |
from US $5.10 |
||
|
4
|
4
5JW-2835Y-10-00 Label, Caution |
5JW-2835Y-10-00 |
from US $5.10 |
||
|
5
|
5
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.56 |
||
|
6
|
6
90202-05123-00 Washer, Plate |
90202-05123-00 |
from US $2.41 |
||
|
7
|
7
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
8
|
8
5VY-2835G-00-P6
Body, Front Upper 1
MBM3 |
5VY-2835G-00-P6 |
— | ||
|
9
|
9
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
9
|
9
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
10
|
10
5JJ-2834W-00-00 Protector 2 |
5JJ-2834W-00-00 |
from US $2.41 |
||
|
11
|
11
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.98 |
||
|
12
|
12
5VY-2834V-00-00 Protector 1 |
5VY-2834V-00-00 |
from US $2.27 |
||
|
13
|
13
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.36 |
||
|
14
|
14
90160-05007-00 Screw, Round Tapping |
90160-05007-00 |
from US $2.13 |
||
|
15
|
15
5VY-28356-00-00 Stay 1 |
5VY-28356-00-00 |
from US $233.49 |
||
|
16
|
16
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
17
|
17
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
18
|
18
4XV-28336-00-00 Plate |
4XV-28336-00-00 |
from US $15.30 |
||
|
19
|
19
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
19
|
19
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
20
|
20
5VY-2837L-01-00 Panel, Console 1 |
5VY-2837L-01-00 |
from US $16.58 |
||
|
21
|
21
5VY-2837M-01-00 Panel, Console 2 |
5VY-2837M-01-00 |
from US $16.58 |
||
|
22
|
22
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.70 |
||
|
23
|
23
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.36 |
||
|
24
|
24
5VY-2838N-00-P3 Duct 1SMX |
5VY-2838N-00-P3 |
from US $171.32 |
||
|
25
|
25
5VY-2837N-00-00 Grill, Air Intake 1 |
5VY-2837N-00-00 |
from US $14.45 |
||
|
26
|
26
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
26
|
26
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
27
|
27
5VY-28346-00-00 Mole 2 |
5VY-28346-00-00 |
from US $6.23 |
||
|
28
|
28
5VY-2834E-00-00 Damper 3 |
5VY-2834E-00-00 |
from US $18.56 |
||
|
29
|
29
1FK-2171H-00-00 Guide |
1FK-2171H-00-00 |
from US $4.96 |
||
|
30
|
30
5VY-28371-00-00 Damper |
5VY-28371-00-00 |
from US $16.58 |
||
|
31
|
31
5VY-2838R-00-P3 Duct 2SMX |
5VY-2838R-00-P3 |
from US $171.32 |
||
|
32
|
32
5VY-2837R-00-00 Grill, Air Intake 2 |
5VY-2837R-00-00 |
from US $14.45 |
||
|
33
|
33
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
33
|
33
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
34
|
34
5VY-28346-00-00 Mole 2 |
5VY-28346-00-00 |
from US $6.23 |
||
|
35
|
35
5VY-2834F-00-00 Damper |
5VY-2834F-00-00 |
from US $18.56 |
||
|
36
|
36
1FK-2171H-00-00 Guide |
1FK-2171H-00-00 |
from US $4.96 |
||
|
37
|
37
5VY-28372-00-00 Damper |
5VY-28372-00-00 |
from US $16.58 |
||
|
38
|
38
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.36 |
||
|
39
|
39
5VY-2837V-00-00 Grill, Air Outlet 1 |
5VY-2837V-00-00 |
from US $24.23 |
||
|
40
|
40
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
40
|
40
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
41
|
41
5VY-2837W-00-00 Grill, Air Outlet 2 |
5VY-2837W-00-00 |
from US $24.23 |
||
|
42
|
42
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
42
|
42
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
43
|
43
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.70 |
||
|
44
|
44
5VY-26280-00-00 Rear View Mirror Assy (Left) |
5VY-26280-00-00 |
from US $102.10 |
||
|
45
|
45
5VY-26290-00-00 Rear View Mirror Assy (Right) |
5VY-26290-00-00 |
from US $102.10 |
||
|
46
|
46
5VY-26298-00-00 Plate, Mirror Fitting 1 |
5VY-26298-00-00 |
from US $1.84 |
||
|
47
|
47
903-87063-72-00
Collar
|
903-87063-72-00 |
— | ||
| replacement | |||||
|
47
|
47
903-87061-06-00 Collar |
903-87061-06-00 |
from US $1.70 |
||
|
48
|
48
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
49
|
49
5SL-84753-00-00 Damper |
5SL-84753-00-00 |
from US $1.70 |
||
|
50
|
50
5VY-2839H-00-00
Emblem 1
|
5VY-2839H-00-00 |
— | ||
