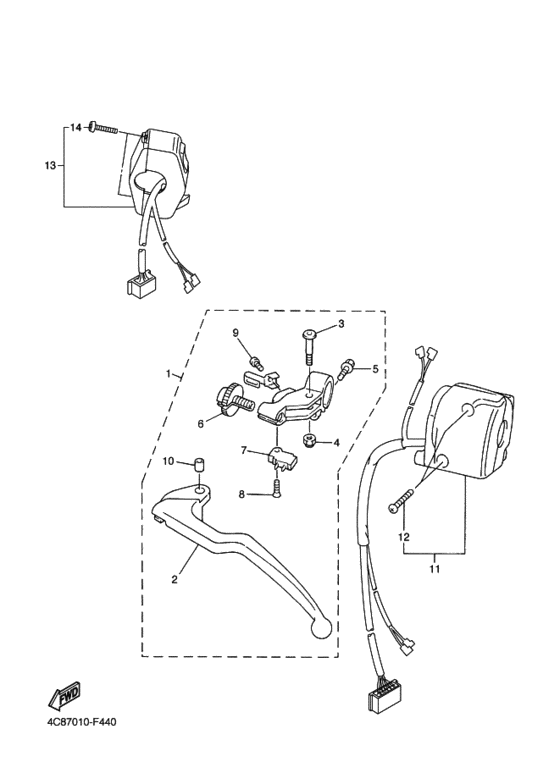

Handle switch & lever Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 4C87
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-82910-15-00 Lever Holder Assembly (Left)レバーホルダアセンブリ ; レフト |
4XV-82910-15-00 |
from US $160.27 |
||
|
2
|
2
4XV-83912-11-00 Lever 1．レバー １; |
4XV-83912-11-00 |
from US $25.22 |
||
|
3
|
3
2C0-83945-00-00 Bolt, Lever．ボルト，レバー; |
2C0-83945-00-00 |
from US $5.38 |
||
|
4
|
4
956-07062-00-00
Nut, U Flange
．ナツト，セルフロツキング; |
956-07062-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95604-06200-00 Nut, U Flange．ナツト，セルフロツキング; |
95604-06200-00 |
from US $1.56 |
||
|
5
|
5
950-27060-20-00 Bolt, Flange．ボルト，フランジ; |
950-27060-20-00 |
from US $1.42 |
||
|
6
|
6
5LV-83951-00-00 Bolt, Cable Adjusting．ボルト，ケーブルアジヤステイング; |
5LV-83951-00-00 |
from US $36.61 |
||
|
7
|
7
4XV-82917-01-00 Switch．スイツチ; |
4XV-82917-01-00 |
from US $20.18 |
||
|
8
|
8
98707-03016-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-03016-00 |
from US $1.98 |
||
|
9
|
9
98507-04010-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-04010-00 |
from US $1.21 |
||
|
10
|
10
5JJ-83913-00-00 Collar, Lever 1．カラー，レバー １; |
5JJ-83913-00-00 |
from US $5.81 |
||
|
11
|
11
4C8-83973-00-00
Switch, Handle 3
|
4C8-83973-00-00 |
— | ||
|
12
|
12
98507-05025-00 Screw, Pan Head(4My)．スクリユ，パンヘツド; |
98507-05025-00 |
from US $1.42 |
||
|
13
|
13
4C8-83975-00-00 Switch, Handle 2 |
4C8-83975-00-00 |
from US $98.37 |
||
|
14
|
14
98507-05022-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05022-00 |
from US $1.98 |
||
| replacement | |||||
|
14
|
14
90157-05057-00 Screw, Pan Head(41N)．スクリユ，パンヘツド; |
90157-05057-00 |
from US $1.98 |
||
