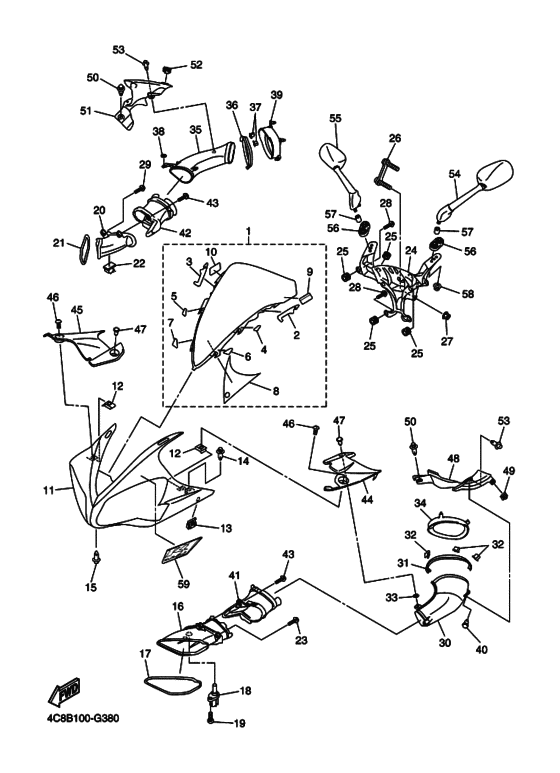

Cowling 1 Diagram Yamaha YZF-R1 R1
- Year
- 2008
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 4C8D
- Sales region
- Europe (010)
- Базовая модель
- YZF-R1 YZFR1X
- Engine Capacity
- 1000
- Color Variant
- B
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4C8-Y2881-20-00 Windshield |
4C8-Y2881-20-00 |
US $193.62 |
||
|
2
|
2
4C8-28428-00-00 Seal 1 |
4C8-28428-00-00 |
from US $5.29 |
||
|
3
|
3
4C8-28429-00-00 Seal 2 |
4C8-28429-00-00 |
from US $5.29 |
||
|
4
|
4
4C8-2844E-00-00 Seal 3 |
4C8-2844E-00-00 |
from US $2.50 |
||
|
5
|
5
4C8-2846F-00-00 Seal 4 |
4C8-2846F-00-00 |
US $2.84 |
||
|
6
|
6
4C8-2847F-00-00 Seal 5 |
4C8-2847F-00-00 |
from US $4.11 |
||
|
7
|
7
4C8-2848F-00-00 Seal 6 |
4C8-2848F-00-00 |
from US $2.64 |
||
|
8
|
8
4C8-2832P-00-00 Graphic, 1818 |
4C8-2832P-00-00 |
US $115.94 |
||
|
9
|
9
5JW-2835Y-00-00 Label, Caution |
5JW-2835Y-00-00 |
from US $5.10 |
||
|
10
|
10
5JW-2835Y-10-00 Label, Caution |
5JW-2835Y-10-00 |
from US $5.10 |
||
|
11
|
11
4C8-2835G-00-P2 Body, Front Upper 1UR FOR BWC1 |
4C8-2835G-00-P2 |
US $266.65 |
||
|
12
|
12
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
12
|
12
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
13
|
13
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
13
|
13
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
14
|
14
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
15
|
15
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
16
|
16
4C8-2837N-00-00 Grill, Air Intake 1 |
4C8-2837N-00-00 |
from US $13.18 |
||
|
17
|
17
4C8-28345-00-00 Mole 1 |
4C8-28345-00-00 |
from US $8.36 |
||
|
18
|
18
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
19
|
19
97707-50116-00 Screw, Pan Tap.4 |
97707-50116-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
97707-50516-00 Screw, Tapping |
97707-50516-00 |
from US $1.04 |
||
|
20
|
20
4C8-2837R-00-00 Grill, Air Intake 2 |
4C8-2837R-00-00 |
from US $13.18 |
||
|
21
|
21
4C8-28346-00-00 Mole 2 |
4C8-28346-00-00 |
from US $8.36 |
||
|
22
|
22
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
23
|
23
90160-05007-00 Screw, Round Tapping |
90160-05007-00 |
from US $2.13 |
||
|
24
|
24
4C8-28356-00-00 Stay 1 |
4C8-28356-00-00 |
from US $360.10 |
||
|
25
|
25
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
26
|
26
4C8-28336-00-00 Plate |
4C8-28336-00-00 |
from US $12.33 |
||
|
27
|
27
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
27
|
27
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
28
|
28
90160-05006-00 Screw, Round Tapping |
90160-05006-00 |
from US $1.34 |
||
|
29
|
29
90160-05007-00 Screw, Round Tapping |
90160-05007-00 |
from US $2.13 |
||
|
30
|
30
4C8-2838N-00-P5 Duct 1UR FOR BWC1 |
4C8-2838N-00-P5 |
from US $128.77 |
||
|
31
|
31
4C8-2834E-00-00 Damper 3 |
4C8-2834E-00-00 |
from US $16.72 |
||
| replacement | |||||
|
31
|
31
4C8-2834E-01-00 |
4C8-2834E-01-00 |
US $17.32 |
||
|
32
|
32
1FK-2171H-00-00 Guide |
1FK-2171H-00-00 |
from US $4.96 |
||
|
33
|
33
5VY-2834V-00-00 Protector 1 |
5VY-2834V-00-00 |
from US $2.27 |
||
|
34
|
34
4C8-28371-00-00 Damper |
4C8-28371-00-00 |
from US $21.39 |
||
| replacement | |||||
|
34
|
34
4C8-28371-01-00 |
4C8-28371-01-00 |
US $18.99 |
||
|
35
|
35
4C8-2838R-00-P5 Duct 2UR FOR BWC1 |
4C8-2838R-00-P5 |
from US $128.77 |
||
|
36
|
36
4C8-2834F-00-00
Damper
|
4C8-2834F-00-00 |
— | ||
| replacement | |||||
|
36
|
36
4C8-2834F-01-00 Damper |
4C8-2834F-01-00 |
US $17.32 |
||
|
37
|
37
1FK-2171H-00-00 Guide |
1FK-2171H-00-00 |
from US $4.96 |
||
|
38
|
38
5VY-2834V-00-00 Protector 1 |
5VY-2834V-00-00 |
from US $2.27 |
||
|
39
|
39
4C8-28372-00-00 Damper |
4C8-28372-00-00 |
from US $16.94 |
||
| replacement | |||||
|
39
|
39
4C8-28372-01-00 |
4C8-28372-01-00 |
US $18.85 |
||
|
40
|
40
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
41
|
41
4C8-2838T-00-00 Duct 3 |
4C8-2838T-00-00 |
from US $26.95 |
||
| replacement | |||||
|
41
|
41
4C8-2838T-01-00 |
4C8-2838T-01-00 |
US $28.48 |
||
|
42
|
42
4C8-2838U-00-00 Duct 4 |
4C8-2838U-00-00 |
from US $24.26 |
||
| replacement | |||||
|
42
|
42
4C8-2838U-01-00 |
4C8-2838U-01-00 |
US $28.48 |
||
|
43
|
43
90160-05007-00 Screw, Round Tapping |
90160-05007-00 |
from US $2.13 |
||
|
44
|
44
4C8-2837L-00-00 Panel, Console 1 |
4C8-2837L-00-00 |
from US $12.33 |
||
|
45
|
45
4C8-2837M-00-00 Panel, Console 2 |
4C8-2837M-00-00 |
from US $12.33 |
||
|
46
|
46
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.70 |
||
|
47
|
47
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
48
|
48
4C8-2837V-00-00 Grill, Air Outlet 1 |
4C8-2837V-00-00 |
from US $9.92 |
||
|
49
|
49
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
49
|
49
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
50
|
50
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
51
|
51
4C8-2837W-00-00 Grill, Air Outlet 2 |
4C8-2837W-00-00 |
from US $9.07 |
||
|
52
|
52
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
52
|
52
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
53
|
53
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
54
|
54
4C8-26280-00-00 Rear View Mirror Assy (Left)Rear view mirror assy (left) |
4C8-26280-00-00 |
from US $92.98 |
||
|
55
|
55
4C8-26290-00-00 Rear View Mirror Assy (Right) |
4C8-26290-00-00 |
from US $92.98 |
||
|
56
|
56
4C8-26298-00-00 Plate, Mirror Fitting 1 |
4C8-26298-00-00 |
from US $2.69 |
||
|
57
|
57
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.34 |
||
|
58
|
58
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
59
|
59
4C8-28328-20-00 EmblemFOR BWC1 |
4C8-28328-20-00 |
US $20.97 |
||
