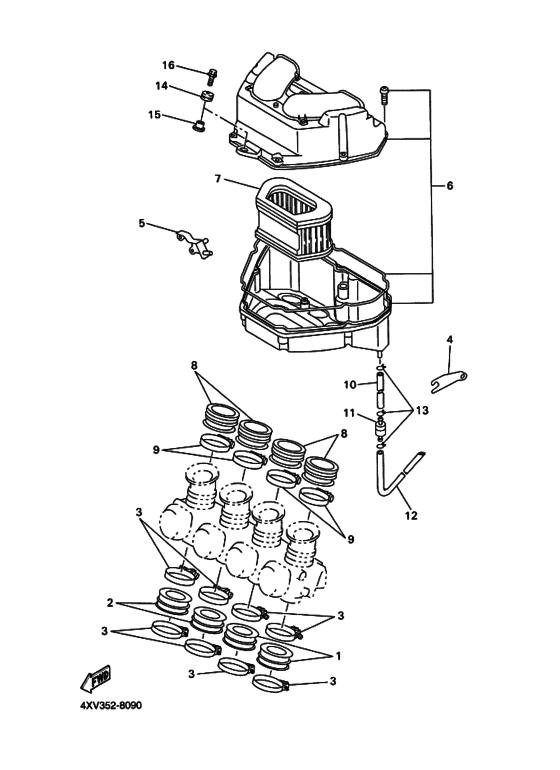

Intake Diagram Yamaha YZF-R1 R1
- Year
- 1998
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 4XV1
- Sales region
- Europe (050)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-13597-00-00 Joint, Carburetor 3 |
4XV-13597-00-00 |
from US $16.72 |
||
|
2
|
2
4XV-13598-00-00 Joint, Carburetor 4 |
4XV-13598-00-00 |
from US $16.72 |
||
|
3
|
3
90450-57044-00 Hose Clamp Assy |
90450-57044-00 |
from US $7.08 |
||
| replacement | |||||
|
3
|
3
904-50570-16-00 Hose Clamp |
904-50570-16-00 |
from US $7.08 |
||
|
4
|
4
4XV-14414-00-00 Stay 2 |
4XV-14414-00-00 |
US $2.56 |
||
|
5
|
5
4XV-14413-00-00
Stay
|
4XV-14413-00-00 |
— | ||
|
6
|
6
4XV-14401-00-00
Air Cleaner Case Assembly
|
4XV-14401-00-00 |
— | ||
|
7
|
7
4XV-14451-00-00 Element, Air Cleaner |
4XV-14451-00-00 |
from US $59.67 |
||
|
8
|
8
4XV-14453-00-00 Joint, Air Cleaner 1 |
4XV-14453-00-00 |
from US $7.99 |
||
| replacement | |||||
|
8
|
8
5JJ-14453-00-00 Joint, Air Cleaner 1 |
5JJ-14453-00-00 |
from US $7.88 |
||
|
9
|
9
90450-75083-00 Hose Clamp Assy |
90450-75083-00 |
US $8.96 |
||
|
10
|
10
90445-11452-00 Hose (L100) |
90445-11452-00 |
from US $3.68 |
||
| replacement | |||||
|
10
|
10
90445-11293-00 Hose (L100) |
90445-11293-00 |
from US $3.68 |
||
|
11
|
11
4X7-2149Y-00-00 Filter Assy |
4X7-2149Y-00-00 |
from US $11.33 |
||
|
12
|
12
90445-113F8-00 Hose (L460) |
90445-113F8-00 |
from US $12.61 |
||
| replacement | |||||
|
12
|
12
904-45110-83-00 Hose (L800) |
904-45110-83-00 |
from US $12.61 |
||
|
13
|
13
904-67100-41-00 Clip |
904-67100-41-00 |
from US $1.28 |
||
| replacements | |||||
|
13
|
13
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
13
|
13
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
14
|
14
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
15
|
15
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
15
|
15
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
16
|
16
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
