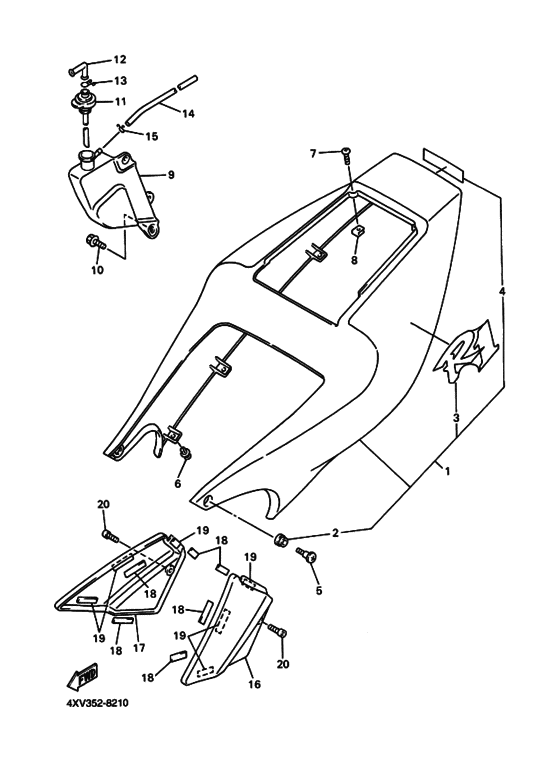

Side cover Diagram Yamaha YZF-R1 R1
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4XV1
- Sales region
- Europe (050)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- B
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-Y2171-00-P0
Cover, Side 1
UR BWC1 |
4XV-Y2171-00-P0 |
— | ||
|
1
|
1
4XV-Y2171-10-P1
Cover, Side 1
UR DPBMC |
4XV-Y2171-10-P1 |
— | ||
|
2
|
2
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
2
|
2
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
3
|
3
4XV-21781-00-00
Emblem 1
UR FOR BWC1 |
4XV-21781-00-00 |
— | ||
|
3
|
3
4XV-21781-10-00
Emblem 1
UR FOR DPBMC |
4XV-21781-10-00 |
— | ||
|
4
|
4
992-31000-80-00
Emblem, Yamaha
UR FOR DPBMC |
992-31000-80-00 |
— | ||
| replacement | |||||
|
4
|
4
99241-00080-00 Emblem, YamahaUR FOR DPBMC |
99241-00080-00 |
from US $8.08 |
||
|
4
|
4
992-34000-80-00
Emblem, Yamaha
UR FOR BWC1 |
992-34000-80-00 |
— | ||
| replacement | |||||
|
4
|
4
99244-00080-00 Emblem, YamahaUR FOR BWC1 |
99244-00080-00 |
from US $8.64 |
||
|
5
|
5
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
6
|
6
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
7
|
7
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
8
|
8
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
9
|
9
4XV-21871-00-00 Tank, Recovery |
4XV-21871-00-00 |
from US $50.70 |
||
|
10
|
10
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
11
|
11
4XV-21875-00-00 Cap |
4XV-21875-00-00 |
from US $9.63 |
||
| replacement | |||||
|
11
|
11
1B7-21875-00-00 Cap |
1B7-21875-00-00 |
from US $9.63 |
||
|
12
|
12
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $3.98 |
||
|
13
|
13
90467-11019-00 Clip |
90467-11019-00 |
US $1.70 |
||
| replacements | |||||
|
13
|
13
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
13
|
13
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
14
|
14
90445-086J6-00 Hose (L1040) |
90445-086J6-00 |
US $16 |
||
|
15
|
15
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
16
|
16
4XV-24129-00-0X
Cover, Side 1
VRC1 FOR BWC1 |
4XV-24129-00-0X |
— | ||
|
16
|
16
4XV-24129-00-1X
Cover, Side 1
MBL2 FOR DPBMC |
4XV-24129-00-1X |
— | ||
|
17
|
17
4XV-24139-00-0X
Cover, Side 2
VRC1 FOR BWC1 |
4XV-24139-00-0X |
— | ||
|
17
|
17
4XV-24139-00-1X Cover, Side 2MBL2 FOR DPBMC |
4XV-24139-00-1X |
US $122.31 |
||
|
18
|
18
4XV-2411G-00-00 Hook, Side CoverHook, side cover |
4XV-2411G-00-00 |
from US $6.66 |
||
|
19
|
19
4XV-2411H-00-00
Hook, Side Cover 2
|
4XV-2411H-00-00 |
— | ||
|
20
|
20
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
20
|
20
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
