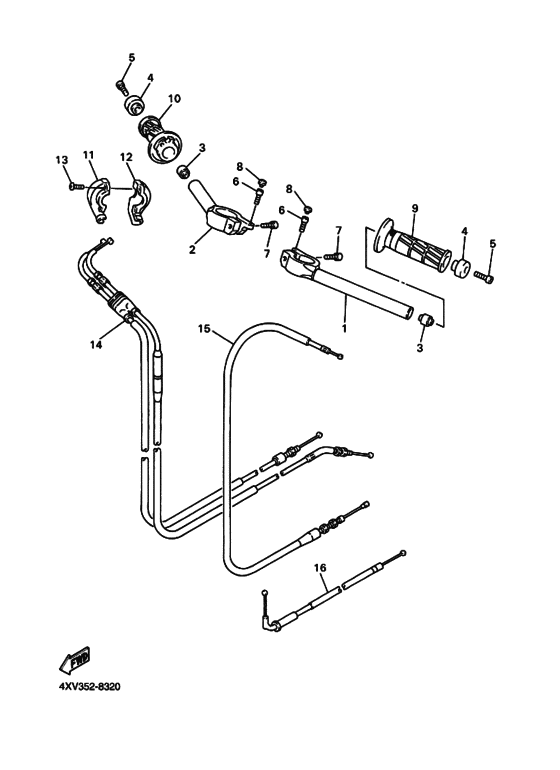

Steering handle & cable Diagram Yamaha YZF-R1 R1
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4XV1
- Sales region
- Europe (050)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- B
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-26121-00-00 Handlebar (Left) |
4XV-26121-00-00 |
US $260.13 |
||
|
2
|
2
4XV-26122-00-00 Handlebar (Right) |
4XV-26122-00-00 |
from US $197.42 |
||
|
3
|
3
4XV-23434-00-00
Holder, Damper
|
4XV-23434-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4XV-23434-01-00 HOLDER, DAMPER |
4XV-23434-01-00 |
from US $20.99 |
||
|
4
|
4
4XV-26246-00-00 End, Grip |
4XV-26246-00-00 |
from US $18.56 |
||
| replacement | |||||
|
4
|
4
4XV-26246-10-00 End, Grip |
4XV-26246-10-00 |
from US $18.56 |
||
|
5
|
5
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
6
|
6
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
7
|
7
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
8
|
8
2H9-23469-00-00 Plug |
2H9-23469-00-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
903-38050-10-00 Plug |
903-38050-10-00 |
from US $1.28 |
||
|
9
|
9
4YR-26241-00-00 Grip (Left) |
4YR-26241-00-00 |
from US $14.47 |
||
| replacements | |||||
|
9
|
9
4YR-26241-02-00
Grip (Left)
|
4YR-26241-02-00 |
— | ||
|
9
|
9
4YR-26241-03-00 Grip |
4YR-26241-03-00 |
from US $8.60 |
||
|
10
|
10
4YR-26240-00-00 Grip Assy |
4YR-26240-00-00 |
from US $33.05 |
||
| replacements | |||||
|
10
|
10
4YR-26240-02-00 Grip Assy |
4YR-26240-02-00 |
from US $33.44 |
||
|
10
|
10
4YR-26240-03-00 GRIP ASSY |
4YR-26240-03-00 |
from US $30.82 |
||
|
11
|
11
3XW-26281-01-00 Cap, Grip Upper |
3XW-26281-01-00 |
from US $22.24 |
||
|
12
|
12
3XW-26282-01-00 Cap, Grip Under |
3XW-26282-01-00 |
from US $12.90 |
||
|
13
|
13
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
14
|
14
4XV-26302-00-00 Throttle Cable Assy |
4XV-26302-00-00 |
from US $89.78 |
||
| replacement | |||||
|
14
|
14
4XV-26302-01-00 Throttle Cable Assy |
4XV-26302-01-00 |
from US $89.69 |
||
|
15
|
15
4XV-26335-00-00 Cable, clutch |
4XV-26335-00-00 |
from US $57.89 |
||
| replacement | |||||
|
15
|
15
5JJ-26335-00-00 Cable, clutch |
5JJ-26335-00-00 |
from US $57.89 |
||
|
16
|
16
4XV-26331-00-00 Cable, Starter 1 |
4XV-26331-00-00 |
US $25.11 |
||
| replacement | |||||
|
16
|
16
4XV-26331-01-00
Cable, Starter 1
|
4XV-26331-01-00 |
— | ||
