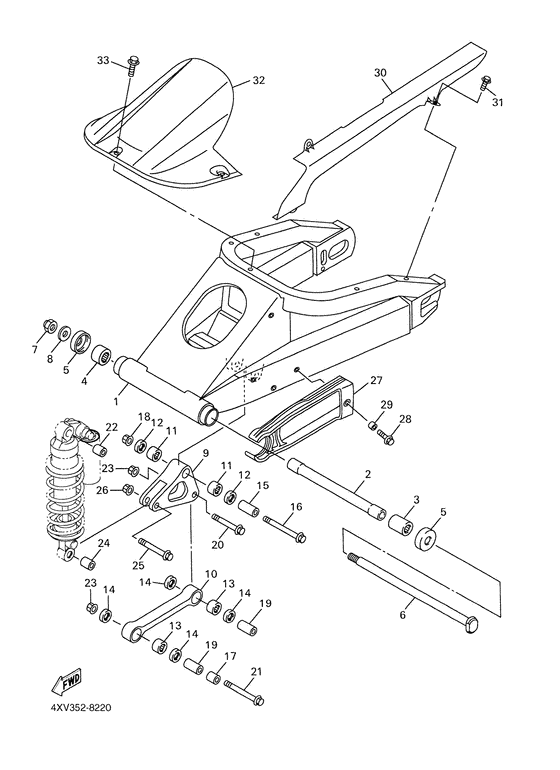

Rear arm & suspension Diagram Yamaha YZF-R1 R1
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4XV1
- Sales region
- Italy (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XV-22110-00-00 Rear Arm Comp |
4XV-22110-00-00 |
US $2,020.30 |
||
| replacement | |||||
|
01
|
01
4XV-22110-01-00 Rear Arm Comp |
4XV-22110-01-00 |
US $1,686.49 |
||
|
02
|
02
4XV-22184-00-00 Bush |
4XV-22184-00-00 |
from US $80.87 |
||
|
03
|
03
93315-42523-00 Bearing |
93315-42523-00 |
from US $23.80 |
||
|
04
|
04
93315-42536-00 Bearing |
93315-42536-00 |
from US $19.13 |
||
| replacement | |||||
|
04
|
04
93317-425B7-00 BEARING |
93317-425B7-00 |
from US $19.28 |
||
|
05
|
05
3FV-22128-00-00 Cover, Thrust 1 |
3FV-22128-00-00 |
from US $12.75 |
||
|
06
|
06
4FN-22141-00-00 Shaft, Pivot |
4FN-22141-00-00 |
from US $54.22 |
||
|
07
|
07
90185-18104-00 Nut, Self-Locking |
90185-18104-00 |
from US $8.22 |
||
| replacement | |||||
|
07
|
07
901-85180-09-00 Nut, Self-Locking |
901-85180-09-00 |
from US $8.22 |
||
|
08
|
08
90201-186M4-00 Washer, Plate |
90201-186M4-00 |
from US $9.07 |
||
| replacement | |||||
|
08
|
08
90201-18264-00 Washer, Plate (5K7) |
90201-18264-00 |
from US $9.07 |
||
|
09
|
09
4XV-2217A-00-00 Arm, Relay |
4XV-2217A-00-00 |
US $191.05 |
||
|
10
|
10
4XV-2217M-00-00 Arm 1 |
4XV-2217M-00-00 |
from US $79.60 |
||
|
11
|
11
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
12
|
12
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
13
|
13
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
14
|
14
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
15
|
15
90387-1012B-00 Collar |
90387-1012B-00 |
from US $9.21 |
||
|
16
|
16
90105-10727-00 Bolt, Flange |
90105-10727-00 |
from US $4.11 |
||
|
17
|
17
90387-1013U-00 Collar |
90387-1013U-00 |
from US $13.88 |
||
|
18
|
18
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
19
|
19
90387-1012A-00 Collar |
90387-1012A-00 |
from US $7.79 |
||
|
20
|
20
90105-10402-00 Bolt, Flange |
90105-10402-00 |
from US $3.83 |
||
|
21
|
21
90105-10376-00 Bolt, Flange |
90105-10376-00 |
from US $6.23 |
||
|
22
|
22
90387-1013U-00 Collar |
90387-1013U-00 |
from US $13.88 |
||
|
23
|
23
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
24
|
24
90387-1012A-00 Collar |
90387-1012A-00 |
from US $7.79 |
||
|
25
|
25
90105-10402-00 Bolt, Flange |
90105-10402-00 |
from US $3.83 |
||
|
26
|
26
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
27
|
27
4XV-22151-00-00
Seal, Guard
|
4XV-22151-00-00 |
— | ||
|
28
|
28
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.34 |
||
| replacement | |||||
|
28
|
28
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
29
|
29
903-87063-72-00
Collar
|
903-87063-72-00 |
— | ||
| replacement | |||||
|
29
|
29
903-87061-06-00 Collar |
903-87061-06-00 |
from US $1.70 |
||
|
30
|
30
4XV-22311-00-00
Case, Chain
|
4XV-22311-00-00 |
— | ||
| replacement | |||||
|
30
|
30
4XV-22311-01-00
Case, Chain
|
4XV-22311-01-00 |
— | ||
|
31
|
31
90119-06052-00 Bolt, With Washer |
90119-06052-00 |
from US $1.35 |
||
| replacement | |||||
|
31
|
31
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
32
|
32
4XV-21650-00-P0
Rear Fender Comp
Vrc1 for bwc1 |
4XV-21650-00-P0 |
— | ||
| replacement | |||||
|
32
|
32
999-99031-54-00
Rear Fender Comp
Vrc1 for bwc1 |
999-99031-54-00 |
— | ||
|
32
|
32
4XV-21650-00-P1
Rear Fender Comp
Dpbmc |
4XV-21650-00-P1 |
— | ||
| replacement | |||||
|
32
|
32
999-99031-55-00
Rear Fender Comp
Dpbmc |
999-99031-55-00 |
— | ||
|
33
|
33
901-19060-94-00
Bolt, With Washer
|
901-19060-94-00 |
— | ||
| replacement | |||||
|
33
|
33
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
