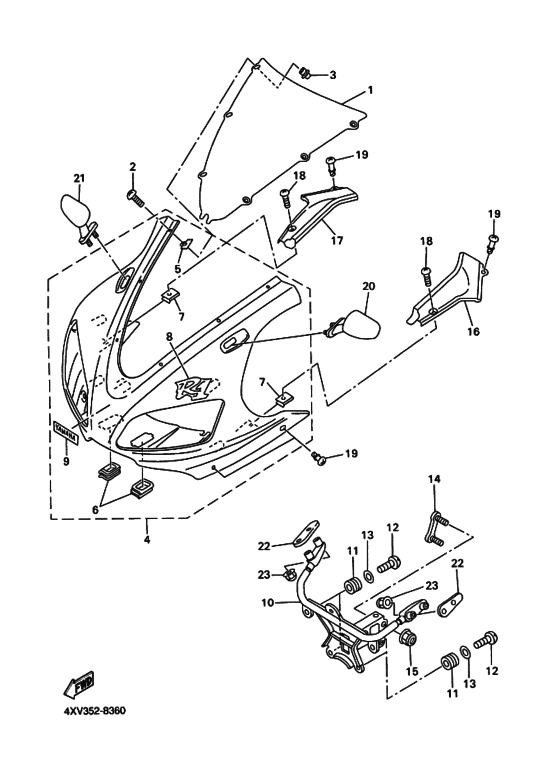

Cowling 1 Diagram Yamaha YZF-R1 R1
- Year
- 1998
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 4XV6
- Sales region
- Europe (010)
- Базовая модель
- YZF-R1 YZF-R1K
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-28381-10-00
Windshield
|
4XV-28381-10-00 |
— | ||
| replacement | |||||
|
1
|
1
4XV-28381-11-00
Windshield
|
4XV-28381-11-00 |
— | ||
|
2
|
2
90150-05023-00 Screw, Round Head |
90150-05023-00 |
from US $1.94 |
||
|
3
|
3
901-79055-23-00 Nut |
901-79055-23-00 |
from US $2.99 |
||
|
4
|
4
4XV-Y283G-00-0X
Body, Front Upper 1
UR BWC1/VRC1 |
4XV-Y283G-00-0X |
— | ||
|
5
|
5
4FM-2834W-00-00 Protector 2 |
4FM-2834W-00-00 |
from US $1.13 |
||
|
6
|
6
4XV-28349-00-00
Cap
|
4XV-28349-00-00 |
— | ||
|
7
|
7
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.80 |
||
|
8
|
8
4XV-28315-00-00
Emblem
UR FOR BWC1 |
4XV-28315-00-00 |
— | ||
|
10
|
10
4XV-28356-00-00 Stay 1 |
4XV-28356-00-00 |
from US $407.97 |
||
|
11
|
11
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.80 |
||
|
12
|
12
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
12
|
12
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.65 |
||
|
13
|
13
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.65 |
||
|
14
|
14
4XV-28336-00-00 Plate |
4XV-28336-00-00 |
from US $13.02 |
||
|
15
|
15
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.09 |
||
| replacement | |||||
|
15
|
15
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.09 |
||
|
16
|
16
4XV-2837L-00-00
Panel, Console 1
|
4XV-2837L-00-00 |
— | ||
|
17
|
17
4XV-2837M-00-00 Panel, Console 2 |
4XV-2837M-00-00 |
US $160.67 |
||
|
18
|
18
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.65 |
||
|
19
|
19
3XV-28386-00-00 Head |
3XV-28386-00-00 |
from US $12.15 |
||
|
20
|
20
4YR-26280-01-00 Rear View Mirror Assy(Left)Rear view mirror assy (left) |
4YR-26280-01-00 |
from US $82.73 |
||
|
21
|
21
4YR-26290-01-00 Rear View Mirror Assy(Right) |
4YR-26290-01-00 |
from US $82.73 |
||
|
22
|
22
4SV-26298-00-00 Plate, Mirror Fitting 1 |
4SV-26298-00-00 |
from US $8.98 |
||
|
23
|
23
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.50 |
||
