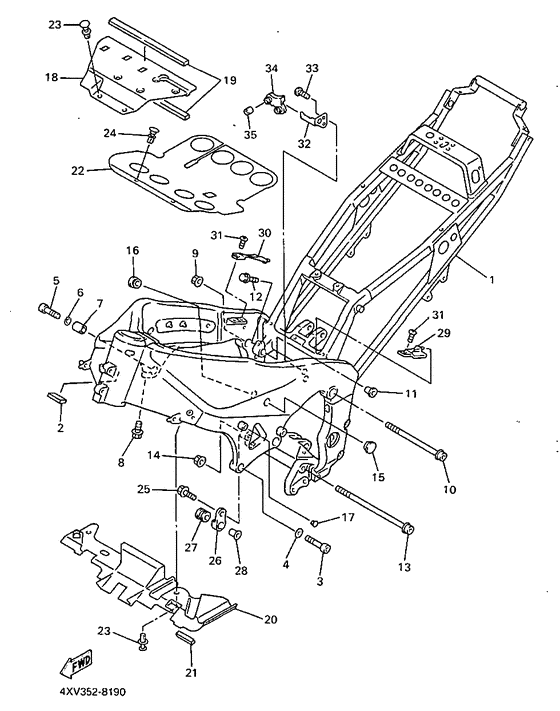

Frame Diagram Yamaha YZF-R1 R1
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EG1
- Sales region
- France (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XV-21110-00-00
Frame Comp
|
4XV-21110-00-00 |
— | ||
|
02
|
02
1KT-21746-00-00 Damper |
1KT-21746-00-00 |
from US $1.03 |
||
| replacement | |||||
|
02
|
02
3XV-21717-00-00 Damper |
3XV-21717-00-00 |
from US $2.09 |
||
|
03
|
03
91314-10040-00 Bolt, Hexagon Socket Head |
91314-10040-00 |
from US $3.24 |
||
|
04
|
04
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $0.90 |
||
| replacement | |||||
|
04
|
04
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $0.90 |
||
|
05
|
05
91314-12055-00 Bolt, Hexagon Socket Head |
91314-12055-00 |
from US $5.38 |
||
|
06
|
06
92907-12600-00 Washer, Plate |
92907-12600-00 |
from US $1.35 |
||
|
07
|
07
90387-1312P-00 Collar |
90387-1312P-00 |
from US $12.42 |
||
|
08
|
08
95027-08035-00 Bolt, Flange |
95027-08035-00 |
from US $1.50 |
||
|
09
|
09
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.02 |
||
|
10
|
10
90109-104G5-00 Bolt |
90109-104G5-00 |
from US $15.55 |
||
|
11
|
11
90387-1112F-00 Collar |
90387-1112F-00 |
US $12.08 |
||
|
12
|
12
95027-08035-00 Bolt, Flange |
95027-08035-00 |
from US $1.50 |
||
|
13
|
13
90109-104G5-00 Bolt |
90109-104G5-00 |
from US $15.55 |
||
|
14
|
14
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.02 |
||
|
15
|
15
90338-15202-00 Plug (2Gh) |
90338-15202-00 |
from US $3.29 |
||
|
16
|
16
90338-18266-00 Plug |
90338-18266-00 |
from US $3.29 |
||
|
17
|
17
90338-07124-00 Plug |
90338-07124-00 |
from US $1.94 |
||
|
18
|
18
4XV-2117M-00-00
Cover 2
|
4XV-2117M-00-00 |
— | ||
|
19
|
19
4XV-28371-00-00
Damper
|
4XV-28371-00-00 |
— | ||
|
20
|
20
4XV-2137Y-00-00 Guide, Air |
4XV-2137Y-00-00 |
US $52.63 |
||
| replacement | |||||
|
20
|
20
4XV-2137Y-01-00 Guide, Air |
4XV-2137Y-01-00 |
from US $15.55 |
||
|
21
|
21
1KT-21746-00-00 Damper |
1KT-21746-00-00 |
from US $1.03 |
||
| replacement | |||||
|
21
|
21
3XV-21717-00-00 Damper |
3XV-21717-00-00 |
from US $2.09 |
||
|
22
|
22
4XV-2117F-00-00
Cover
|
4XV-2117F-00-00 |
— | ||
|
23
|
23
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.80 |
||
|
24
|
24
90269-07084-00 Rivet |
90269-07084-00 |
from US $2.64 |
||
|
25
|
25
95827-08025-00 Bolt, Flange |
95827-08025-00 |
from US $0.90 |
||
| replacement | |||||
|
25
|
25
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $0.90 |
||
|
26
|
26
4XV-21446-00-00 Stay, Muffler 2 |
4XV-21446-00-00 |
US $56.65 |
||
|
27
|
27
4XV-27424-00-00 Damper, Muffler |
4XV-27424-00-00 |
from US $5.09 |
||
|
28
|
28
90387-082W9-00 Collar |
90387-082W9-00 |
from US $9.28 |
||
|
29
|
29
4XV-2117N-00-00 Cover 3 |
4XV-2117N-00-00 |
from US $6.60 |
||
|
30
|
30
4XV-2117R-00-00
Cover 4
|
4XV-2117R-00-00 |
— | ||
|
31
|
31
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.65 |
||
|
32
|
32
4XV-2116J-00-00 Bracket 7 |
4XV-2116J-00-00 |
from US $11.02 |
||
|
33
|
33
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.50 |
||
|
34
|
34
4XV-2116A-00-00 Stay 1 |
4XV-2116A-00-00 |
from US $13.95 |
||
|
35
|
35
90387-061K9-00 Collar |
90387-061K9-00 |
from US $1.01 |
||
