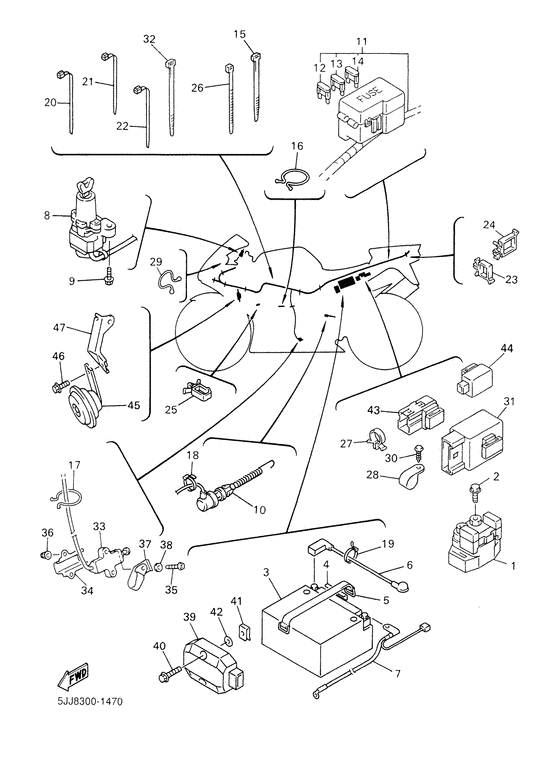

Electrical 2 Diagram Yamaha YZF-R1 R1
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5JJ8
- Sales region
- Switzerland (040)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4YR-81940-00-00 Starter Relay Assy (Rc19-018) |
4YR-81940-00-00 |
from US $84.28 |
||
| replacement | |||||
|
01
|
01
4YR-81940-02-00 Starter Relay Assy (Rc19-018) |
4YR-81940-02-00 |
from US $84.28 |
||
|
02
|
02
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
03
|
03
4TX-82100-01-00
Gt12B4 Gs Battery -
|
4TX-82100-01-00 |
— | ||
| replacements | |||||
|
03
|
03
GT1-2B400-00-00
Battery
|
GT1-2B400-00-00 |
— | ||
|
03
|
03
YT1-2BBS0-00-00
Bat Yt12B-Bs (Pt12B-4) Yu
|
YT1-2BBS0-00-00 |
— | ||
|
04
|
04
2AL-84553-00-00 Damper |
2AL-84553-00-00 |
from US $5.38 |
||
|
05
|
05
5JJ-82131-00-00 Band, Battery |
5JJ-82131-00-00 |
from US $6.38 |
||
|
06
|
06
5JJ-82115-00-00 Wire, Plus Lead |
5JJ-82115-00-00 |
US $38.66 |
||
|
07
|
07
5JJ-82116-00-00 Wire, Minus Lead |
5JJ-82116-00-00 |
US $47.27 |
||
|
08
|
08
5JJ-82501-01-00
Main Switch Steering Lock
|
5JJ-82501-01-00 |
— | ||
|
09
|
09
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
09
|
09
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.70 |
||
|
10
|
10
4XV-82530-01-00 Stop Switch Assy |
4XV-82530-01-00 |
US $41.53 |
||
|
11
|
11
5JJ-82590-01-00
Wire Harness Assy
|
5JJ-82590-01-00 |
— | ||
|
12
|
12
5JJ-82151-30-00
Fuse (10A-Bl)
|
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
12
|
12
67F-82151-40-00 Fuse (10A) |
67F-82151-40-00 |
from US $1.98 |
||
|
13
|
13
5JJ-82151-10-00 Fuse (15A-Bl) |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
13
|
13
67F-82151-50-00 Fuse (15A) |
67F-82151-50-00 |
from US $1.98 |
||
|
14
|
14
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.54 |
||
|
15
|
15
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
15
|
15
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
16
|
16
90464-37257-00 Clamp |
90464-37257-00 |
from US $1.84 |
||
|
17
|
17
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
18
|
18
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.56 |
||
|
19
|
19
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
20
|
20
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
20
|
20
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
21
|
21
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
22
|
22
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
22
|
22
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
23
|
23
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.35 |
||
|
24
|
24
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.42 |
||
|
25
|
25
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.70 |
||
|
26
|
26
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
26
|
26
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $2.83 |
||
|
27
|
27
90464-13133-00 Clamp |
90464-13133-00 |
from US $1.70 |
||
|
28
|
28
90464-18029-00 Clamp |
90464-18029-00 |
from US $3.94 |
||
|
29
|
29
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
30
|
30
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
31
|
31
5EB-81950-20-00 Relay Assy (5Eb-00) |
5EB-81950-20-00 |
from US $114.53 |
||
|
32
|
32
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
33
|
33
5JJ-82566-00-00 Switch, Side Stand |
5JJ-82566-00-00 |
US $104.65 |
||
| replacement | |||||
|
33
|
33
5JJ-82566-01-00 Switch, Side Stand |
5JJ-82566-01-00 |
US $104.65 |
||
|
34
|
34
5JJ-82388-00-00 Plate |
5JJ-82388-00-00 |
from US $7.37 |
||
|
35
|
35
92017-05030-00 Bolt, Button Head |
92017-05030-00 |
from US $2.13 |
||
|
36
|
36
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
37
|
37
90461-10002-00 Clamp |
90461-10002-00 |
from US $8.66 |
||
|
38
|
38
90201-057H5-00 Washer, Plate |
90201-057H5-00 |
from US $1.70 |
||
|
39
|
39
4JH-81960-01-00 Rectifier-Regulator Assy |
4JH-81960-01-00 |
from US $210 |
||
|
40
|
40
95827-06025-00 Bolt, Flange |
95827-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
40
|
40
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
40
|
40
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
41
|
41
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
41
|
41
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
42
|
42
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
43
|
43
5JJ-81950-20-00 Relay Assy (5JJ-20) |
5JJ-81950-20-00 |
from US $23.52 |
||
|
44
|
44
4MY-83350-01-00 Flasher Relay Assy |
4MY-83350-01-00 |
from US $51.12 |
||
| replacements | |||||
|
44
|
44
4MY-83350-02-00 Flasher Relay Assy |
4MY-83350-02-00 |
from US $51.12 |
||
|
44
|
44
4MY-83350-03-00 Flasher Relay Assy |
4MY-83350-03-00 |
US $58.16 |
||
|
45
|
45
3TB-83371-01-00 Horn |
3TB-83371-01-00 |
from US $63.23 |
||
| replacement | |||||
|
45
|
45
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
46
|
46
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
46
|
46
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
47
|
47
4XV-2134K-00-00 Bracket, Horn |
4XV-2134K-00-00 |
US $16.18 |
||
