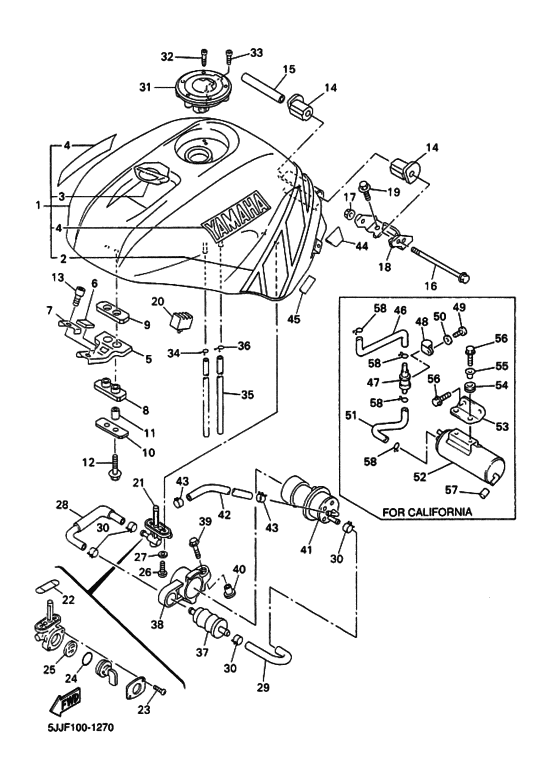

Fuel tank Diagram Yamaha YZF-R1 R1
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5JJH
- Sales region
- Europe (010)
- Базовая модель
- YZF-R1 YZF-R1SN
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JJ-Y2410-30-08
Fuel Tank Comp
DPBMC/BWC1 |
5JJ-Y2410-30-08 |
— | ||
|
2
|
2
5JJ-24244-00-00
Graphic, Fuel Tank 1
|
5JJ-24244-00-00 |
— | ||
|
3
|
3
5MT-24161-00-00
Emblem 1
|
5MT-24161-00-00 |
— | ||
|
4
|
4
5JJ-2153A-00-00 Emblem, Yamaha |
5JJ-2153A-00-00 |
from US $17.33 |
||
|
5
|
5
5JJ-24191-00-00
Bracket, Fuel Tank 1
|
5JJ-24191-00-00 |
— | ||
|
6
|
6
1AE-2837J-00-00
Damper 5
|
1AE-2837J-00-00 |
— | ||
|
7
|
7
5JJ-24186-00-00
Washer, Special
|
5JJ-24186-00-00 |
— | ||
|
8
|
8
2GH-24181-00-00 Damper, Locating 1 |
2GH-24181-00-00 |
from US $6.38 |
||
|
9
|
9
2GH-24183-00-00 Damper, Locating 3 |
2GH-24183-00-00 |
from US $4.96 |
||
|
10
|
10
5JJ-24187-00-00 Washer, Special |
5JJ-24187-00-00 |
US $5.74 |
||
|
11
|
11
90387-06006-00 Collar |
90387-06006-00 |
from US $2.09 |
||
|
12
|
12
90119-06190-00 Bolt, With Washer |
90119-06190-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
90119-06163-00 Bolt, With Washer |
90119-06163-00 |
from US $1.84 |
||
|
13
|
13
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
14
|
14
4YR-24181-00-00
Damper, Locating 1
|
4YR-24181-00-00 |
— | ||
|
15
|
15
90387-06007-00
Collar
|
90387-06007-00 |
— | ||
|
16
|
16
95817-06110-00
Bolt, Flange
|
95817-06110-00 |
— | ||
|
17
|
17
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
18
|
18
5JJ-21348-00-00
Bracket, Tank Fitting
|
5JJ-21348-00-00 |
— | ||
|
19
|
19
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
19
|
19
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
20
|
20
4XV-24183-00-00 Damper, Locating 3 |
4XV-24183-00-00 |
from US $8.93 |
||
|
21
|
21
4KM-24500-10-00 Fuel Cock Assy 1 |
4KM-24500-10-00 |
from US $55.01 |
||
| replacement | |||||
|
21
|
21
4KM-24500-20-00 Fuel Cock Assy 1 |
4KM-24500-20-00 |
from US $59.27 |
||
|
22
|
22
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
23
|
23
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
23
|
23
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
24
|
24
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
24
|
24
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.70 |
||
|
25
|
25
3AJ-24523-00-00
Valve Packing
|
3AJ-24523-00-00 |
— | ||
| replacement | |||||
|
25
|
25
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
26
|
26
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
27
|
27
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
27
|
27
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
28
|
28
4XV-24311-00-00
Pipe, Fuel 1
|
4XV-24311-00-00 |
— | ||
|
29
|
29
4XV-24312-00-00
Pipe 2
|
4XV-24312-00-00 |
— | ||
|
30
|
30
90467-12124-00 Clip |
90467-12124-00 |
from US $1.70 |
||
|
31
|
31
5JJ-24602-00-00
Cap Assy
|
5JJ-24602-00-00 |
— | ||
| replacement | |||||
|
31
|
31
39P-24602-00-00 Cap Assy |
39P-24602-00-00 |
from US $167.98 |
||
|
32
|
32
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
33
|
33
91317-05010-00 Bolt |
91317-05010-00 |
from US $1.21 |
||
|
34
|
34
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
34
|
34
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
35
|
35
90445-10015-00
Hose (L950)
|
90445-10015-00 |
— | ||
|
36
|
36
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
36
|
36
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
37
|
37
1FK-24560-00-00
Filter Assy
|
1FK-24560-00-00 |
— | ||
| replacement | |||||
|
37
|
37
1FK-24560-10-00 Filter Assy |
1FK-24560-10-00 |
from US $15.16 |
||
|
38
|
38
4XV-24398-01-00
Band 1
|
4XV-24398-01-00 |
— | ||
|
39
|
39
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
39
|
39
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
40
|
40
90387-062L2-00 Collar |
90387-062L2-00 |
from US $3.54 |
||
|
41
|
41
4SV-13907-01-00 Fuel Pump Comp |
4SV-13907-01-00 |
from US $402.38 |
||
| replacements | |||||
|
41
|
41
4SV-13907-02-00 Fuel Pump Comp |
4SV-13907-02-00 |
from US $264.08 |
||
|
41
|
41
4SV-13907-03-00 FUEL PUMP COMP |
4SV-13907-03-00 |
from US $271.04 |
||
|
42
|
42
90445-142K2-00 Hose (L200)Hose (l200) |
90445-142K2-00 |
from US $12.33 |
||
|
43
|
43
90467-13123-00 Clip |
90467-13123-00 |
from US $1.42 |
||
| replacement | |||||
|
43
|
43
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.42 |
||
|
44
|
44
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
45
|
45
5H0-8235Y-M0-00 Damper |
5H0-8235Y-M0-00 |
from US $1.98 |
||
