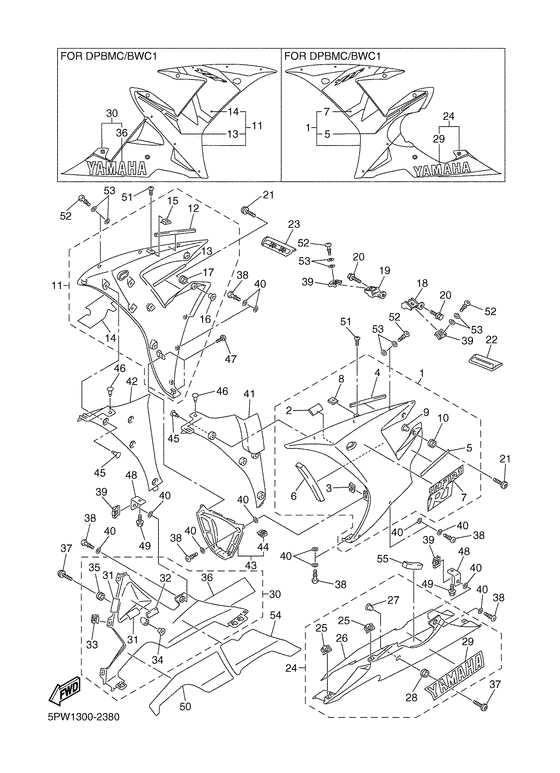

Cowling 2 Diagram Yamaha YZF-R1 R1
- Year
- 2002
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5PW1
- Sales region
- Italy (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
01
|
01
5PW-Y283U-00-P0 Panel Assembly 1For vrc1 |
5PW-Y283U-00-P0 |
US $590.62 |
||
01
|
01
5PW-Y283U-10-P1
Panel Assembly 1
For dpbmc |
5PW-Y283U-10-P1 |
— | ||
01
|
01
5PW-Y283U-20-P2 Panel Assembly 1For s3 |
5PW-Y283U-20-P2 |
US $590.62 |
||
01
|
01
5PW-Y283U-30-P1 Panel Assembly 1For dpbmc/bwc1 |
5PW-Y283U-30-P1 |
US $590.62 |
||
02
|
02
1TX-28371-00-00 Damper |
1TX-28371-00-00 |
from US $1.66 |
||
03
|
03
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
replacement | |||||
03
|
03
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $5.51 |
||
04
|
04
5PW-28307-00-00 Seal |
5PW-28307-00-00 |
from US $1.33 |
||
05
|
05
5PW-28328-00-00 EmblemFor vrc1 |
5PW-28328-00-00 |
US $22.59 |
||
05
|
05
5PW-28328-10-00
Emblem
For dpbmc |
5PW-28328-10-00 |
— | ||
05
|
05
5PW-28328-20-00 EmblemFor s3 |
5PW-28328-20-00 |
from US $18.51 |
||
replacement | |||||
05
|
05
5PW-28328-21-00 EmblemFor s3 |
5PW-28328-21-00 |
from US $18.51 |
||
05
|
05
5PW-28328-A0-00 EmblemFor dpbmc/bwc1 |
5PW-28328-A0-00 |
from US $18.51 |
||
06
|
06
5PW-28371-00-00 Damper |
5PW-28371-00-00 |
from US $17.48 |
||
07
|
07
5PW-28391-20-00 Graphic 1For s3 |
5PW-28391-20-00 |
from US $61.82 |
||
07
|
07
5PW-28393-00-00 Graphic 3For dpbmc/bwc1 |
5PW-28393-00-00 |
US $184.52 |
||
07
|
07
5PW-28391-00-00 Graphic 1For vrc1 |
5PW-28391-00-00 |
US $66.29 |
||
07
|
07
5PW-28391-10-00
Graphic 1
For dpbmc |
5PW-28391-10-00 |
— | ||
08
|
08
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.80 |
||
09
|
09
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
replacement | |||||
09
|
09
90387-06159-00 Collar |
90387-06159-00 |
from US $1.50 |
||
10
|
10
90480-12596-00 Grommet |
90480-12596-00 |
from US $1.80 |
||
11
|
11
5PW-Y283V-00-P0
Panel Assembly 2
For vrc1 |
5PW-Y283V-00-P0 |
— | ||
11
|
11
5PW-Y283V-10-P1
Panel Assembly 2
For dpbmc |
5PW-Y283V-10-P1 |
— | ||
11
|
11
5PW-Y283V-20-P2 Panel Assembly 2For s3 |
5PW-Y283V-20-P2 |
US $590.62 |
||
11
|
11
5PW-Y283V-40-P1 Panel Assembly 2For dpbmc/bwc1 |
5PW-Y283V-40-P1 |
US $590.62 |
||
12
|
12
5PW-28307-00-00 Seal |
5PW-28307-00-00 |
from US $1.33 |
||
13
|
13
5PW-28338-10-00
Emblem
For dpbmc |
5PW-28338-10-00 |
— | ||
13
|
13
5PW-28338-20-00 EmblemFor s3 |
5PW-28338-20-00 |
from US $18.51 |
||
replacement | |||||
13
|
13
5PW-28338-21-00 EmblemFor s3 |
5PW-28338-21-00 |
from US $18.51 |
||
13
|
13
5PW-28338-A0-00 EmblemFor dpbmc/bwc1 |
5PW-28338-A0-00 |
from US $18.51 |
||
13
|
13
5PW-28338-00-00
Emblem
For vrc1 |
5PW-28338-00-00 |
— | ||
14
|
14
5PW-28392-00-00
Graphic 2
For vrc1 |
5PW-28392-00-00 |
— | ||
14
|
14
5PW-28392-10-00
Graphic 2
For dpbmc |
5PW-28392-10-00 |
— | ||
14
|
14
5PW-28392-20-00 Graphic 2For s3 |
5PW-28392-20-00 |
US $68.69 |
||
14
|
14
5PW-28394-00-00 Graphic 4For dpbmc/bwc1 |
5PW-28394-00-00 |
US $188.21 |
||
15
|
15
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.80 |
||
16
|
16
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
replacement | |||||
16
|
16
90387-06159-00 Collar |
90387-06159-00 |
from US $1.50 |
||
17
|
17
90480-12596-00 Grommet |
90480-12596-00 |
from US $1.80 |
||
18
|
18
5PW-2836A-00-00 Bracket 1 |
5PW-2836A-00-00 |
from US $6.05 |
||
19
|
19
5PW-2836E-00-00 Bracket 2 |
5PW-2836E-00-00 |
from US $5.96 |
||
20
|
20
90119-06052-00 Bolt, With Washer |
90119-06052-00 |
from US $1.20 |
||
replacement | |||||
20
|
20
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.20 |
||
21
|
21
90149-06302-00 Screw |
90149-06302-00 |
from US $3.59 |
||
22
|
22
5PW-2832M-00-00
Protector 1
|
5PW-2832M-00-00 |
— | ||
23
|
23
5PW-2832N-00-00
Protector 2
|
5PW-2832N-00-00 |
— | ||
24
|
24
5PW-Y2808-00-P0 Cover, LowerFor vrc1,dpbmc |
5PW-Y2808-00-P0 |
from US $407.31 |
||
24
|
24
5PW-Y2808-10-P1 Cover, LowerFor s3 |
5PW-Y2808-10-P1 |
US $390.47 |
||
24
|
24
5PW-Y2808-20-P2 Cover Assy, UnderFor dpbmc/bwc1 |
5PW-Y2808-20-P2 |
from US $407.31 |
||
25
|
25
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
replacement | |||||
25
|
25
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $5.51 |
||
26
|
26
5PW-2848L-00-00 Seat 3 |
5PW-2848L-00-00 |
from US $23.31 |
||
27
|
27
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
replacement | |||||
27
|
27
90387-06159-00 Collar |
90387-06159-00 |
from US $1.50 |
||
28
|
28
90480-12596-00 Grommet |
90480-12596-00 |
from US $1.80 |
||
29
|
29
99241-00320-00 Emblem, YamahaFor dpbmc/bwc1 |
99241-00320-00 |
from US $18.47 |
||
29
|
29
99247-00320-00 Emblem, YamahaFor s3 |
99247-00320-00 |
from US $17.95 |
||
29
|
29
99246-00320-00 Emblem, YamahaFor vrc1,dpbmc |
99246-00320-00 |
from US $20.56 |
||
30
|
30
5PW-Y2809-00-P0 Cover, UnderCover, under For vrc1,dpbmc |
5PW-Y2809-00-P0 |
from US $407.31 |
||
replacement | |||||
30
|
30
5PW-Y2809-01-P0 Cover, UnderFor vrc1,dpbmc |
5PW-Y2809-01-P0 |
from US $407.31 |
||
30
|
30
5PW-Y2809-10-P1 Cover, UnderCover, under For s3 |
5PW-Y2809-10-P1 |
from US $407.31 |
||
replacement | |||||
30
|
30
5PW-Y2809-11-P1
Cover, Under
For s3 |
5PW-Y2809-11-P1 |
— | ||
30
|
30
5PW-Y2809-20-P2
Cover Assy 2, Under
For dpbmc/bwc1 |
5PW-Y2809-20-P2 |
— | ||
replacement | |||||
30
|
30
5PW-Y2809-21-P2
Cover, Under
For dpbmc/bwc1 |
5PW-Y2809-21-P2 |
— | ||
31
|
31
1JK-21735-00-00 Seal 2 |
1JK-21735-00-00 |
from US $3.28 |
||
32
|
32
1TX-28371-00-00 Damper |
1TX-28371-00-00 |
from US $1.66 |
||
33
|
33
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
replacement | |||||
33
|
33
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $5.51 |
||
34
|
34
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
replacement | |||||
34
|
34
90387-06159-00 Collar |
90387-06159-00 |
from US $1.50 |
||
35
|
35
90480-12596-00 Grommet |
90480-12596-00 |
from US $1.80 |
||
36
|
36
99241-00320-00 Emblem, YamahaFor dpbmc/bwc1 |
99241-00320-00 |
from US $18.47 |
||
36
|
36
99246-00320-00 Emblem, YamahaFor vrc1,dpbmc |
99246-00320-00 |
from US $20.56 |
||
36
|
36
99247-00320-00 Emblem, YamahaFor s3 |
99247-00320-00 |
from US $17.95 |
||
37
|
37
90149-06302-00 Screw |
90149-06302-00 |
from US $3.59 |
||
38
|
38
5PW-28386-00-00 Head |
5PW-28386-00-00 |
from US $11.97 |
||
39
|
39
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
replacement | |||||
39
|
39
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $5.51 |
||
40
|
40
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.09 |
||
41
|
41
5PW-2836K-00-00 Panel, Inner 1 |
5PW-2836K-00-00 |
from US $30.84 |
||
42
|
42
5PW-2836L-00-00 Panel, Inner 2 |
5PW-2836L-00-00 |
US $129.19 |
||
43
|
43
5PW-Y283S-00-00 Panel, Inner 3 |
5PW-Y283S-00-00 |
US $62.39 |
||
44
|
44
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
replacement | |||||
44
|
44
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $5.51 |
||
45
|
45
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.65 |
||
46
|
46
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.80 |
||
47
|
47
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
replacement | |||||
47
|
47
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.65 |
||
48
|
48
5PW-2836F-00-00 Bracket 3 |
5PW-2836F-00-00 |
US $15.64 |
||
49
|
49
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
replacement | |||||
49
|
49
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $0.90 |
||
50
|
50
5PW-2848M-00-00 Seat 4 |
5PW-2848M-00-00 |
from US $13.07 |
||
51
|
51
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.65 |
||
52
|
52
5PW-28386-00-00 Head |
5PW-28386-00-00 |
from US $11.97 |
||
53
|
53
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.09 |
||
54
|
54
5PW-2848N-00-00 Seat 5 |
5PW-2848N-00-00 |
from US $18.94 |
||
55
|
55
5PW-2834E-00-00
Damper 1
|
5PW-2834E-00-00 |
— |
