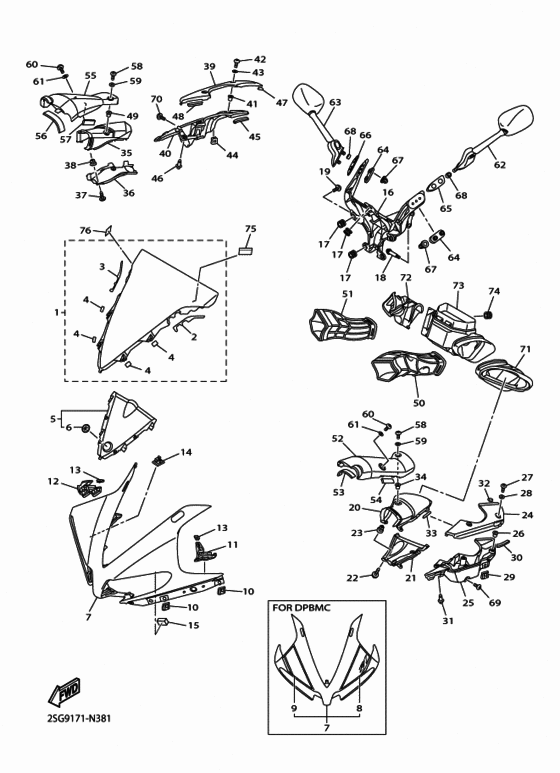

Cowling 1 Diagram Yamaha YZF-R1 R1
- Year
- 2014
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 2SG9
- Sales region
- Canada (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-28380-40-00 Windscreen Assy |
14B-28380-40-00 |
from US $125.31 |
||
|
2
|
2
14B-28428-10-00 Seal 1 |
14B-28428-10-00 |
from US $7.08 |
||
|
3
|
3
14B-28429-10-00 Seal 2 |
14B-28429-10-00 |
from US $7.08 |
||
|
4
|
4
4C8-21735-00-00 Seal 2 |
4C8-21735-00-00 |
from US $1.70 |
||
|
5
|
5
1KB-2830P-00-00 Panel Assy |
1KB-2830P-00-00 |
from US $26.78 |
||
|
6
|
6
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $17.86 |
||
|
7
|
7
1KB-W283G-70-P1 Body, Front Upper 1UR BWC1 FOR DPBMC |
1KB-W283G-70-P1 |
from US $356 |
||
|
8
|
8
2SG-2832K-00-00 Graphic, 12FOR DPBMC |
2SG-2832K-00-00 |
from US $31.59 |
||
|
9
|
9
2SG-2832L-00-00 Graphic, 13FOR DPBMC |
2SG-2832L-00-00 |
from US $31.59 |
||
|
10
|
10
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
11
|
11
1KB-2831U-00-00 Stay, Side 1 |
1KB-2831U-00-00 |
from US $3.83 |
||
|
12
|
12
1KB-2832U-00-00 Stay, Side 1 |
1KB-2832U-00-00 |
from US $3.83 |
||
| replacement | |||||
|
12
|
12
1KB-2832U-01-00 |
1KB-2832U-01-00 |
US $10.21 |
||
|
13
|
13
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
13
|
13
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
14
|
14
904-64160-20-00 Clamp |
904-64160-20-00 |
from US $11.19 |
||
|
15
|
15
905-20150-10-00 Damper, Plate |
905-20150-10-00 |
from US $1.42 |
||
|
16
|
16
14B-28356-10-00 Stay 1 |
14B-28356-10-00 |
from US $265.27 |
||
|
17
|
17
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
18
|
18
90105-08052-00 Bolt, Flange |
90105-08052-00 |
from US $2.13 |
||
|
19
|
19
90160-05006-00 Screw, Round Tapping |
90160-05006-00 |
from US $1.34 |
||
|
20
|
20
14B-2838N-00-P6 Duct 1UR FOR DPBMC |
14B-2838N-00-P6 |
from US $72.53 |
||
|
21
|
21
14B-2838T-00-00 Duct 3 |
14B-2838T-00-00 |
from US $7.08 |
||
|
22
|
22
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
22
|
22
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
23
|
23
90480-08005-00 Grommet |
90480-08005-00 |
from US $1.34 |
||
|
24
|
24
14B-2839K-00-P6 Lid 1UR FOR DPBMC |
14B-2839K-00-P6 |
from US $62.17 |
||
|
25
|
25
14B-2838V-00-00 Box 3 |
14B-2838V-00-00 |
from US $11.76 |
||
|
26
|
26
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
27
|
27
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
28
|
28
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
29
|
29
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
29
|
29
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
30
|
30
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
31
|
31
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
32
|
32
905-20010-01-00 Damper, Plate |
905-20010-01-00 |
from US $1.56 |
||
|
33
|
33
905-20030-05-00 Damper, Plate |
905-20030-05-00 |
from US $1.98 |
||
|
34
|
34
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
35
|
35
14B-2838R-00-P6 Duct 2UR FOR DPBMC |
14B-2838R-00-P6 |
from US $72.53 |
||
|
36
|
36
14B-2838U-00-00 Duct 4 |
14B-2838U-00-00 |
from US $7.08 |
||
|
37
|
37
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
37
|
37
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
38
|
38
90480-08005-00 Grommet |
90480-08005-00 |
from US $1.34 |
||
|
39
|
39
14B-2839L-00-P6 Lid 2UR FOR DPBMC |
14B-2839L-00-P6 |
from US $62.17 |
||
|
40
|
40
14B-2838W-00-00 Box 4 |
14B-2838W-00-00 |
from US $11.76 |
||
|
41
|
41
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
42
|
42
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
43
|
43
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
44
|
44
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
44
|
44
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
45
|
45
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
46
|
46
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
47
|
47
905-20010-01-00 Damper, Plate |
905-20010-01-00 |
from US $1.56 |
||
|
48
|
48
905-20030-05-00 Damper, Plate |
905-20030-05-00 |
from US $1.98 |
||
|
49
|
49
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
50
|
50
14B-2838J-00-00 Duct 5 |
14B-2838J-00-00 |
from US $31.07 |
||
| replacement | |||||
|
50
|
50
14B-2838J-01-00 Duct 5 |
14B-2838J-01-00 |
US $38.32 |
||
|
51
|
51
14B-2838P-00-00 Duct 6 |
14B-2838P-00-00 |
from US $32.67 |
||
|
52
|
52
14B-2837L-00-P6 Panel, Console 1UR FOR DPBMC |
14B-2837L-00-P6 |
from US $88.42 |
||
|
53
|
53
4C8-2112D-00-00 Damper, 3 |
4C8-2112D-00-00 |
from US $1.70 |
||
|
54
|
54
2S3-2111D-00-00 Seal 1 |
2S3-2111D-00-00 |
from US $7.65 |
||
|
55
|
55
14B-2837M-00-P6 Panel, Console 2UR FOR DPBMC |
14B-2837M-00-P6 |
from US $88.42 |
||
|
56
|
56
4C8-2112D-00-00 Damper, 3 |
4C8-2112D-00-00 |
from US $1.70 |
||
|
57
|
57
2S3-2111D-00-00 Seal 1 |
2S3-2111D-00-00 |
from US $7.65 |
||
|
58
|
58
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
59
|
59
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
60
|
60
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
61
|
61
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
62
|
62
14B-26280-00-00 Rear View Mirror Assy (Left) |
14B-26280-00-00 |
from US $100.86 |
||
|
63
|
63
14B-26290-00-00 Rear View Mirror Assy (Right) |
14B-26290-00-00 |
from US $100.86 |
||
|
64
|
64
4C8-26298-00-00 Plate, Mirror Fitting 1 |
4C8-26298-00-00 |
from US $2.69 |
||
|
65
|
65
14B-2628N-00-00 Base, Mirror (Left) |
14B-2628N-00-00 |
from US $3.40 |
||
|
66
|
66
14B-2628R-00-00 Base, Mirror (Right) |
14B-2628R-00-00 |
from US $3.40 |
||
|
67
|
67
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
68
|
68
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.34 |
||
|
69
|
69
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
70
|
70
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
71
|
71
14B-2846C-00-00 Box, Side 1 |
14B-2846C-00-00 |
from US $40.62 |
||
|
72
|
72
14B-2846D-00-00 Box, Side 2 |
14B-2846D-00-00 |
from US $40.62 |
||
|
73
|
73
14B-2845D-10-00 Box, Front |
14B-2845D-10-00 |
from US $70.60 |
||
|
74
|
74
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.84 |
||
|
75
|
75
4B5-2815K-00-00 Label, Notice Windshield 1 |
4B5-2815K-00-00 |
from US $6.52 |
||
|
76
|
76
4B5-2815K-10-00 Label, Notice Windshield 1 |
4B5-2815K-10-00 |
from US $3.20 |
||
