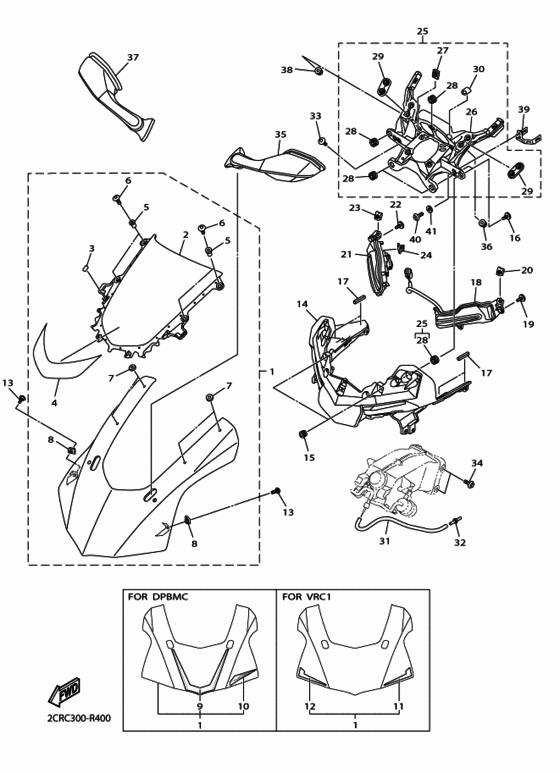

Cowling 1 Diagram Yamaha YZF-R1 R1
- Year
- 2016
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 2CRC
- Sales region
- Europe (050)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-Y283G-G0-P0 Body, Front Upper 1UR FOR DPBMC |
2CR-Y283G-G0-P0 |
from US $561 |
||
|
2
|
2
2CR-28381-00-00 Windshield |
2CR-28381-00-00 |
US $92.29 |
||
|
3
|
3
1S4-2476U-00-00 Protector 1 |
1S4-2476U-00-00 |
from US $1.28 |
||
|
4
|
4
2CR-2832P-00-00 Graphic, 18 |
2CR-2832P-00-00 |
from US $37.17 |
||
|
5
|
5
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
6
|
6
2CR-28333-00-00 Bolt |
2CR-28333-00-00 |
from US $2.55 |
||
|
7
|
7
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
8
|
8
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
8
|
8
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
9
|
9
2CR-2832D-10-00 Graphic 17FOR DPBMC |
2CR-2832D-10-00 |
from US $53.98 |
||
|
10
|
10
2CR-2173X-00-00 Graphic 7FOR DPBMC |
2CR-2173X-00-00 |
from US $11.33 |
||
|
13
|
13
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
14
|
14
2CR-2835H-00-00 Body, Front Upper 2 |
2CR-2835H-00-00 |
from US $56.92 |
||
|
15
|
15
90480-10003-00 Grommet |
90480-10003-00 |
from US $1.56 |
||
|
16
|
16
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.34 |
||
|
17
|
17
2C0-28247-00-00 Damper 4 |
2C0-28247-00-00 |
from US $1.42 |
||
|
18
|
18
2CR-84301-00-00 Pilot Light Assy 1 |
2CR-84301-00-00 |
from US $185.13 |
||
|
19
|
19
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
20
|
20
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
20
|
20
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
21
|
21
2CR-84302-00-00 Pilot Light Assy 2 |
2CR-84302-00-00 |
from US $185.13 |
||
|
22
|
22
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
23
|
23
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
23
|
23
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
24
|
24
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
25
|
25
2CR-28320-00-00 Leg Shield Stay Kit |
2CR-28320-00-00 |
from US $126.69 |
||
|
26
|
26
2CR-28356-00-00 Stay 1 |
2CR-28356-00-00 |
from US $55.68 |
||
|
27
|
27
90183-060A1-00 Nut, Spring |
90183-060A1-00 |
from US $4.39 |
||
|
28
|
28
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
29
|
29
4C8-26298-00-00 Plate, Mirror Fitting 1 |
4C8-26298-00-00 |
from US $2.69 |
||
|
30
|
30
2CR-22873-00-00 Seal 1 |
2CR-22873-00-00 |
from US $1.42 |
||
|
31
|
31
904-45086-J3-00 Hose (L320) |
904-45086-J3-00 |
from US $4.68 |
||
|
32
|
32
5PS-14568-00-00 Joint |
5PS-14568-00-00 |
from US $1.28 |
||
|
33
|
33
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
34
|
34
90111-06071-00 Bolt, Hex. Socket Button |
90111-06071-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
35
|
35
2CR-26280-00-00 Rear View Mirror Assy (Left) |
2CR-26280-00-00 |
US $410.56 |
||
|
36
|
36
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
37
|
37
2CR-26290-00-00 Rear View Mirror Assy (Right) |
2CR-26290-00-00 |
US $410.56 |
||
|
38
|
38
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
39
|
39
2CR-2836J-00-00 Bracket 6 |
2CR-2836J-00-00 |
from US $5.20 |
||
| replacement | |||||
|
39
|
39
2CR-2836J-01-00 Bracket 6 |
2CR-2836J-01-00 |
from US $7.93 |
||
|
40
|
40
92012-06014-00 Bolt, Button Head |
92012-06014-00 |
from US $1.56 |
||
|
41
|
41
90387-06184-00 Collar |
90387-06184-00 |
from US $3.83 |
||
