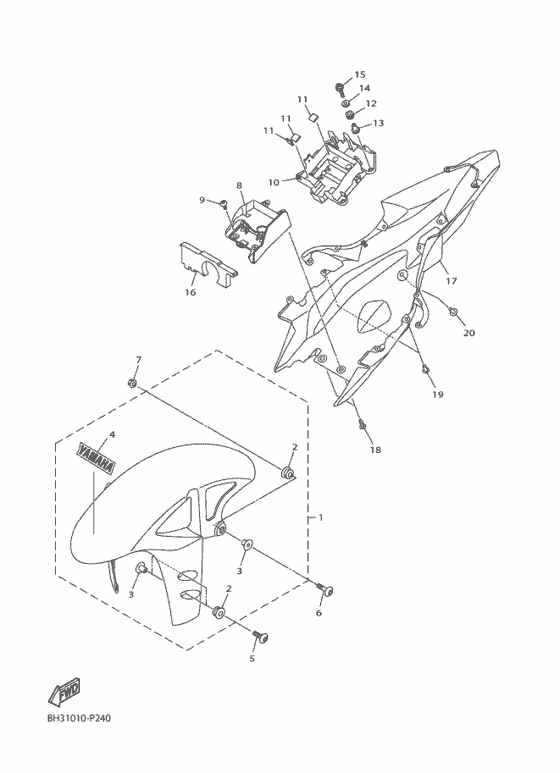

Fender Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2015
- Colour
- Black Metallic X
- Model code
- BH31
- Sales region
- Japan (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-Y2151-40-P0 Front Fender AssySMX |
14B-Y2151-40-P0 |
from US $197.57 |
||
|
2
|
2
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
3
|
3
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
3
|
3
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
4
|
4
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.79 |
||
|
5
|
5
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $1.84 |
||
|
6
|
6
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
7
|
7
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
8
|
8
2CR-8212B-00-00 Box, Battery 1 |
2CR-8212B-00-00 |
from US $34.71 |
||
|
9
|
9
90111-06116-00 Bolt, Hex. Socket Button |
90111-06116-00 |
from US $1.42 |
||
|
10
|
10
2CR-8212C-00-00 Box, Battery 2 |
2CR-8212C-00-00 |
from US $17.28 |
||
|
11
|
11
13S-21649-00-00 Damper |
13S-21649-00-00 |
from US $1.70 |
||
|
12
|
12
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
13
|
13
90387-073M2-00 Collar |
90387-073M2-00 |
from US $6.94 |
||
|
14
|
14
90201-06088-00 Washer, Plate |
90201-06088-00 |
from US $1.70 |
||
|
15
|
15
90110-06172-00 Bolt, Hexagon Socket Head |
90110-06172-00 |
from US $1.56 |
||
|
16
|
16
2CR-21638-00-00 Damper 1 |
2CR-21638-00-00 |
from US $7.51 |
||
|
17
|
17
2CR-21611-00-00 Fender, Rear |
2CR-21611-00-00 |
from US $37.17 |
||
| replacement | |||||
|
17
|
17
2CR-21611-01-00 FENDER, REAR |
2CR-21611-01-00 |
from US $37.17 |
||
|
18
|
18
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
19
|
19
902-69050-05-00 Rivet |
902-69050-05-00 |
from US $1.70 |
||
|
20
|
20
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
