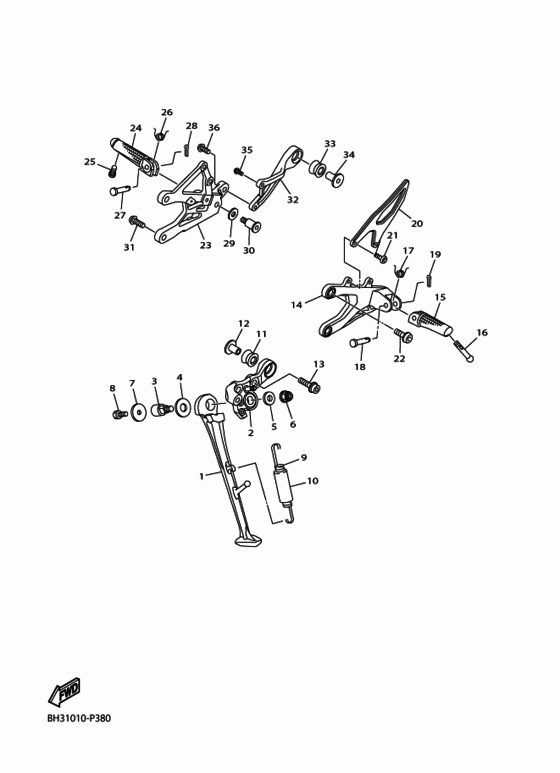

Stand & Footrest Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2015
- Colour
- Black Metallic X
- Model code
- BH31
- Sales region
- Japan (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-27311-00-00 Stand, Side |
2CR-27311-00-00 |
from US $120.89 |
||
|
2
|
2
2CR-27321-00-00 Bracket, Side Stand |
2CR-27321-00-00 |
from US $153.36 |
||
|
3
|
3
2C0-27351-00-00 Guide, Side Stand |
2C0-27351-00-00 |
from US $32.16 |
||
|
4
|
4
90201-146F9-00 Washer, Plate |
90201-146F9-00 |
from US $1.84 |
||
|
5
|
5
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
6
|
6
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
7
|
7
90201-08050-00 Washer, Plate |
90201-08050-00 |
from US $4.39 |
||
|
8
|
8
90101-08662-00 Bolt |
90101-08662-00 |
from US $2.13 |
||
| replacement | |||||
|
8
|
8
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
9
|
9
90506-18008-00 Spring, Tension |
90506-18008-00 |
from US $8.50 |
||
|
10
|
10
90445-19002-00 Hose (L60) |
90445-19002-00 |
from US $4.11 |
||
|
11
|
11
5VY-14747-00-00 Damper, Muffler |
5VY-14747-00-00 |
from US $4.11 |
||
|
12
|
12
903-87080-21-00 Collar |
903-87080-21-00 |
from US $7.65 |
||
|
13
|
13
90109-10002-00 Bolt, Hexagon Socket |
90109-10002-00 |
from US $4.96 |
||
| replacement | |||||
|
13
|
13
901-10100-26-00 Bolt, Hexagon Socket Head |
901-10100-26-00 |
from US $2.55 |
||
|
14
|
14
2CR-27442-00-00 Bracket 2 |
2CR-27442-00-00 |
from US $48.36 |
||
|
15
|
15
1KB-27451-00-00 Footrest |
1KB-27451-00-00 |
from US $13.56 |
||
|
16
|
16
901-09086-F8-00
Bolt
|
901-09086-F8-00 |
— | ||
| replacement | |||||
|
16
|
16
901-09082-25-00 Bolt |
901-09082-25-00 |
from US $3.40 |
||
|
17
|
17
90508-18134-00 Spring, Torsion |
90508-18134-00 |
from US $2.41 |
||
|
18
|
18
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
19
|
19
91402-25015-00 Pin. Cotter |
91402-25015-00 |
US $1.42 |
||
| replacement | |||||
|
19
|
19
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
20
|
20
2CR-27445-00-00 Plate 1 |
2CR-27445-00-00 |
from US $25.93 |
||
|
21
|
21
901-49062-33-00
Bolt, Button Head
|
901-49062-33-00 |
— | ||
| replacement | |||||
|
21
|
21
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.42 |
||
|
22
|
22
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
23
|
23
2CR-27443-00-00 Bracket 3 |
2CR-27443-00-00 |
from US $55.54 |
||
|
24
|
24
1KB-27461-00-00 Footrest |
1KB-27461-00-00 |
from US $10.58 |
||
|
25
|
25
901-09086-F8-00
Bolt
|
901-09086-F8-00 |
— | ||
| replacement | |||||
|
25
|
25
901-09082-25-00 Bolt |
901-09082-25-00 |
from US $3.40 |
||
|
26
|
26
90508-18135-00 Spring, Torsion |
90508-18135-00 |
from US $2 |
||
|
27
|
27
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
28
|
28
91402-25015-00 Pin. Cotter |
91402-25015-00 |
US $1.42 |
||
| replacement | |||||
|
28
|
28
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
29
|
29
90201-08103-00 Washer, Plate |
90201-08103-00 |
from US $1.28 |
||
|
30
|
30
4C8-27434-00-00 Bolt |
4C8-27434-00-00 |
from US $19.06 |
||
| replacement | |||||
|
30
|
30
4C8-27434-10-00 Bolt |
4C8-27434-10-00 |
from US $14.54 |
||
|
31
|
31
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
32
|
32
2CR-2148W-00-00 Bracket, 3 |
2CR-2148W-00-00 |
from US $43.24 |
||
|
33
|
33
5VY-14747-00-00 Damper, Muffler |
5VY-14747-00-00 |
from US $4.11 |
||
|
34
|
34
903-87080-21-00 Collar |
903-87080-21-00 |
from US $7.65 |
||
|
35
|
35
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.56 |
||
|
36
|
36
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.56 |
||
