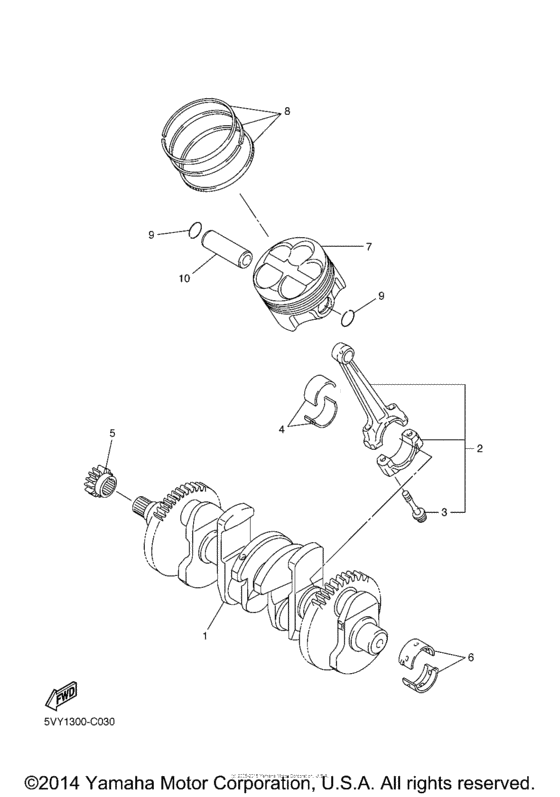

Crankshaft & Piston Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY5
- Sales region
- United States (California)
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-11411-01-00
Crankshaft
|
5VY-11411-01-00 |
— | ||
| replacement | |||||
|
1
|
1
4C8-11411-00-00 Crankshaft |
4C8-11411-00-00 |
from US $1,616.72 |
||
|
2
|
2
5VY-11650-01-00
Connecting Rod Assy
|
5VY-11650-01-00 |
— | ||
| replacement | |||||
|
2
|
2
14B-11650-00-00 Connecting Rod Assy |
14B-11650-00-00 |
from US $207.24 |
||
|
3
|
3
5VY-11654-01-00 Bolt, Connecting Rod |
5VY-11654-01-00 |
from US $5.10 |
||
|
4
|
4
5VY-11656-00-00
Plane Bearing, Connecting Rod
UR BLUE |
5VY-11656-00-00 |
— | ||
| replacement | |||||
|
4
|
4
4C8-11656-00-00 Plane Bearing, Connecting Rod (RED-BLUE)UR BLUE |
4C8-11656-00-00 |
from US $7.94 |
||
|
4
|
4
5VY-11656-30-00
Plane Bearing, Connecting Rod
UR GREEN |
5VY-11656-30-00 |
— | ||
| replacement | |||||
|
4
|
4
4C8-11656-30-00 Plane Bearing, Connecting Rod (RED-GREEN)UR GREEN |
4C8-11656-30-00 |
from US $15.30 |
||
|
4
|
4
5VY-11656-20-00
Plane Bearing, Connecting Rod
UR BROWN |
5VY-11656-20-00 |
— | ||
| replacement | |||||
|
4
|
4
4C8-11656-20-00 Plane Bearing, Connecting Rod (RED-BROWN)UR BROWN |
4C8-11656-20-00 |
from US $9.26 |
||
|
4
|
4
5VY-11656-10-00
Plane Bearing, Connecting Rod
UR BLACK |
5VY-11656-10-00 |
— | ||
| replacement | |||||
|
4
|
4
4C8-11656-10-00 Plane Bearing, Connecting Rod (RED-BLACK)UR BLACK |
4C8-11656-10-00 |
from US $7.94 |
||
|
5
|
5
5VY-11549-00-00 Sprocket, Cam Chain |
5VY-11549-00-00 |
from US $45.87 |
||
|
6
|
6
5VY-11416-A0-00 Plane Bearing, Crankshaft 1 (WHITE)UR WHITE |
5VY-11416-A0-00 |
from US $8.60 |
||
|
6
|
6
5VY-11416-10-00 Plane Bearing, Crankshaft 1 (BLACK)UR BLACK |
5VY-11416-10-00 |
from US $9.26 |
||
|
6
|
6
5VY-11416-20-00 Plane Bearing, Crankshaft 1 (BROWN)UR BROWN |
5VY-11416-20-00 |
from US $8.94 |
||
|
6
|
6
5VY-11416-30-00 Plane Bearing, Crankshaft 1 (GREEN)UR GREEN |
5VY-11416-30-00 |
from US $8.94 |
||
|
6
|
6
5VY-11416-00-00 Plane Bearing, Crankshaft 1 (BLUE)UR BLUE |
5VY-11416-00-00 |
from US $8.94 |
||
|
7
|
7
5VY-11631-01-00 Piston (Std) |
5VY-11631-01-00 |
from US $118.40 |
||
| replacement | |||||
|
7
|
7
5VY-11631-10-00 Piston (Std) |
5VY-11631-10-00 |
from US $118.40 |
||
|
8
|
8
5VY-11603-00-00 Piston Ring Set (Std) |
5VY-11603-00-00 |
from US $45.63 |
||
| replacement | |||||
|
8
|
8
5VY-11603-01-00 Piston Ring Set (Std) |
5VY-11603-01-00 |
from US $57.20 |
||
|
9
|
9
904-68120-69-00 Clip |
904-68120-69-00 |
from US $1.66 |
||
|
10
|
10
5VY-11633-00-00 Pin, Piston |
5VY-11633-00-00 |
from US $23.80 |
||
