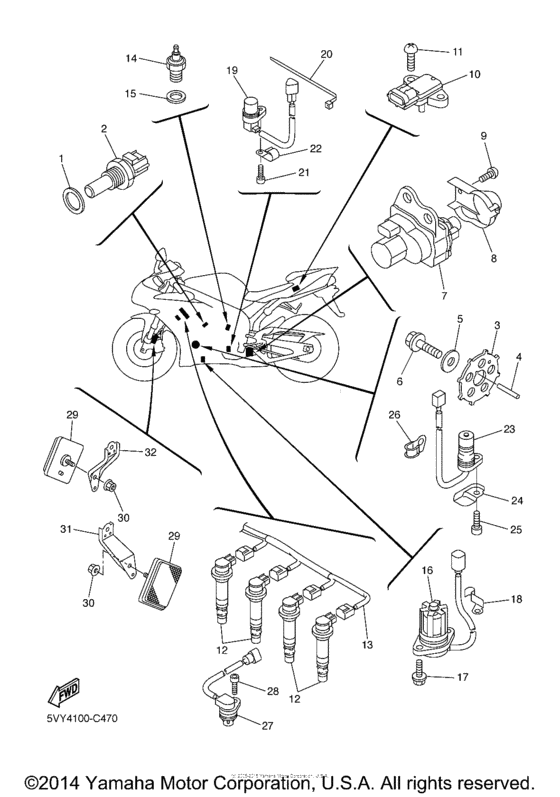

Electrical (1) Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY5
- Sales region
- United States (California)
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
2
|
2
8CC-85790-01-00 Thermosensor Assy |
8CC-85790-01-00 |
from US $51.95 |
||
|
3
|
3
5VY-81673-00-00 Rotor |
5VY-81673-00-00 |
from US $21.45 |
||
|
4
|
4
90282-03001-00 Key, Straight |
90282-03001-00 |
from US $7.08 |
||
|
5
|
5
90201-103U4-00 Washer, Plate |
90201-103U4-00 |
from US $4.25 |
||
| replacement | |||||
|
5
|
5
90201-10039-00 Washer, Plate |
90201-10039-00 |
from US $4.82 |
||
|
6
|
6
901-05102-90-00
Bolt, Flange
|
901-05102-90-00 |
— | ||
| replacement | |||||
|
6
|
6
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.69 |
||
|
7
|
7
5VY-85820-00-00 Servo Motor Assy |
5VY-85820-00-00 |
from US $255.60 |
||
| replacement | |||||
|
7
|
7
5VY-85820-10-00 Servo Motor Assy |
5VY-85820-10-00 |
from US $250.07 |
||
|
8
|
8
5VY-85829-00-00
Cover, Servo Motor
|
5VY-85829-00-00 |
— | ||
| replacement | |||||
|
8
|
8
5VY-85829-01-00 Cover, Servo Motor |
5VY-85829-01-00 |
from US $4.53 |
||
|
9
|
9
97707-50514-00 Screw, Tapping |
97707-50514-00 |
from US $2.69 |
||
| replacement | |||||
|
9
|
9
97707-50614-00 Screw, Tapping |
97707-50614-00 |
from US $2.69 |
||
|
10
|
10
5VX-82380-00-00 Sensor, Pressure |
5VX-82380-00-00 |
from US $210 |
||
|
11
|
11
977-07500-20-00
Screw, Tapping
|
977-07500-20-00 |
— | ||
| replacement | |||||
|
11
|
11
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
12
|
12
5VY-82310-00-00 Ignition Coil Assy |
5VY-82310-00-00 |
from US $103.16 |
||
|
13
|
13
5VY-82309-00-00 Wire, Sub Lead |
5VY-82309-00-00 |
from US $118.82 |
||
|
14
|
14
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
15
|
15
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
16
|
16
5VY-85720-00-00 Oil Level Gauge Assy |
5VY-85720-00-00 |
from US $82.21 |
||
|
17
|
17
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
17
|
17
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
18
|
18
90465-08013-00 Clamp |
90465-08013-00 |
from US $3.24 |
||
|
19
|
19
4XV-83755-01-00 Sensor, Speed |
4XV-83755-01-00 |
from US $151.98 |
||
| replacements | |||||
|
19
|
19
4XV-83755-03-00
Sensor, Speed
|
4XV-83755-03-00 |
— | ||
|
19
|
19
4XV-83755-04-00 Sensor, Speed |
4XV-83755-04-00 |
from US $160.69 |
||
|
20
|
20
90464-51001-00 Clamp |
90464-51001-00 |
from US $13.03 |
||
|
21
|
21
90110-06041-00 Bolt |
90110-06041-00 |
US $1.07 |
||
| replacement | |||||
|
21
|
21
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
22
|
22
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
23
|
23
5VY-81670-00-00 Pick-Up Assy |
5VY-81670-00-00 |
from US $150.59 |
||
| replacements | |||||
|
23
|
23
5VY-81670-01-00 Pick-Up Assy |
5VY-81670-01-00 |
from US $150.59 |
||
|
23
|
23
5VY-81670-02-00 Pick-Up Assy |
5VY-81670-02-00 |
US $211.25 |
||
|
24
|
24
5VY-15589-00-00 Plate |
5VY-15589-00-00 |
from US $4.12 |
||
| replacement | |||||
|
24
|
24
5VY-15589-02-00 Plate |
5VY-15589-02-00 |
from US $4.96 |
||
|
25
|
25
90110-06041-00 Bolt |
90110-06041-00 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
26
|
26
90465-08191-00 Clamp |
90465-08191-00 |
from US $4.25 |
||
| replacement | |||||
|
26
|
26
90465-08054-00 Clamp |
90465-08054-00 |
from US $4.25 |
||
|
27
|
27
5VY-85896-00-00
Sensor, Cam Position
|
5VY-85896-00-00 |
— | ||
| replacements | |||||
|
27
|
27
5VY-85896-01-00 Sensor, Cam Position |
5VY-85896-01-00 |
from US $112.80 |
||
|
27
|
27
5VY-85896-02-00 Sensor, Cam Position |
5VY-85896-02-00 |
from US $137.61 |
||
|
28
|
28
90110-06117-00 Bolt |
90110-06117-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
29
|
29
20G-85110-00-00 Reflector Assy |
20G-85110-00-00 |
from US $15.30 |
||
| replacement | |||||
|
29
|
29
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
30
|
30
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
31
|
31
5VY-85112-00-00 Bracket, Reflector 1 |
5VY-85112-00-00 |
from US $9.40 |
||
|
32
|
32
5VY-85122-00-00 Bracket, Reflector 2 |
5VY-85122-00-00 |
from US $9.40 |
||
