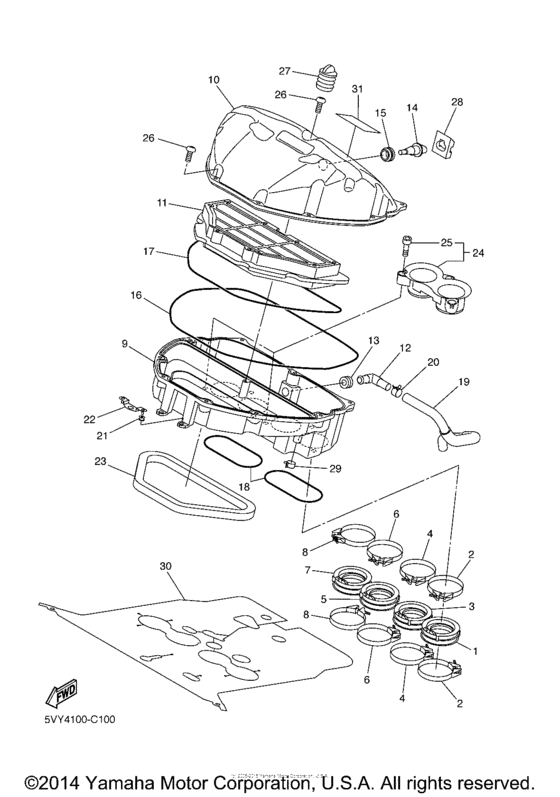

Intake Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY5
- Sales region
- United States (California)
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-13595-00-00 Joint |
5VY-13595-00-00 |
from US $13.60 |
||
|
2
|
2
90450-62001-00 Hose Clamp Assy |
90450-62001-00 |
from US $11.76 |
||
| replacement | |||||
|
2
|
2
904-50620-04-00 Hose Clamp Assy |
904-50620-04-00 |
from US $11.76 |
||
|
3
|
3
5VY-13596-00-00 Joint, Carburetor 2 |
5VY-13596-00-00 |
from US $13.60 |
||
|
4
|
4
90450-62001-00 Hose Clamp Assy |
90450-62001-00 |
from US $11.76 |
||
| replacement | |||||
|
4
|
4
904-50620-04-00 Hose Clamp Assy |
904-50620-04-00 |
from US $11.76 |
||
|
5
|
5
5VY-13597-00-00 Joint, Carburetor 3 |
5VY-13597-00-00 |
from US $13.60 |
||
|
6
|
6
90450-62001-00 Hose Clamp Assy |
90450-62001-00 |
from US $11.76 |
||
| replacement | |||||
|
6
|
6
904-50620-04-00 Hose Clamp Assy |
904-50620-04-00 |
from US $11.76 |
||
|
7
|
7
5VY-13598-00-00 Joint, Carburetor 4 |
5VY-13598-00-00 |
from US $13.60 |
||
|
8
|
8
90450-62001-00 Hose Clamp Assy |
90450-62001-00 |
from US $11.76 |
||
| replacement | |||||
|
8
|
8
904-50620-04-00 Hose Clamp Assy |
904-50620-04-00 |
from US $11.76 |
||
|
9
|
9
5VY-14411-00-00 Case, Air Cleaner 1 |
5VY-14411-00-00 |
US $62.12 |
||
|
10
|
10
5VY-14421-00-00 Case, Air Cleaner 2 |
5VY-14421-00-00 |
from US $35.69 |
||
|
11
|
11
5VY-14451-00-00 Element, Air Cleaner |
5VY-14451-00-00 |
from US $37.58 |
||
|
12
|
12
5VY-14419-00-00 Pipe |
5VY-14419-00-00 |
US $4.73 |
||
|
13
|
13
31A-14435-00-00 Grommet |
31A-14435-00-00 |
from US $5.38 |
||
| replacement | |||||
|
13
|
13
31A-14435-01-00 |
31A-14435-01-00 |
from US $5.38 |
||
|
14
|
14
5CA-85886-00-00 Sensor, Air Temprature |
5CA-85886-00-00 |
from US $20.69 |
||
|
15
|
15
5VY-14435-00-00
Grommet
|
5VY-14435-00-00 |
— | ||
|
16
|
16
5VY-14452-00-00 Seal |
5VY-14452-00-00 |
from US $6.23 |
||
|
17
|
17
5VY-14462-00-00
Seal
|
5VY-14462-00-00 |
— | ||
|
18
|
18
5VY-14457-00-00 Seal |
5VY-14457-00-00 |
from US $1.84 |
||
|
19
|
19
5VY-15393-00-00 Pipe, Breather 2 |
5VY-15393-00-00 |
from US $21.30 |
||
|
20
|
20
90467-160A1-00 Clip |
90467-160A1-00 |
from US $1.98 |
||
|
21
|
21
90480-08264-00 Grommet |
90480-08264-00 |
from US $1.84 |
||
|
22
|
22
5VY-14498-00-00 Stay 1 |
5VY-14498-00-00 |
from US $16.15 |
||
|
23
|
23
5VY-14467-00-00
Seal
|
5VY-14467-00-00 |
— | ||
|
24
|
24
5VY-1440B-00-00 Joint Assy |
5VY-1440B-00-00 |
from US $35.30 |
||
|
25
|
25
90109-05005-00 Bolt |
90109-05005-00 |
from US $2.69 |
||
|
26
|
26
90154-05004-00 Screw, C.r. Binding (2T4) |
90154-05004-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
27
|
27
5VY-14862-00-00 Plug |
5VY-14862-00-00 |
from US $3.40 |
||
|
28
|
28
5VY-14425-00-00 Damper 1 |
5VY-14425-00-00 |
from US $3.82 |
||
|
29
|
29
90467-14015-00 Clip |
90467-14015-00 |
from US $1.70 |
||
|
30
|
30
5VY-12682-00-00 Protector, Heat |
5VY-12682-00-00 |
US $103.01 |
||
| replacement | |||||
|
30
|
30
5VY-12682-01-00
Protector, Heat
|
5VY-12682-01-00 |
— | ||
|
31
|
31
5VY-2179V-00-00
Plate, Epa 1(Non California)
NON CALIFORNIA UR 49 |
5VY-2179V-00-00 |
— | ||
|
31
|
31
5VY-2179R-00-00 Plate, Epa 2 (California)CALIFORNIA UR CA |
5VY-2179R-00-00 |
US $4.61 |
||
