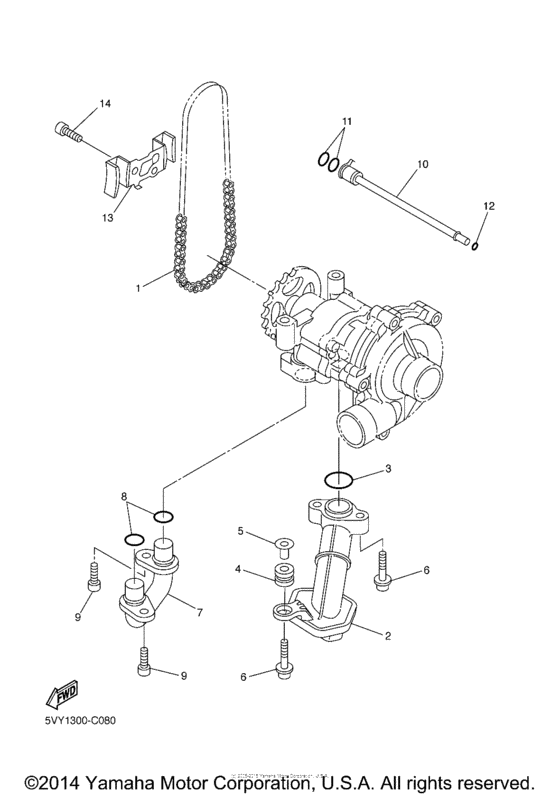

Oil pump Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY5
- Sales region
- United States (California)
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94580-25078-00 Chain (Did25 78Le)78LE |
94580-25078-00 |
from US $10.63 |
||
|
2
|
2
5VY-13410-00-00 Strainer Housing Assy |
5VY-13410-00-00 |
from US $27.20 |
||
|
3
|
3
93210-22298-00 O-Ring |
93210-22298-00 |
from US $1.28 |
||
|
4
|
4
90480-13010-00 Grommet |
90480-13010-00 |
from US $4.19 |
||
|
5
|
5
5VY-13117-00-00 Collar, Distance |
5VY-13117-00-00 |
US $2.83 |
||
|
6
|
6
90110-06060-00 Bolt |
90110-06060-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.70 |
||
|
7
|
7
5VY-13416-00-00 Pipe, Oil 1 |
5VY-13416-00-00 |
from US $40.62 |
||
|
8
|
8
93210-14003-00 O-Ring |
93210-14003-00 |
from US $1.66 |
||
|
9
|
9
90110-06041-00 Bolt |
90110-06041-00 |
US $1.07 |
||
| replacement | |||||
|
9
|
9
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
10
|
10
5VY-1316E-00-00 Pipe, Delivery 5 |
5VY-1316E-00-00 |
from US $54.85 |
||
|
11
|
11
932-10091-65-00
O-Ring
|
932-10091-65-00 |
— | ||
| replacements | |||||
|
11
|
11
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
11
|
11
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
|
12
|
12
932-10066-67-00 O-Ring |
932-10066-67-00 |
from US $1.84 |
||
|
13
|
13
5VY-13898-00-00 Holder |
5VY-13898-00-00 |
from US $16.15 |
||
|
14
|
14
90110-06018-00 Bolt |
90110-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
