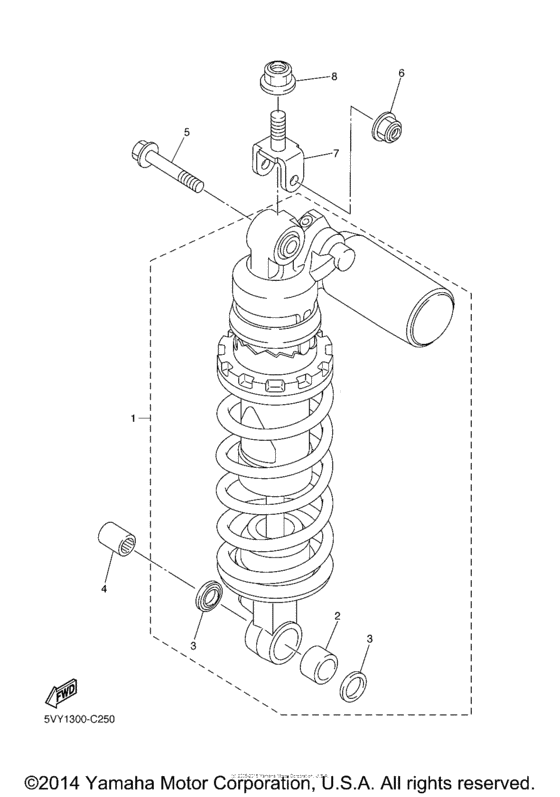

Rear suspension Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY5
- Sales region
- United States (California)
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-22210-10-00 Shock Absorber Assy, Rear |
5VY-22210-10-00 |
from US $854.57 |
||
| replacement | |||||
|
1
|
1
5VY-22210-11-00 Shock Absorber Assy, Rear |
5VY-22210-11-00 |
from US $854.57 |
||
|
2
|
2
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
3
|
3
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
4
|
4
90387-1012A-00 Collar |
90387-1012A-00 |
from US $7.79 |
||
|
5
|
5
90105-10017-00 Bolt, Flange |
90105-10017-00 |
from US $14.45 |
||
|
6
|
6
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
7
|
7
5SL-22219-00-00 Bracket, Upper |
5SL-22219-00-00 |
from US $38.96 |
||
|
8
|
8
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
