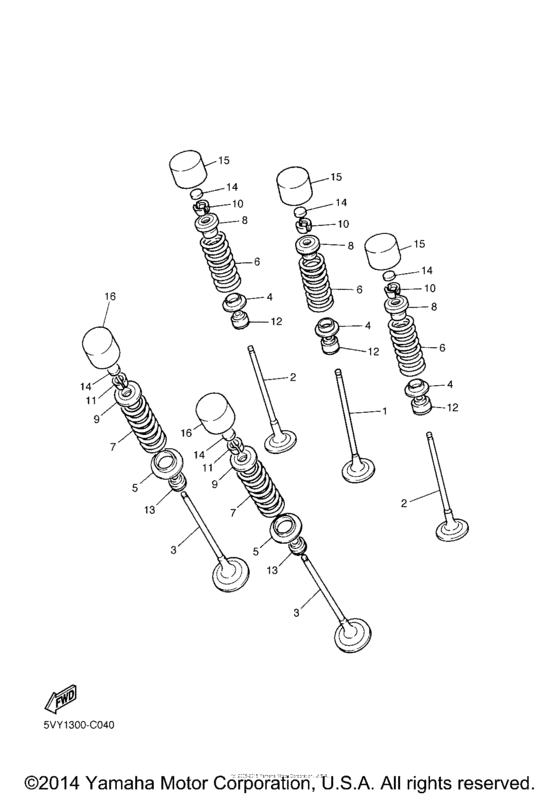

Valve Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY5
- Sales region
- United States (California)
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-12111-00-00
Valve, Intake
|
5VY-12111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
2D1-12111-01-00 Valve, Intake |
2D1-12111-01-00 |
from US $22.67 |
||
|
2
|
2
5VY-12112-00-00
Valve, Intake 2
|
5VY-12112-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2D1-12112-01-00 Valve, Intake 2 |
2D1-12112-01-00 |
from US $23.24 |
||
|
3
|
3
5VY-12121-00-00
Valve, Exhaust
|
5VY-12121-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5VY-12121-01-00 Valve, Exhaust |
5VY-12121-01-00 |
from US $42.01 |
||
|
4
|
4
5NL-12116-00-00 Seat, Valve Spring |
5NL-12116-00-00 |
from US $3.40 |
||
|
5
|
5
3GM-12126-00-00 Seat, Valve Spring 2 |
3GM-12126-00-00 |
from US $2.41 |
||
|
6
|
6
5VY-12113-00-00 Spring, Valve Inner |
5VY-12113-00-00 |
from US $10.77 |
||
|
7
|
7
5VY-12114-00-00 Spring, Valve Outer |
5VY-12114-00-00 |
from US $10.91 |
||
|
8
|
8
5VY-12117-00-00 Retainer, Valve Spring |
5VY-12117-00-00 |
from US $18.99 |
||
|
9
|
9
5VY-12127-00-00 Retainer, Valve Spring |
5VY-12127-00-00 |
from US $18.99 |
||
|
10
|
10
1HX-12118-00-00 Lock, Valve Spring Retainer |
1HX-12118-00-00 |
from US $1.66 |
||
|
11
|
11
1WG-12118-00-00 Valve Spring Retainer Lock |
1WG-12118-00-00 |
from US $1.84 |
||
|
12
|
12
4TV-12119-00-00 Seal, Valve Stem |
4TV-12119-00-00 |
from US $3.98 |
||
|
13
|
13
4SV-12119-00-00 Seal, Valve Stem |
4SV-12119-00-00 |
from US $3.68 |
||
|
14
|
14
1HX-12168-00-00 Pad, Adjusting 2 (1.20)1.20 UR |
1HX-12168-00-00 |
from US $8.78 |
||
|
14
|
14
1HX-12168-20-00 Pad, Adjusting 2 (1.25)1.25 UR |
1HX-12168-20-00 |
from US $7.62 |
||
|
14
|
14
1HX-12168-40-00 Pad, Adjusting 2 (1.30)1.30 UR |
1HX-12168-40-00 |
from US $8.78 |
||
|
14
|
14
1HX-12168-60-00 Pad, Adjusting 2 (1.35)1.35 UR |
1HX-12168-60-00 |
from US $8.78 |
||
|
14
|
14
1HX-12168-80-00 Pad, Adjusting 2 (1.40)1.40 UR |
1HX-12168-80-00 |
from US $6.62 |
||
|
14
|
14
1HX-12168-A0-00 Pad, Adjusting 2 (1.45)1.45 UR |
1HX-12168-A0-00 |
from US $5.89 |
||
|
14
|
14
1HX-12168-F0-00 Pad, Adjusting 2 (1.50)1.50 UR |
1HX-12168-F0-00 |
from US $6.30 |
||
|
14
|
14
1HX-12168-H1-00 Pad, Adjusting 2 (1.55)1.55 UR |
1HX-12168-H1-00 |
from US $6.30 |
||
|
14
|
14
1HX-12168-K1-00 Pad, Adjusting 2 (1.60)1.60 UR |
1HX-12168-K1-00 |
from US $8.78 |
||
|
14
|
14
1HX-12168-M1-00 Pad, Adjusting 2 (1.65)1.65 UR |
1HX-12168-M1-00 |
from US $7.62 |
||
|
14
|
14
1HX-12168-R1-00 Pad, Adjusting 2 (1.70)1.70 UR |
1HX-12168-R1-00 |
from US $6.62 |
||
|
14
|
14
1HX-12168-U1-00 Pad, Adjusting 2 (1.75)1.75 UR |
1HX-12168-U1-00 |
from US $6.62 |
||
|
14
|
14
1HX-12168-W1-00 Pad, Adjusting 2 (1.80)1.80 UR |
1HX-12168-W1-00 |
from US $6.30 |
||
|
14
|
14
1HX-12168-Y1-00 Pad, Adjusting 2 (1.85)1.85 UR |
1HX-12168-Y1-00 |
from US $8.28 |
||
|
14
|
14
1HX-12169-11-00 Pad, Adjusting 2 (1.90)1.90 UR |
1HX-12169-11-00 |
from US $6.62 |
||
|
14
|
14
1HX-12169-31-00 Pad, Adjusting 2 (1.95)1.95 UR |
1HX-12169-31-00 |
from US $6.96 |
||
|
14
|
14
1HX-12169-50-00 Pad, Adjusting 2 (2.00)2.00 UR |
1HX-12169-50-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-70-00 Pad, Adjusting 2 (2.05)2.05 UR |
1HX-12169-70-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-90-00 Pad, Adjusting 2 (2.10)2.10 UR |
1HX-12169-90-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-E0-00 Pad, Adjusting 2 (2.15)2.15 UR |
1HX-12169-E0-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-G0-00 Pad, Adjusting 2 (2.20)2.20 UR |
1HX-12169-G0-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-J0-00 Pad, Adjusting 2 (2.25)2.25 UR |
1HX-12169-J0-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-L0-00 Pad, Adjusting 2 (2.30)2.30 UR |
1HX-12169-L0-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-N0-00 Pad, Adjusting 2 (2.35)2.35 UR |
1HX-12169-N0-00 |
from US $8.78 |
||
|
14
|
14
1HX-12169-T0-00 Pad, Adjusting 2 (2.40)2.40 UR |
1HX-12169-T0-00 |
from US $8.78 |
||
|
15
|
15
3LN-12153-20-00 Lifter, ValveUR BLUE |
3LN-12153-20-00 |
from US $22.24 |
||
|
15
|
15
3LN-12153-30-00 Lifter, ValveUR RED |
3LN-12153-30-00 |
from US $22.24 |
||
|
15
|
15
3LN-12153-09-00 Lifter, Valve (O/s)UR GREEN |
3LN-12153-09-00 |
from US $21.25 |
||
|
16
|
16
3FV-12153-09-00 Lifter, Valve (O/s)UR GREEN |
3FV-12153-09-00 |
from US $27.49 |
||
|
16
|
16
3FV-12153-20-00 Lifter, ValveUR BLUE |
3FV-12153-20-00 |
from US $26.78 |
||
|
16
|
16
3FV-12153-30-00 Lifter, ValveUR RED |
3FV-12153-30-00 |
from US $28.76 |
||
