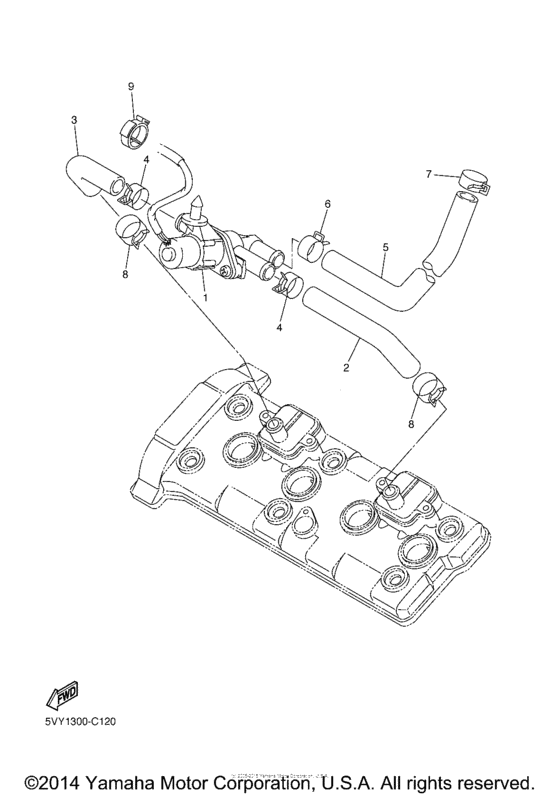

Air induction system Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY4
- Sales region
- USA
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-14840-00-00 Air Cut Valve Ass'y |
5VY-14840-00-00 |
from US $154.90 |
||
|
2
|
2
5VY-14881-00-00 Hose, Bend 1 |
5VY-14881-00-00 |
from US $9.92 |
||
|
3
|
3
5VY-14882-00-00 Hose, Bend 2 |
5VY-14882-00-00 |
from US $8.36 |
||
|
4
|
4
90467-18172-00 Clip |
90467-18172-00 |
from US $1.70 |
||
|
5
|
5
5VY-14883-00-00 Hose, Bend 3 |
5VY-14883-00-00 |
from US $21.25 |
||
|
6
|
6
90467-18172-00 Clip |
90467-18172-00 |
from US $1.70 |
||
|
7
|
7
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
8
|
8
90467-180A0-00 Clip |
90467-180A0-00 |
from US $1.98 |
||
|
9
|
9
90464-30003-00 Clamp |
90464-30003-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90464-28003-00 Clamp |
90464-28003-00 |
from US $1.98 |
||
