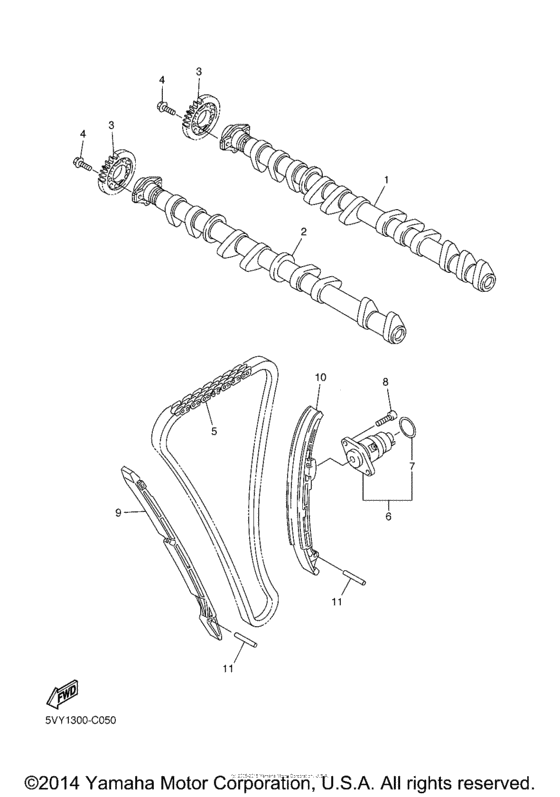

Camshaft & chain Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY4
- Sales region
- USA
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-12170-00-00
Camshaft Assy 1
|
5VY-12170-00-00 |
— | ||
|
2
|
2
5VY-12180-00-00
Camshaft Assy 2
|
5VY-12180-00-00 |
— | ||
|
3
|
3
5VY-12176-00-00 Sprocket, Cam Chain |
5VY-12176-00-00 |
from US $57.47 |
||
| replacements | |||||
|
3
|
3
4C8-12176-00-00 Sprocket, Cam Chain |
4C8-12176-00-00 |
from US $57.47 |
||
|
3
|
3
14B-12176-00-00 Sprocket, Cam Chain |
14B-12176-00-00 |
from US $57.47 |
||
|
4
|
4
90105-07003-00 Bolt, Flange |
90105-07003-00 |
from US $1.84 |
||
| replacement | |||||
|
4
|
4
90105-07006-00 Bolt, Flange |
90105-07006-00 |
from US $1.84 |
||
|
5
|
5
945-91601-22-00 Chain |
945-91601-22-00 |
from US $47.39 |
||
|
6
|
6
5VY-12210-00-00
Tensioner Assy, Cam Chain
|
5VY-12210-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99040-80-00 Tensioner Assy, Cam Chain |
999-99040-80-00 |
from US $134.15 |
||
|
7
|
7
93210-26741-00 O-Ring |
93210-26741-00 |
from US $1.34 |
||
|
8
|
8
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
9
|
9
5VY-12251-00-00 Damper, Chain 1 |
5VY-12251-00-00 |
from US $16.43 |
||
|
10
|
10
5VY-12252-00-00 Damper, Chain 2 |
5VY-12252-00-00 |
from US $53.05 |
||
| replacement | |||||
|
10
|
10
5VY-12252-01-00 Damper, Chain 2 |
5VY-12252-01-00 |
from US $53.05 |
||
|
11
|
11
93607-44190-00 Pin, Dowel |
93607-44190-00 |
from US $5.10 |
||
