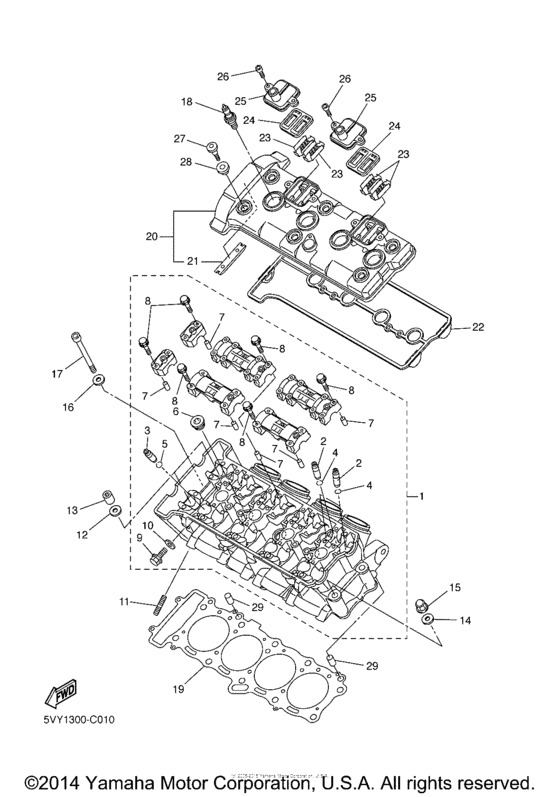

Cylinder head Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY4
- Sales region
- USA
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-11101-00-00 Cylinder Head Assy |
5VY-11101-00-00 |
from US $1,808.40 |
||
| replacement | |||||
|
1
|
1
5VY-11101-20-00 Cylinder Head Assy |
5VY-11101-20-00 |
from US $1,699.90 |
||
|
2
|
2
5VY-11133-10-00 Guide, Valve 1 |
5VY-11133-10-00 |
from US $65.35 |
||
|
3
|
3
5VY-11134-10-00 Guide, Valve 2 |
5VY-11134-10-00 |
from US $63.14 |
||
|
4
|
4
93440-07149-00 Circlip |
93440-07149-00 |
from US $1.98 |
||
|
5
|
5
93440-10153-00 Circlip |
93440-10153-00 |
from US $1.66 |
||
|
6
|
6
90340-18150-00 Plug, Straight Screw |
90340-18150-00 |
from US $6.52 |
||
|
7
|
7
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
8
|
8
90105-06026-00 Bolt, Flange |
90105-06026-00 |
from US $1.56 |
||
|
9
|
9
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
10
|
10
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
11
|
11
95617-08625-00 Bolt, Stud |
95617-08625-00 |
from US $3.83 |
||
|
12
|
12
902-01100-13-00 Washer, Plate |
902-01100-13-00 |
from US $2.69 |
||
| replacement | |||||
|
12
|
12
90201-10033-00 Washer, Plate |
90201-10033-00 |
from US $2.69 |
||
|
13
|
13
90179-10006-00 Nut |
90179-10006-00 |
from US $7.93 |
||
|
14
|
14
902-01100-13-00 Washer, Plate |
902-01100-13-00 |
from US $2.69 |
||
| replacement | |||||
|
14
|
14
90201-10033-00 Washer, Plate |
90201-10033-00 |
from US $2.69 |
||
|
15
|
15
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.39 |
||
|
16
|
16
90201-06016-00 Washer, Plate |
90201-06016-00 |
from US $1.65 |
||
|
17
|
17
91314-06105-00 Bolt, Hexagon Socket Head |
91314-06105-00 |
from US $3.89 |
||
|
18
|
18
94701-00403-00 Cr9Ek Ngk Splug 10Plug, spark (ngk cr9ek) 10 |
94701-00403-00 |
from US $23.48 |
||
| replacements | |||||
|
18
|
18
CR9-EK000-00-00 CR9EK NGK10 |
CR9-EK000-00-00 |
US $168.30 |
||
|
18
|
18
947-01003-95-00 Spark Plug Cr9Ek10 |
947-01003-95-00 |
from US $17.86 |
||
|
19
|
19
5VY-11181-00-00 Gasket, Cylinder Head 1 |
5VY-11181-00-00 |
from US $48.08 |
||
|
20
|
20
5VY-11191-00-00 Cover, Cylinder Head 1 |
5VY-11191-00-00 |
from US $186.52 |
||
| replacement | |||||
|
20
|
20
5VY-11191-02-00 Cover, Cylinder Head 1 |
5VY-11191-02-00 |
from US $186.52 |
||
|
21
|
21
5BE-12241-00-00
Guide, Stopper 2
|
5BE-12241-00-00 |
— | ||
| replacement | |||||
|
21
|
21
5BE-12241-01-00 GUIDE STOPPER 2 |
5BE-12241-01-00 |
from US $14.22 |
||
|
22
|
22
5VY-11193-00-00
Gasket, Head Cover 1
|
5VY-11193-00-00 |
— | ||
| replacement | |||||
|
22
|
22
5VY-11193-10-00 Gasket, Head Cover 1 |
5VY-11193-10-00 |
from US $25.64 |
||
|
23
|
23
5VY-1482K-00-00 Plate |
5VY-1482K-00-00 |
from US $2.55 |
||
|
24
|
24
5SL-14890-00-00 Reed Valve Assy |
5SL-14890-00-00 |
from US $37.99 |
||
|
25
|
25
5VY-14899-00-00 Cap, Case |
5VY-14899-00-00 |
from US $15.30 |
||
| replacement | |||||
|
25
|
25
5VY-14899-01-00 Cap, Case |
5VY-14899-01-00 |
from US $15.30 |
||
|
26
|
26
90110-06118-00 Bolt |
90110-06118-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
27
|
27
90109-066F0-00 Bolt |
90109-066F0-00 |
from US $3.32 |
||
|
28
|
28
4KG-1111G-00-00
Rubber, Mount 1
|
4KG-1111G-00-00 |
— | ||
| replacement | |||||
|
28
|
28
5EA-1111G-00-00 Rubber, Mount 1 |
5EA-1111G-00-00 |
from US $7.28 |
||
|
29
|
29
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
