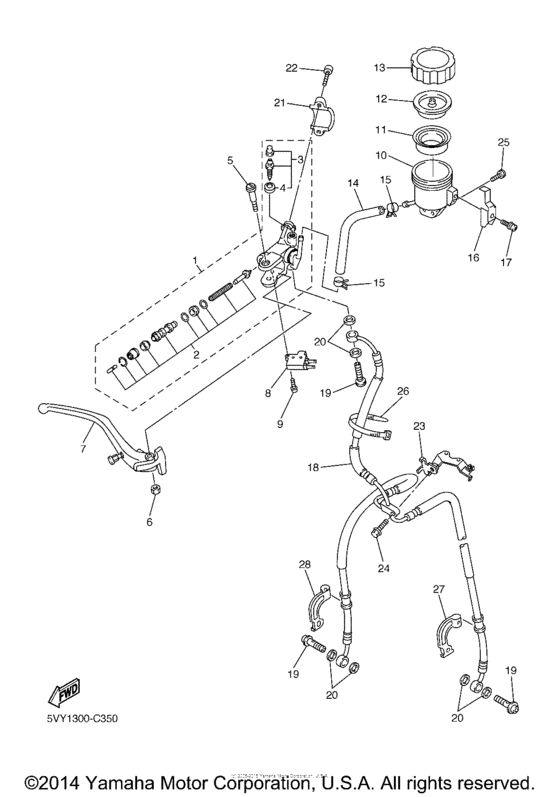

Front master cylinder Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY4
- Sales region
- USA
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-W2587-00-00 Master Cylinder Sub Assy |
5VY-W2587-00-00 |
from US $153.36 |
||
|
2
|
2
5VY-W0041-00-00 Cylinder Kit, Master |
5VY-W0041-00-00 |
from US $62.17 |
||
| replacement | |||||
|
2
|
2
2S3-W0041-00-00 Cylinder Kit, Master |
2S3-W0041-00-00 |
from US $52.24 |
||
|
3
|
3
5VY-W0048-00-00 Bleed Screw Kit |
5VY-W0048-00-00 |
from US $13.74 |
||
|
4
|
4
5VY-25975-00-00 Seal 1 |
5VY-25975-00-00 |
from US $1.70 |
||
|
5
|
5
5VY-2589F-00-00 Bolt, Lever |
5VY-2589F-00-00 |
from US $14.57 |
||
| replacement | |||||
|
5
|
5
5VY-2589F-01-00 Bolt, Lever |
5VY-2589F-01-00 |
from US $15.55 |
||
|
6
|
6
5VS-2586F-00-00 Nut, Cover |
5VS-2586F-00-00 |
from US $1.70 |
||
|
7
|
7
5VY-83922-00-00 Lever 2 |
5VY-83922-00-00 |
from US $46.70 |
||
|
8
|
8
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $19.18 |
||
|
9
|
9
5VS-2585H-00-00 Screw, Set |
5VS-2585H-00-00 |
from US $1.84 |
||
|
10
|
10
5VY-25894-00-00 Tank, Reservoir |
5VY-25894-00-00 |
from US $9.21 |
||
|
11
|
11
5VY-25854-00-00 Diaphragm, Reservoir |
5VY-25854-00-00 |
from US $8.93 |
||
|
12
|
12
5VY-25855-00-00 Bush,diaphragm |
5VY-25855-00-00 |
from US $2.69 |
||
|
13
|
13
5VY-25852-00-00 Cap, Reservoir |
5VY-25852-00-00 |
from US $6.94 |
||
|
14
|
14
5SL-25895-00-00 Hose, Reservoir |
5SL-25895-00-00 |
from US $4.39 |
||
|
15
|
15
90467-090A1-00 Clip |
90467-090A1-00 |
from US $1.56 |
||
|
16
|
16
5VY-2589G-00-00 Holder |
5VY-2589G-00-00 |
from US $2.98 |
||
|
17
|
17
5VY-2589H-00-00 Screw |
5VY-2589H-00-00 |
from US $1.70 |
||
|
18
|
18
5VY-25872-00-00 Hose, Brake 1 |
5VY-25872-00-00 |
from US $131.38 |
||
|
19
|
19
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.55 |
||
|
20
|
20
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
21
|
21
5VS-25867-00-00 Bracket, Master Cylinder |
5VS-25867-00-00 |
from US $10.91 |
||
|
22
|
22
5VS-26332-00-00 Bolt |
5VS-26332-00-00 |
from US $1.56 |
||
|
23
|
23
5VY-23377-00-00 Bracket, Horn |
5VY-23377-00-00 |
from US $13.95 |
||
|
24
|
24
90105-06041-00 Bolt, Flange |
90105-06041-00 |
from US $1.98 |
||
|
25
|
25
90149-05299-00 Screw |
90149-05299-00 |
from US $1.56 |
||
|
26
|
26
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
27
|
27
5VY-25875-00-00 Holder, Brake Hose 1 |
5VY-25875-00-00 |
from US $8.50 |
||
|
28
|
28
5VY-25876-00-00 Holder, Brake Hose 2 |
5VY-25876-00-00 |
from US $8.50 |
||
