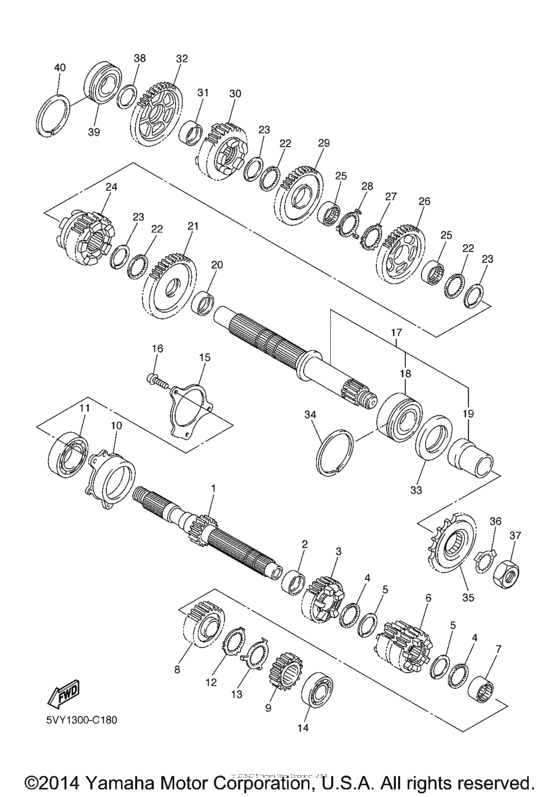

Transmission Diagram Yamaha YZF-R1 R1
- Year
- 2004
- Model code
- 5VY4
- Sales region
- USA
- Базовая модель
- YZF-R1 YZF-R1SC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-17411-00-00 Axle, Main |
5VY-17411-00-00 |
from US $196.19 |
||
| replacement | |||||
|
1
|
1
5VY-17411-01-00 Axle, Main |
5VY-17411-01-00 |
from US $147.73 |
||
|
2
|
2
90387-28003-00 Collar |
90387-28003-00 |
from US $11.19 |
||
|
3
|
3
5VY-17151-00-00 Gear, 5Th Pinion (22T)5TH PINION 22T |
5VY-17151-00-00 |
from US $114.01 |
||
|
4
|
4
90209-25011-00 Washer |
90209-25011-00 |
from US $2 |
||
|
5
|
5
93440-28184-00 Circlip |
93440-28184-00 |
from US $2 |
||
|
6
|
6
5VY-17131-00-00 Gear, 3Rd Pinion (21/23T)3RD PINION 21/23T |
5VY-17131-00-00 |
US $191.83 |
||
|
7
|
7
90387-25007-00 Collar |
90387-25007-00 |
from US $19.41 |
||
|
8
|
8
5VY-17161-00-00 Gear, 6Th Pinion (26T)6TH PINION 26T |
5VY-17161-00-00 |
from US $103.72 |
||
|
9
|
9
5VY-17121-00-00
Gear, 2Nd Pinion (16T)
2ND PINION 16T |
5VY-17121-00-00 |
— | ||
|
10
|
10
5VY-15163-00-00 Housing, Bearing 1 |
5VY-15163-00-00 |
from US $113.98 |
||
|
11
|
11
93306-20652-00 Bearing |
93306-20652-00 |
from US $33.01 |
||
|
12
|
12
90214-25004-00 Washer, Claw |
90214-25004-00 |
from US $4.39 |
||
|
13
|
13
90214-25003-00 Washer, Claw |
90214-25003-00 |
from US $3.68 |
||
|
14
|
14
93306-27208-00 Bearing |
93306-27208-00 |
from US $40.90 |
||
| replacement | |||||
|
14
|
14
93306-27209-00 Bearing |
93306-27209-00 |
from US $40.90 |
||
|
15
|
15
5VY-17446-00-00 Plate |
5VY-17446-00-00 |
from US $17.99 |
||
|
16
|
16
90110-06027-00 Bolt, Hexagon Socket Head |
90110-06027-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90110-06048-00 Bolt, Hexagon Socket Head |
90110-06048-00 |
from US $1.70 |
||
|
17
|
17
5VY-17402-00-00 Drive Axle Assy |
5VY-17402-00-00 |
from US $223.74 |
||
|
18
|
18
93305-20605-00 Bearing |
93305-20605-00 |
from US $139.54 |
||
|
19
|
19
5VY-17442-00-00 Collar, Distance |
5VY-17442-00-00 |
from US $35.99 |
||
|
20
|
20
90387-31003-00 Collar |
90387-31003-00 |
from US $11.76 |
||
|
21
|
21
5VY-17221-10-00 Gear, 2Nd Wheel (33T)2ND WHEEL 33T |
5VY-17221-10-00 |
from US $153.36 |
||
|
22
|
22
90209-28008-00 Washer |
90209-28008-00 |
from US $2.66 |
||
|
23
|
23
93440-31187-00 Circlip |
93440-31187-00 |
from US $2.98 |
||
|
24
|
24
5VY-17261-10-00 Gear, 6Th Wheel (33T)6TH WHEEL 33T |
5VY-17261-10-00 |
from US $146.84 |
||
| replacement | |||||
|
24
|
24
4C8-17261-00-00 Gear, 6Th Wheel (33T)6TH WHEEL 33T |
4C8-17261-00-00 |
from US $174.08 |
||
|
25
|
25
90387-28004-00 Collar |
90387-28004-00 |
from US $11.58 |
||
|
26
|
26
5VY-17241-00-00 Gear, 4Th Wheel (35T)4TH WHEEL 35T |
5VY-17241-00-00 |
from US $101.69 |
||
|
27
|
27
90214-29002-00 Washer, Claw |
90214-29002-00 |
from US $4.68 |
||
|
28
|
28
90214-28002-00 Washer, Claw |
90214-28002-00 |
from US $3.68 |
||
|
29
|
29
5VY-17231-00-00 Gear, 3Rd Wheel (37T)3RD WHEEL 37T |
5VY-17231-00-00 |
from US $102.10 |
||
|
30
|
30
5VY-17251-00-00 Gear, 5Th Wheel (30T)5TH WHEEL 30T |
5VY-17251-00-00 |
from US $165.79 |
||
| replacement | |||||
|
30
|
30
4C8-17251-00-00 Gear, 5Th Wheel (30T)5TH WHEEL 30T |
4C8-17251-00-00 |
from US $165.79 |
||
|
31
|
31
90387-25008-00 Collar |
90387-25008-00 |
from US $10.63 |
||
|
32
|
32
5VY-17211-00-00 Gear,1St Wheel (38T)1ST WHEEL 38T |
5VY-17211-00-00 |
from US $95.19 |
||
|
33
|
33
93102-40330-00 Oil Seal |
93102-40330-00 |
from US $14.88 |
||
|
34
|
34
93440-62032-00 Circlip |
93440-62032-00 |
from US $9.07 |
||
|
35
|
35
3CV-17460-00-00 Sprocket, Drive (17T)17T |
3CV-17460-00-00 |
from US $60.14 |
||
|
36
|
36
902-15302-33-00
Washer, Lock
|
902-15302-33-00 |
— | ||
| replacement | |||||
|
36
|
36
902-15262-41-00 Washer, Lock |
902-15262-41-00 |
from US $10.06 |
||
|
37
|
37
90179-22003-00 Nut |
90179-22003-00 |
from US $13.74 |
||
| replacement | |||||
|
37
|
37
90179-22011-00 Nut |
90179-22011-00 |
from US $12.90 |
||
|
38
|
38
90201-257H0-00 Washer, Plate |
90201-257H0-00 |
from US $1.84 |
||
|
39
|
39
93306-205A2-00 Bearing |
93306-205A2-00 |
from US $37.30 |
||
|
40
|
40
93440-52009-00 Circlip |
93440-52009-00 |
from US $3.98 |
||
