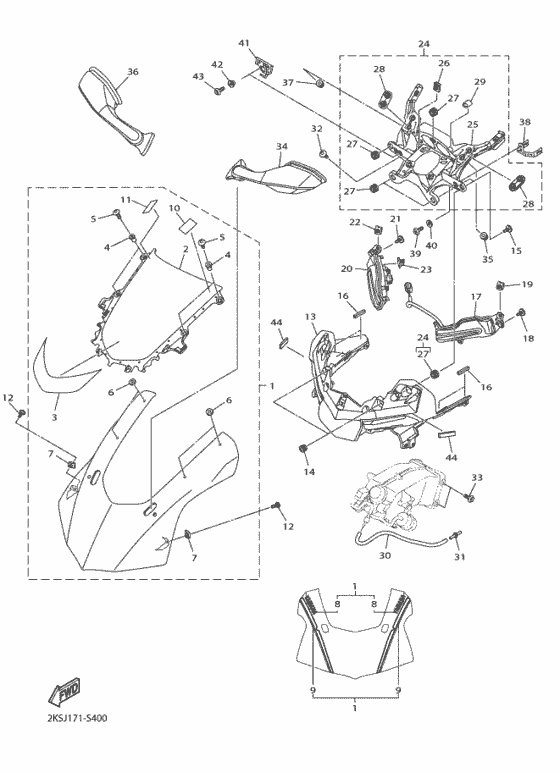

Cowling 1 Diagram Yamaha YZF-R1 R1M
- Year
- 2017
- Colour
- Bluish White Metallic 2
- Model code
- 2KSJ
- Sales region
- Canada (010)
- Базовая модель
- YZF-R1M
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KS-Y283G-60-1X
Body, Front Upper 1
BWM2 |
2KS-Y283G-60-1X |
— | ||
|
2
|
2
2CR-28381-10-00 Windshield |
2CR-28381-10-00 |
from US $92.29 |
||
|
3
|
3
2CR-2832P-00-00 Graphic, 18 |
2CR-2832P-00-00 |
from US $37.17 |
||
|
4
|
4
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
5
|
5
2CR-28333-00-00 Bolt |
2CR-28333-00-00 |
from US $2.55 |
||
|
6
|
6
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
7
|
7
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
7
|
7
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
8
|
8
992-46001-00-00 Emblem, Yamaha |
992-46001-00-00 |
from US $10.20 |
||
|
9
|
9
2KS-2834X-00-00 GRAPHIC SET 1, COWLI |
2KS-2834X-00-00 |
from US $65.35 |
||
|
10
|
10
4B5-2815K-00-00 Label, Notice Windshield 1 |
4B5-2815K-00-00 |
from US $6.52 |
||
|
11
|
11
4B5-2815K-10-00 Label, Notice Windshield 1 |
4B5-2815K-10-00 |
from US $3.20 |
||
|
12
|
12
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
13
|
13
2CR-2835H-00-00 Body, Front Upper 2 |
2CR-2835H-00-00 |
from US $56.92 |
||
|
14
|
14
90480-10003-00 Grommet |
90480-10003-00 |
from US $1.56 |
||
|
15
|
15
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.34 |
||
|
16
|
16
2C0-28247-00-00 Damper 4 |
2C0-28247-00-00 |
from US $1.42 |
||
|
17
|
17
2CR-84301-00-00 Pilot Light Assy 1 |
2CR-84301-00-00 |
from US $185.13 |
||
|
18
|
18
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
19
|
19
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
19
|
19
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
20
|
20
2CR-84302-00-00 Pilot Light Assy 2 |
2CR-84302-00-00 |
from US $185.13 |
||
|
21
|
21
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
22
|
22
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
22
|
22
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
23
|
23
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
24
|
24
2CR-28320-00-00 Leg Shield Stay Kit |
2CR-28320-00-00 |
from US $126.69 |
||
|
25
|
25
2CR-28356-00-00 Stay 1 |
2CR-28356-00-00 |
from US $55.68 |
||
|
26
|
26
90183-060A1-00 Nut, Spring |
90183-060A1-00 |
from US $4.39 |
||
|
27
|
27
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
28
|
28
4C8-26298-00-00 Plate, Mirror Fitting 1 |
4C8-26298-00-00 |
from US $2.69 |
||
|
29
|
29
2CR-22873-00-00 Seal 1 |
2CR-22873-00-00 |
from US $1.42 |
||
|
30
|
30
904-45086-J3-00 Hose (L320) |
904-45086-J3-00 |
from US $4.68 |
||
|
31
|
31
5PS-14568-00-00 Joint |
5PS-14568-00-00 |
from US $1.28 |
||
|
32
|
32
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
33
|
33
90111-06071-00 Bolt, Hex. Socket Button |
90111-06071-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
34
|
34
2CR-26280-10-00 Rear View Mirror Assy (Left) |
2CR-26280-10-00 |
from US $392.65 |
||
|
35
|
35
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
36
|
36
2CR-26290-10-00 Rear View Mirror Assy (Right) |
2CR-26290-10-00 |
from US $381.37 |
||
|
37
|
37
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
38
|
38
2CR-2836J-00-00 Bracket 6 |
2CR-2836J-00-00 |
from US $5.20 |
||
| replacement | |||||
|
38
|
38
2CR-2836J-01-00 Bracket 6 |
2CR-2836J-01-00 |
from US $7.93 |
||
|
39
|
39
92012-06014-00 Bolt, Button Head |
92012-06014-00 |
from US $1.56 |
||
|
40
|
40
90387-06184-00 Collar |
90387-06184-00 |
from US $3.83 |
||
|
41
|
41
2KS-28468-00-00 Bracket 7 |
2KS-28468-00-00 |
from US $10.63 |
||
|
42
|
42
90387-06184-00 Collar |
90387-06184-00 |
from US $3.83 |
||
|
43
|
43
92012-06014-00 Bolt, Button Head |
92012-06014-00 |
from US $1.56 |
||
|
44
|
44
8GE-21852-00-00 Damper |
8GE-21852-00-00 |
from US $2.39 |
||
